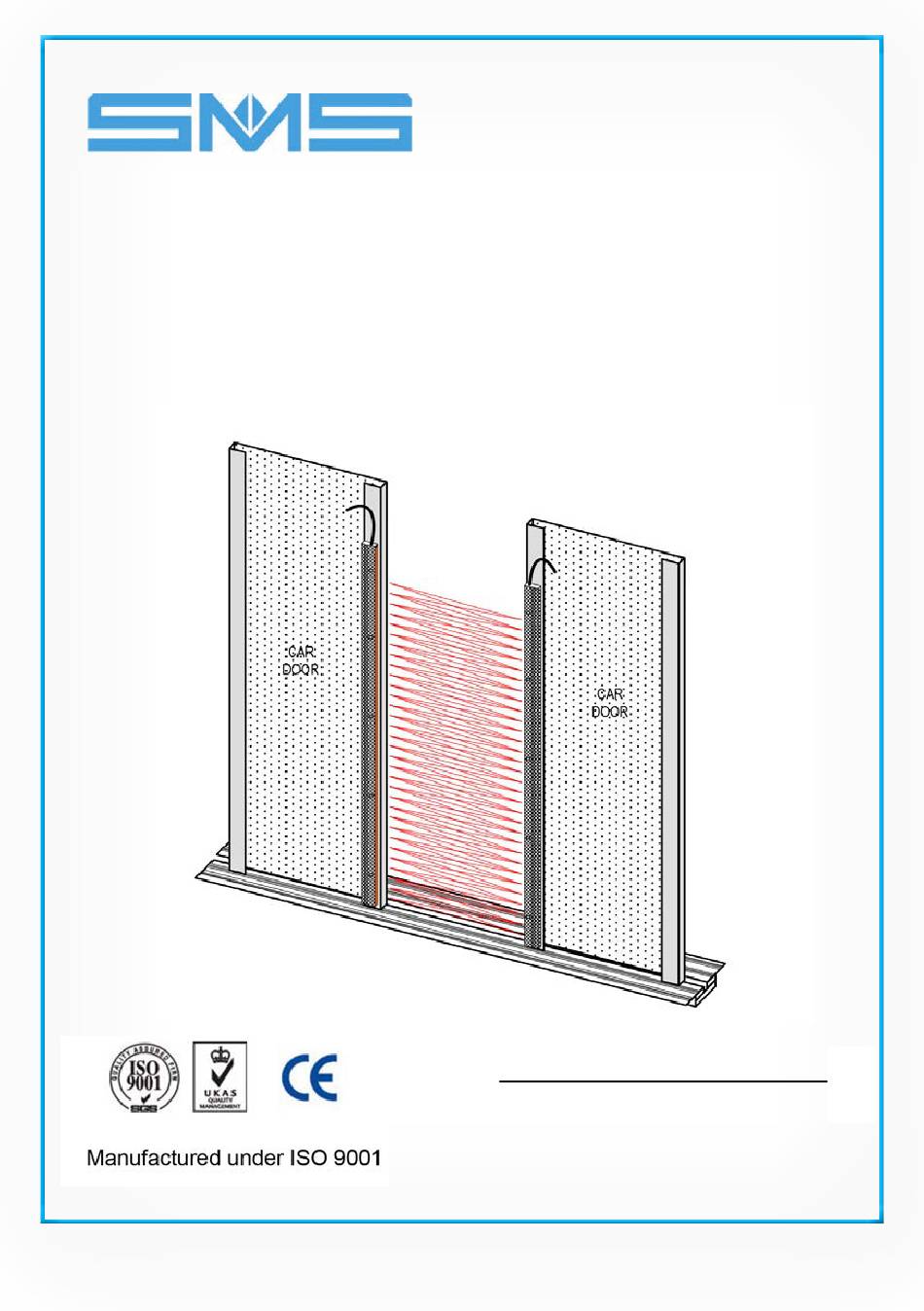

- Page 1 LIFT DOOR CURTAIN User Manual LDCA32-AC3-DC24A LDCA32-AC3-AC220 (EN 81-20) LDCB36-AC3-DC24A (EN 81-20) LDCB36-AC3-AC220 Attention Please read this manual carefully before installation and keep it for future reference Engineered in Italy by SMS 009.UM.LDC-IT REV. 4 5/2019...
- Page 2 Lift Door Curtain LDCA32 LDCB36 TECHNICAL FEATURES (EN81-70 compliance) (EN81-20 compliance) Number of infrared Diodes 61 ms relay output 65 ms relay output Response Time (1A 24Vdc DC1 - 1A 120Vac AC1) (1A 24Vdc DC1 - 1A 120Vac AC1) Beam Number 154-94 106-174 58.8mm...
- Page 3 Lift Door Curtain 1) Securely fix the transmitter and receiver to the car/car doors through the fixing holes with the bolts provided 10*ø3.5 2) Ensure both receiver and transmitter at the same level 3) Fix the power controller on the car top Ensure the steel cover is grounded 4) Power supply connected to INPUT terminal through the right hand hole Output signals...
- Page 4 Lift Door Curtain LDC A32 POWER UNITS DC Power Supply Output terminals 24V DC Power Unit PWS-24 DC24V±20%,3W NC NO COM DC10-30V DC24V Output terminals 220 AC Power Unit AC220V±15%,50/60Hz,3W PWS-220 AC Power Supply LDC B36 POWER UNITS 24V DC Power Unit DC24A DC24V±20%,3W Output terminals...
- Page 5 Lift Door Curtain 220 AC Power Unit Output terminals GREEN AC220V±15%,50/60Hz,3W AC220 AC Power Supply BLACK AC Power Supply 7,8 Input door close signal 9,10 output fault door Buzzer Functions for AC 220 power unit (LDC B36) Buzzer functions Buzzer ON Buzzer OFF Buzzer delay Delay 20s...
- Page 6 Lift Door Curtain EXAMPLE OF BEAM DESIGN 36 DIODES 32 DIODES EN 81-20 · It can check objects ≥ 50mm. · It might not work during the last 20mm while door is closing. 32 DIODES 36 DIODES (EN81-20) A Type horizontal 32 beams A Type horizontal 36 beams B Type declivity 31 beams B Type declivity 35 beams...
- Page 7 Lift Door Curtain PART NUMBER FORMAT LDC A 32 A AC220 POWER AND SYSTEM OUTPUT OPTIONS: -AC230: AC220V ±15%, 50/60HZ, relay output 1NO/1NC -DC24A: 24vdc ±10%, relay output 1NO/1NC (* Other on request) OPENING TYPE: -C3= central (* Other on request) PROFILE: (* Other on request) DIODES NUMBER:...
- Page 8 Do not scratch the front surface to damage the infrared light lens Do not bend or twist the edges. Manuale d’uso: Scannerizza il QR User manual: Scan QR code Via G.Rossa 46-48-50 Loc.Crespellano 40056 Valsamoggia-Bologna-Italy Tel +39-051-969037 Fax +39 051 969303 www.sms-lift.com - e-mail: sms@sms.bo.it Engineered in Italy by SMS...
