Summary of Contents for Scubatech TecLINE R2 TEC

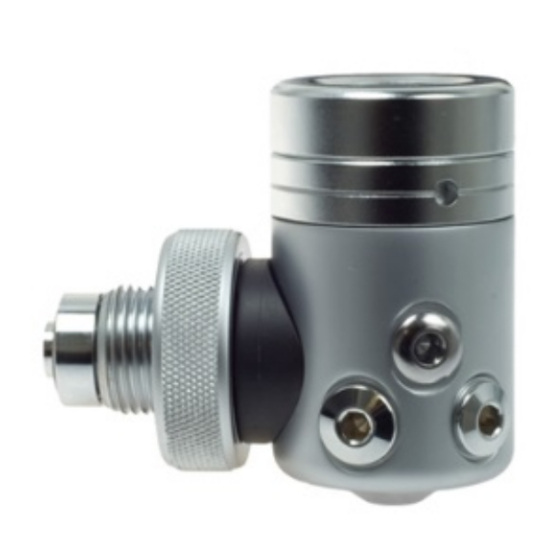

- Page 1 SCUBATECH User Manual Demand regulators Range of models R2 TEC, R2 TEC O2, R2 TEC INT, R4 TEC R4 TEC O2, R4 TEC INT, R5 TEC, V1 ICE V1 ICE INT, V2 TEC1, TEC1 O2, TEC1 OCTO TEC2, TEC2 O2, TEC2 OCTO...
-
Page 2: Table Of Contents
Copyright information These instructions are protected by copyright. All rights reserved. Copying, reproduction, translation or saving in any electronic medium in whole or in part without a written consent of Scubatech is forbidden. Demand Regulator User Manual Series models –... -
Page 3: Introduction
We recommend keeping this user manual for the whole period of using the product. Scubatech demand regulators may be used only in the way presented in this user manual. Scubatech... - Page 4 CAUTION The content of these instructions is based on knowledge available upon its release for printing. Scubatech reserves the right to make modifications in any time. CAUTION Demand regulators were tested for conformity to the requirements of the standard EN 250:2014-08.
-
Page 5: Design And Basic Technical Data
0.9-0.95 MPa. Figure 1. The first stages of pressure reduction of demand regulators The second pressure reduction stages of Scubatech demand regulators are based on a standard, concurrent relief pressure reducing system. They are equipped with a Venturi nozzle with a setpoint adjusted by a diver that allows delivery of maximum flow of breathing gases. - Page 6 In addition to adjustment of the Venturi effect, the second pressure reduction stages of Scubatech demand regulators are equipped with a breathing resistance adjustment knob located on the opposite side of the interstage hose of the diving regulator's box.
-
Page 7: Intended Use
Using demand regulators with nitrox mixtures outside the EU (European Union). Standard Scubatech demand regulators sold to non-member EU countries are produced with the application of materials, assembly procedures and greases that ensure compatibility with nitrox mixtures of the maximum oxygen content of 40 %. -
Page 8: Using In Cold Water
Using demand regulators with nitrox mixtures in the EU (European Union) countries. Scubatech offers additional models of demand regulators specially produced for use with nitrox mixtures of oxygen content over 21%, including the use of oxygen. The above products were tested in accordance with PN-EN 144-3:2005 standards... -
Page 9: Preparing For Use
7. Preparing for use IMPORTANT Scubatech recommends delivering a demand regulator to an authorized seller for connecting accessories, such as: a pressure measurement device, medium pressure tubes and second pressure reduction stages of demand regulators. An authorized seller may also answer to questions regarding the issues presented in these instructions. -
Page 10: The Use During Diving
before diving, perform a routine check of the demand regulator, listen to all the demand regulator's connections for possible air outflow, check if the air feeding the regulator has an unpleasant smell, push the diving regulator's inflate button and check for air outflow that stops after releasing the inflate button, ... - Page 11 after rinsing, reconnect the demand regulator to a pressure cylinder and then clear it, removing possible remaining water from the inside, in case of diving in salt or polluted water, rinsing itself is not enough to clean thoroughly the demand regulator, therefore soaking it in warm fresh water for at least 1 hour is recommended, if possible, ...
-
Page 12: Warranty
Scubatech guarantees to the original buyer that its product is free of any defects in materials or workmanship provided that guidelines regarding the use, maintenance or service are observed pursuant to following conditions. - Page 13 WARRANTY CARD SCUBATECH demand regulator, pressure reducing valve, diving regulator SCUBATECH Ltd. warrants to the original owner proper operation of the demand regulator, pressure reducing valve and the diving regulator for a period of 10 years. This warranty card is valid under the following conditions: ...
- Page 14 CONTROL INSPECTION CARD Serviceman's Technical condition Inspection date surname Signature and stamp assessment...
-
Page 15: Manufacturer Information
11. Manufacturer information SCUBATECH Ltd. ul. Lubieszyńska 2 71-087 Mierzyn Tel./fax: 00 48 914 530 01 e-mail: scubatech@scubatech.pl 12. Notes ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………… ……………………………………………………………………………………………...
