To estimate how much average monthly
power this system should produce in your
area, please use the PV Watts Calculator
found at:
https://pvwatts.nrel.gov/
This System Size= 0.60 kW DC
(also applicable in selected global regions)
1
Check your order to make sure that all parts are included:
GS-MPPT-Zenith-40 Charge Controller
20-Amp MC4 In-Line Fuse
3x GS- STAR-200W Solar Panel
5-ft. Red/Black 10 AWG Cable Pair
2x 15-ft. MC4 Cable
6-in. Red/Black MC4-to-Bare Wire Pair
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦12-Volt Deep-Cycle Battery Bank
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000

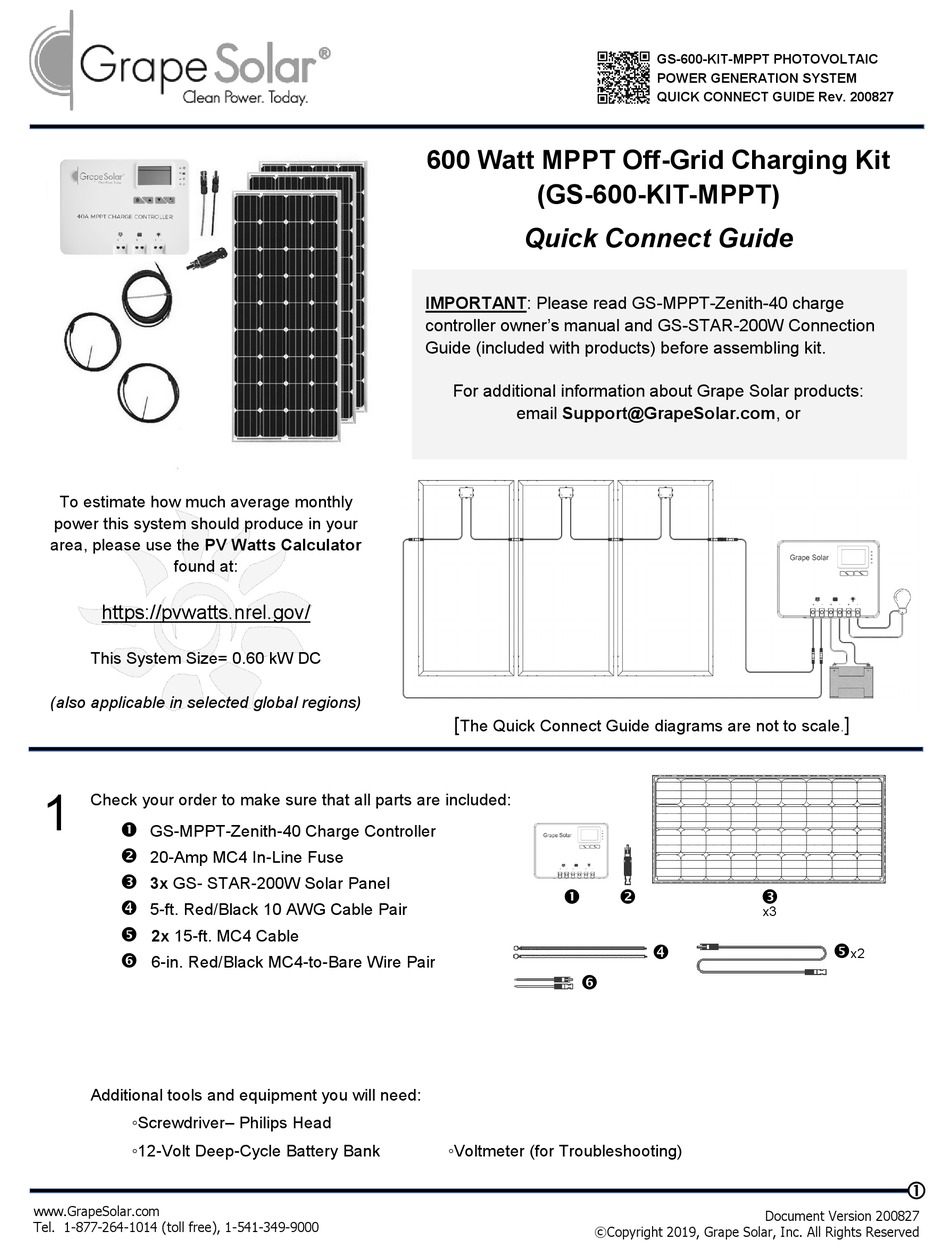

600 Watt MPPT Off-Grid Charging Kit
(GS-600-KIT-MPPT)
Quick Connect Guide
IMPORTANT: Please read GS-MPPT-Zenith-40 charge
controller owner's manual and GS-STAR-200W Connection
Guide (included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
[
The Quick Connect Guide diagrams are not to scale
◦Voltmeter (for Troubleshooting)
©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-600-KIT-MPPT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 200827
x3
Document Version 200827
]
.
x2
Advertisement
Table of Contents
Related Manuals for Grape Solar GS-600-KIT-MPPT
Summary of Contents for Grape Solar GS-600-KIT-MPPT
- Page 1 6-in. Red/Black MC4-to-Bare Wire Pair Additional tools and equipment you will need: ◦Screwdriver– Philips Head ◦12-Volt Deep-Cycle Battery Bank ◦Voltmeter (for Troubleshooting) www.GrapeSolar.com Document Version 200827 Tel. 1-877-264-1014 (toll free), 1-541-349-9000 ©Copyright 2019, Grape Solar, Inc. All Rights Reserved...
- Page 2 On the open positive end of the triad, connect a 20-amp in-line fuse . www.GrapeSolar.com Document Version 200827 Tel. 1-877-264-1014 (toll free), 1-541-349-9000 ©Copyright 2019, Grape Solar, Inc. All Rights Reserved...
- Page 3 Proper fuses or breakers should be used to comply with all local and national codes. Contact Grape Solar for specific recommendations. All batteries used for this system should be identical. Do not mix battery types or sizes. Do not mix old batteries with new batteries.
