Grape Solar GS-200-KIT-BT Quick Connect Manual

1

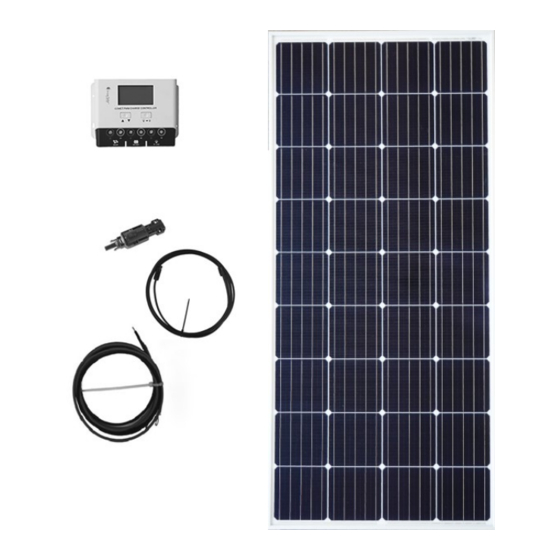

Check your order to make sure that all parts are included:

GS-PWM-Comet 40 Charge Controller

5-Foot Ring-lug Cable, Red

5-Foot Ring-lug Cable, Black

Black 15-foot MC4 Cable

20-Amp MC4 In-Line Fuse

GS- STAR-200W Solar Panel
Additional tools and equipment you will need:
◦Screwdriver– Philips Head
◦12-Volt Deep-Cycle Battery Bank
2
Mount the solar panel  so that it is facing due South at approximately the same angle as your latitude. The
ideal area has full sun and no shading. If the following connections are made during daylight, cover the panel
with cardboard, cloth, or a similar opaque material so that the panel does not output power.
3
Connect the wire end of the red battery cable  to the
"+BATTERY" terminal on the back of the charge
controller . Connect the wire end of the 5-foot black
cable  to the "-BATTERY" terminal. A Phillips head
screwdriver can be used to loosen and tighten the
screw clamps onto the wires.
Attach the ring lug end of the red cable  to the
positive terminal of a 12V deep cycle battery. Attach
the ring lug end of the black cable  to the negative
www.GrapeSolar.com
Tel. 1-877-264-1014 (toll free), 1-541-349-9000
200 Watt Off-Grid Charging Kit
(GS-200-KIT-BT)
Quick Connect Guide
IMPORTANT: Please read GS-PWM-COMET-40 charge
controller owner's manual and GS-STAR-200W connection
guide (both included with products) before assembling kit.
For additional information about Grape Solar products:
email Support@GrapeSolar.com, or
call 1-877-264-1014 for live telephone support.
  
◦Wire Stripper/Cutter
◦Voltmeter (for Troubleshooting)

©Copyright 2019, Grape Solar, Inc. All Rights Reserved
GS-200-KIT-BT PHOTOVOLTAIC
POWER GENERATION SYSTEM
QUICK CONNECT GUIDE Rev. 200722
 
[
diagrams not to scale]
 
*
12V deep cycle battery
not included with kit
Document Version 200722


