Ashly XR-2001 Technical Notes & Specifications

XR-2001 Stereo 3-Way/Mono 4/5-Way Crossover
ARCHITECTS SPECIFICATIONS

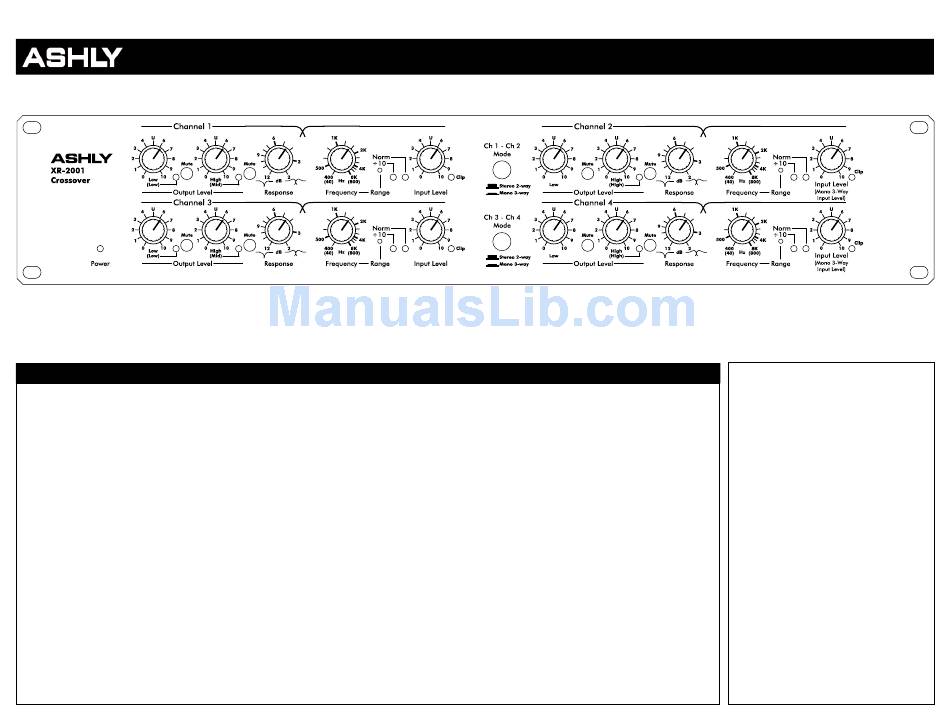

XR-2001
The unit shall be a stereo three-way 24dB per
octave electronic crossover in a two rack space
metal chassis. This same unit shall also be con-
figurable as a four-channel two-way electronic
crossover. The unit shall have separate front panel
input level controls on all channels for interfac-
ing with broad range of nominal system levels.
Unity gain operation must be achievable by setting
these controls at the "U" position. Each of the unit's
channels shall have independent, infinitely variable
adjustment of crossover frequency with controls
located on the front panel. This control shall pro-
vide a total range of 200:1 when used in conjunc-
tion with the unit's adjacent Range switch. There
shall be a Response control calibrated in decibels
on each channel to adjust the dampng of that filter
at the crossover point, thus allowing variable sys-
tem response adjustment to specific site require-
ments. The unit shall have separate clip indicators
to monitor all internal amplifiers for any possible
overload conditions. Each channel of the crossover
unit shall have a separate output level control and
mute switch located on the front panel. There shall
be separate inputs and outputs for each channel
on 1/4" TRS phone jacks and XLR connectors, any
of which may be used balanced or unbalanced. In
addition, there shall also be an independent mono
summed output labeled MONO LOW OUT (on a sep-
arate 1/4" TRS jack and an XLR jack). The cross-
over must be made in America and covered under a
limited full Five Year warranty. The shipping weight
shall be sixteen pounds, with an overall depth of
eight inches. The crossover shall be the Ashly model
XR-2001, manufactured by Ashly Audio Inc. of
Rochester, New York. No other unit shall be accept-
able unless data submitted from an independent
test laboratory verifies that the above specifications
are fully met or exceeded.
TECHNICAL NOTES & SPECIFICATIONS
Features
• 5-Year Worry-Free Warranty
• 24dB Per Octave Slopes
• Variable Filter Response
Allows Tuning-In Linkwitz-
Riley or Other Filter
Performances
• Output Mute Switches
• XLR and 1/4" Inputs and
Outputs
• 20Hz Third Order Hi-Pass
Filter
• Extra Wide Tuning Range
• Peak Overload Warning
Lights
• Tamper-Proof Security Covers
• Safety/Compliance: cTUVus/CE, RoHS
