SOFTSTARTUK LV-AP Manual

Remote Keypad & Mounting Kit
1

Description

The remote keypad can be mounted up to 3 metres away from the soft starter. The
keypad is rated IP65 when mounted correctly in accordance with these instructions.
The keypad connects to the soft starter via the DB9 connector on a hardware
expansion card. A hardware expansion card must be installed to use the remote
keypad with the starter. Separate kits are available with a dedicated keypad
connector expansion card, or with no expansion card for applications already using
another smart card.
2

Packing List

1 x Remote keypad
1 x Keypad connector expansion card
(selected kits)
1 x Cable, DB9
1 x Gasket, foam
1 x Instruction sheet
3

Installing the Expansion Card

WARNING
For your safety, isolate the soft starter from mains voltage before attaching
or removing accessories.
WARNING
Inserting foreign objects or touching the inside of the starter while the
expansion port cover is open may endanger personnel, and can damage
the starter.

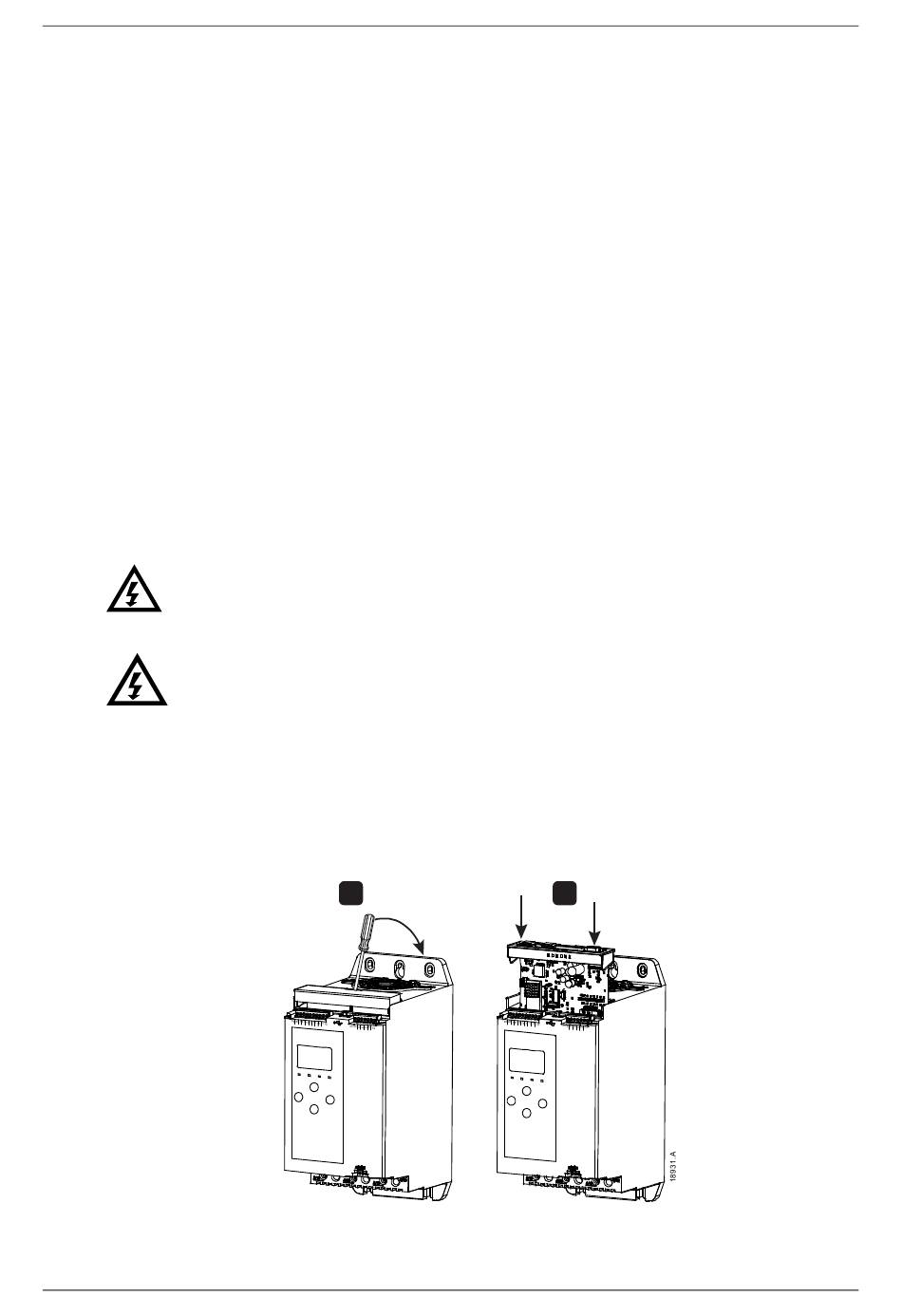

1. Push a small flat-bladed screwdriver into the slot in the centre of the expansion
port cover, and ease the cover away from the starter.
2. Line up the card with the expansion port. Gently push the card along the guide
rails until it clicks into the starter.
710-19143-00A
1
4 x M3 x 16 Screw
4 x M3 Flat washer
4 x M3 Spring washer
4 x M3 Nut
2 x Jack screw
2
1/4
