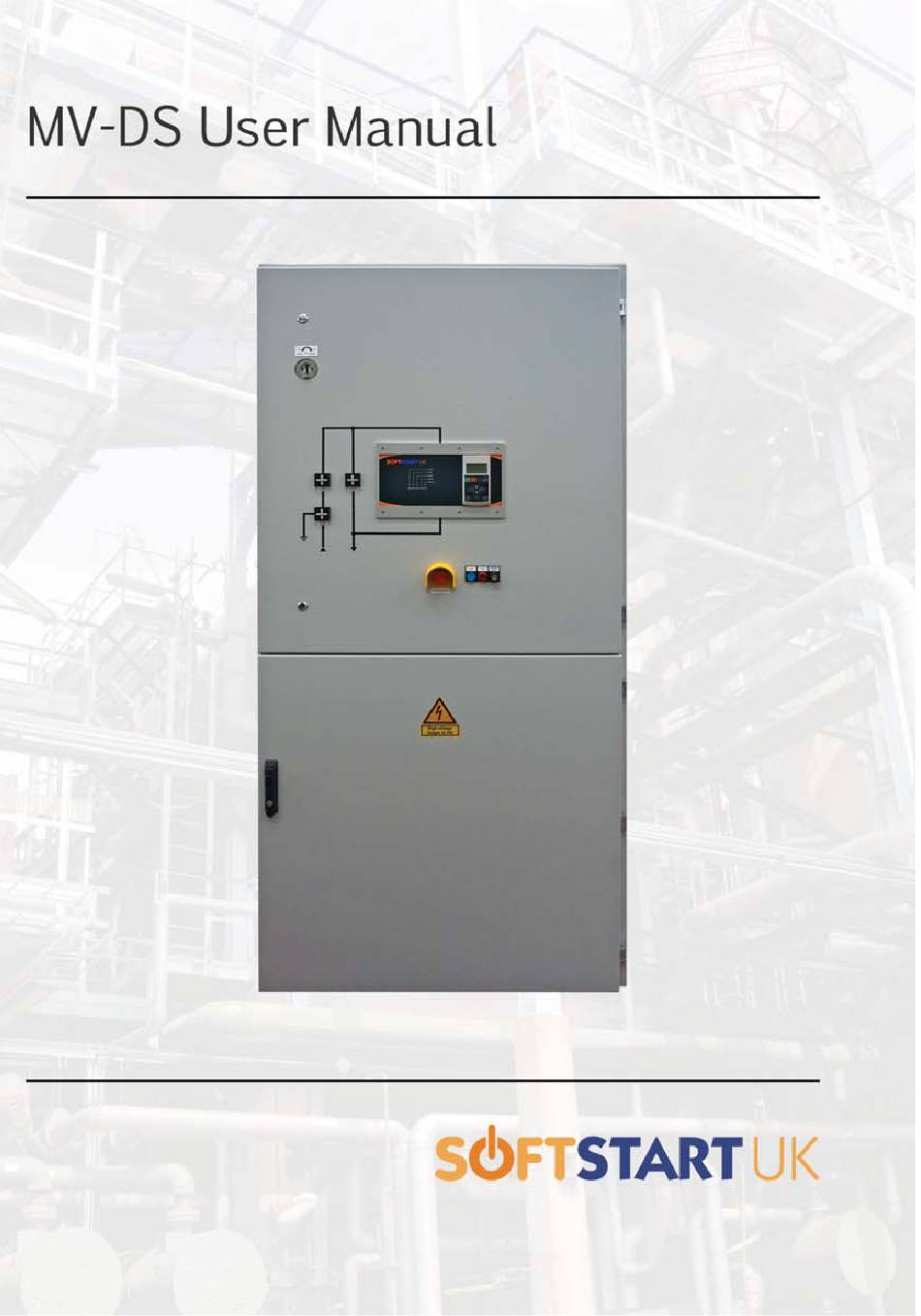

SOFTSTARTUK MV-DS User Manual

Soft starters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV-DS and is the answer not in the manual?

Questions and answers

Related Manuals for SOFTSTARTUK MV-DS

Summary of Contents for SOFTSTARTUK MV-DS

  • Page 2: Table Of Contents

    11.1. Start, Stop and Reset Commands ........................46 11.2. Using the Soft Starter to Control a Motor ......................46 11.3. Using the MV-DS to Control a Slip-Ring Motor ....................46 11.4. Operating States ..............................49 11.5. Motor Protection..............................50 11.6.
  • Page 3 Contents Softstart UK Appendix..........................59 14.1. Parameter Defaults ............................. 59 14.2. Accessories ................................ 62 2/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 4: About This Manual

    Provides helpful information. 1.1. User Manual Version This user manual (710-15811-00B) is compatible with MV-DS soft starters using version 1.29 control software and version 2.3x interface software. For other software versions, please contact Softstart UK for the correct user manual.

  • Page 5: Caution Statements

    Follow this manual and local electrical safety codes. SHORT CIRCUIT The MV-DS is not short circuit proof. After severe overload or short circuit, the operation of the MV-DS should be fully tested by an authorised service agent. GROUNDING AND BRANCH CIRCUIT PROTECTION It is the responsibility of the user or person installing the MV-DS to provide proper grounding and branch circuit protection according to local electrical safety codes.

  • Page 6: General Description

    3.1. Overview The MV-DS provides compact and robust soft start solutions for control of medium voltage motors. MV-DS soft starters provide a complete range of motor and system protection features and have been designed for reliable performance in the most demanding installation situations.

  • Page 7: Key Features

    Softstart UK 3.3. Key Features MV-DS soft starters offer several special functions to ensure ease of use and to provide optimal motor control in all environments and applications. Customisable Protection The MV-DS offers comprehensive protection to ensure safe operation of the motor and soft starter. The protection characteristics can be customised extensively to match the exact requirements of the installation.

  • Page 8: Model Code

    0200 = 200 A @ AC53b 4-20 : 1780 0230 = 230 A @ AC53b 4-20 : 1780 0321 = 321 A @ AC53b 4-20 : 1780 0500 = 500 A @ AC53b 4-20 : 1780 710-15811-00B – MV-DS User Manual (V02~V06) 7/64...

  • Page 9: Specifications

    (97) (478.4) NOTE For models MV-DS-xxxxV02 to MV-DS-xxxxV04, these dimensions apply up to 321 A. For the same models with current ratings of 500 A, the MV-DS-xxxxV06 dimensions apply. NOTE In addition to the dimensions of the soft starter power assembly, an enclosure must allow space for the following required components: MV-DS soft starters must always be installed with a main contactor and bypass contactor.

  • Page 10: General Technical Data

    MV-DS-xxxxV04 ......................4.2 kV Phase-phase MV-DS-xxxxV06 ......................6.6 kV Phase-phase Rated Frequency (fr) ..........................50/60 Hz Rated lightning impulse withstand voltage (U MV-DS-xxxxV02 ~ V04 ........................45 kV MV-DS-xxxxV06 ..........................45 kV Rated power frequency withstand voltage (U MV-DS-xxxxV02 ~ V04 ........................11.5 kV MV-DS-xxxxV06 ..........................
  • Page 11 Surges 1.2/50 μs (main and control circuits) ..........2 kV line to earth, 1 kV line to line Voltage dip and short time interruption (safe shutdown) ................ 5000 ms Standards Approvals ............................EMC EU Directive Short circuit current, with appropriate R rated fuses fitted. Excludes contactors and/or circuit breakers. 10/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 12: Installation

    Softstart UK Installation Installation NOTE The MV-DS soft starter should only be installed in a restricted access location suitable for electrical equipment. NOTE Ensure that the equipment room is clean and relatively dust-free before unpacking and installing the MV-DS soft starter. In particular, beware of concrete dust as it may cause corrosion.

  • Page 13: Mounting Instructions - Controller

    (33.15) (26.10) (2.70) NOTE For models MV-DS-xxxxV02 to MV-DS-xxxxV04, these dimensions apply up to 321 A. For the same models with current ratings of 500 A, the MV-DS-xxxxV06 dimensions apply. 5.2. Mounting Instructions - Controller The controller is secured into place using ten M4 nuts, affixed to the studs on the back of the controller.

  • Page 14: Power Terminations

    (4.19) (6.46) (8.72) (10.55) (10.55) (10.55) NOTE For models MV-DS-xxxxV02 to MV-DS-xxxxV04, these dimensions apply up to 321 A. For the same models with current ratings of 500 A, the MV-DS-xxxxV06 dimensions apply. 710-15811-00B – MV-DS User Manual (V02~V06) 13/64...

  • Page 15: Earth Terminations

    (mm) 5.6. Wiring Terminations on the Controller Control Wiring The MV-DS has three fixed inputs for remote control. These inputs should be controlled by contacts rated for low voltage, low current operation (gold flash or similar). Two-wire control Three-wire control...

  • Page 16: Wiring Terminations On The Power Interface Board

    Summation method ground current measurement Switch settings for summation method ground current measurement Line CT ratio Switch setting 1000:1 1100 710-15811-00B – MV-DS User Manual (V02~V06) 15/64...
  • Page 17 Individual phase inputs to Power Interface PCB (1000:1) Ground current input to Power Interface PCB Example settings for S1 = 1100 NOTE Switch 1 is closest to the control terminal connectors. Switch 4 is closest to the CT connectors. 16/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 18: Current Transformer Internal Wiring

    Current Transformer Internal Wiring Summation Ground Fault Method (Standard) The MV-DS current transformers (CTs) are installed and pre-wired on the power assembly. The CT wiring is configured for summation of the ground fault current measurement. Standard wiring for MV-DS current transformers, using summation ground fault method...
  • Page 19 Place a wire link between terminals GF1(A), GF2(A) on Rail X11. The CT wiring is now configured for residual ground fault current measurement. Wiring for MV-DS current transformers, using residual ground fault method L11 L12 L21 L22 L31 L32 GF1 GF2...

  • Page 20: Power Circuits

    MV/LV control supply transformer Main Contactor The MV-DS must always be installed with a main contactor. Select a contactor with an AC3 rating greater than or equal to the full load current rating of the connected motor. The main contactor is associated with terminals L1, L2, L3 on the supply side of the soft starter. The coil is associated with output terminals 13, 14 of the MV-DS (refer to Power Circuit Configuration on page 20).
  • Page 21 Softstart UK Power Circuit Configuration MV-DS power circuit with main contactor, bypass contactor, main isolator/ earth switch, R Rated fuses and control supply. Configured for four-wire start/ stop control. Models V02 to V06 must be installed with backup/ R-rated fuses.

  • Page 22: Internal Wiring -X10

    130 VAC A2(2) to A2-3(2) 130 VAC 220 VAC A2(2) to A2-1(2) 220 VAC 230 VAC A3, A2 A2(2) to A2-2(2) 230 VAC A3(2) to 13(2) 240 VAC A2(2) to A2-3(2) 240 VAC 710-15811-00B – MV-DS User Manual (V02~V06) 21/64...

  • Page 23: Keypad And Feedback

    Starter status User programmable screen Motor temperature Current Motor power Voltage Last start information Date and time Performance graphs SCR conduction Refer to Operating Feedback on page 51, for further details. 22/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 24: Configuration

    Configuration 8.1. Programming Menu The Programming Menu lets you view and change programmable parameters that control how the MV-DS operates. You can access the Programming Menu at any time, including while the soft starter is running. Any changes to the start profile take effect immediately.

  • Page 25: Standard Menu

    Softstart UK 8.2. Standard Menu The standard menu provides access to commonly used parameters, allowing the user to configure the MV-DS as required for the application. For details of individual parameters, refer to Parameter Descriptions on page Motor Data-1 Motor Full Load Current...

  • Page 26: Extended Menu

    Softstart UK Configuration 8.3. Extended Menu The extended menu gives access to all of the MV-DS's programmable parameters. Motor Data-1 Motor Full Load Current Locked Rotor Time Locked Rotor Current Motor Service Factor Start/Stop Modes-1 Start Mode Start Ramp Time...
  • Page 27 Graph Minimum Adjustment Mains Reference Voltage Motor Data-2 Reserved Motor FLC-2 Reserved Reserved Reserved Start/Stop Modes-2 Start Mode-2 Start Ramp-2 Initial Current-2 Current Limit-2 Reserved Kickstart Time-2 Kickstart Level-2 Stop Mode-2 Stop Time-2 26/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 28: Load/Save Settings

    Load parameter settings from an internal file Save the current parameter settings to an internal file In addition to the factory default values file, the MV-DS can store two user-defined parameter files. These files contain default values until a user file is saved.

  • Page 29: Parameter Descriptions

    Sets the level of the kickstart current. Description: CAUTION Kickstart subjects the mechanical equipment to increased torque levels. Ensure the motor, load and couplings can handle the additional torque before using this feature. 28/64 710-15811-00B – MV-DS User Manual (V02~V06)
  • Page 30 4A – Excess Start Time Excess start time is the maximum time the MV-DS will attempt to start the motor. If the motor does not transition to Run mode within the programmed limit, the starter will trip. Set for a period slightly longer than required for a normal healthy start.
  • Page 31 4E, 4F – Instantaneous Overcurrent The MV-DS can be configured to trip if the average current of all three phases exceeds a specified level while the motor is running. Refer to 4U, 4V – Instantaneous Overcurrent Stage 2 on page 31 for more information and examples.
  • Page 32 4U, 4V – Instantaneous Overcurrent Stage 2 The MV-DS has two instantaneous trip functions, stage 1 and 2. These protection functions are configured to be complementary. Stage 1 must be configured to protect the motor against a locked rotor (shearpin) situation during run mode.
  • Page 33 Instantaneous Overcurrent - Stage 2 (4U) to trip main breaker Thermal model curve Motor operation (shaded area of graph) 07249.D Current 5 Auto-Reset Trips (Reserved) This parameter group is reserved for future use. 32/64 710-15811-00B – MV-DS User Manual (V02~V06)
  • Page 34 Softstart UK Configuration 6 Inputs The MV-DS has two programmable inputs, which allow remote control of the soft starter. 6A – Input A Function Motor Set Select The MV-DS can be configured with two separate sets Options: of motor data.
  • Page 35 Remote mode. The Force Comms Trip and Local/Remote commands are always enabled. 7 Outputs The MV-DS has three programmable outputs, which can be used to signal different operating conditions to associated equipment. 7A – Relay A Function Relay A is not used.
  • Page 36 7M – Low Current Flag The MV-DS has low and high current flags to give early warning of abnormal operation. The current flags can be configured to indicate an abnormal current level during operation, between the normal operating level and the undercurrent or instantaneous overcurrent trip levels.
  • Page 37 7O – Motor Temperature Flag The MV-DS has a motor temperature flag to give early warning of abnormal operation. The flag can indicate that the motor is operating above its normal operating temperature but lower than the overload limit.
  • Page 38 8H User Screen - Bottom Right Default: Hours Run 8I, 8J, 8K, 8L – Performance Graphs The MV-DS has a real-time performance graph to report the behaviour of critical operating parameters. Parameter 8I Graph Data Current (% FLC) (default) Current as a percentage of motor full load current.
  • Page 39 Description: 9 Motor Data-2 The MV-DS can support two different starting and stopping motor data sets. To select the secondary motor data set, a programmable input must be configured to parameter set selection (parameters 6A and 6F) and the input must be active when the soft starter receives a start signal.
  • Page 40 Programming Menu. Read Only Prevents users altering parameter values in the Programming Menu. Parameter values can still be viewed. Selects whether the controller will allow parameters to be changed via the Description: Programming Menu. 710-15811-00B – MV-DS User Manual (V02~V06) 39/64...
  • Page 41 16J Starter Communication 16K Network Communication 16L Reserved 16M Battery/Clock 16N Ground Fault 16O~16U Reserved 16V Undervoltage 16W Overvoltage 20 Restricted These parameters are restricted for Factory use and are not available to the user. 40/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 42: Commissioning

    Open the Commissioning Menu. Run Simulation Scroll to Run Simulation and press Ready Apply Start Signal Press START or activate the start input. The MV-DS simulates its Run Simulation pre-start checks and closes the main contactor relay. The Run Pre-Start Checks LED flashes.

  • Page 43: Input/Output Status

    Thermistor: 0 RTDs A–>G:OOOOOOO S = Shrt H=Hot C=Cld O=Opn NOTE The use of RTDs is not supported by this product and this screen will always indicate 0 (ie Open) for RTDs A->G. 42/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 44: Reset Thermal Models

    The MV-DS's advanced thermal modelling software constantly monitors the motor's performance. This allows the MV-DS to calculate the motor's temperature and ability to start successfully at any time. The thermal model for the active motor can be reset if required.

  • Page 45: Low Voltage Test Mode

    Low Voltage Test Mode The MV-DS can be connected to a low voltage motor ( 500 VAC) for testing. This allows the user to thoroughly test the soft starter and its associated power and control circuits. The low voltage test mode provides a means of testing the soft starter's configuration without requiring a full medium voltage test facility.

  • Page 46: Monitoring

    The software is compatible with all Softstart UK medium voltage soft starters using control software version 1.29 or later. For further information, or to download the software, visit www.softstartuk.com. Performance Counters The performance counters store statistics on the starter's operation:...

  • Page 47: Operation

    The LCL/RMT button controls whether the MV-DS will respond to local control (via the controller) or remote control (via the remote inputs). The Local LED on the controller is on when the soft starter is in local control mode and off when the soft starter is in remote control mode.
  • Page 48 For this installation to function correctly, only use the constant current start method (parameter 2A Start Mode). To use the secondary motor settings, parameter 12B Motor Data-2 Ramp must be set to 'Dual Ramp'. 710-15811-00B – MV-DS User Manual (V02~V06) 47/64...
  • Page 49 Relay outputs 61, 62, 64 Relay output C C73~C74 Bypass contactor feedback signal Motor thermistor input 13~14 Main contactor K1 Analog output 23~24 Bypass contactor K2 33~34 Run relay output 43~44 Fan control output 48/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 50: Operating States

    Softstart UK Operation 11.4. Operating States Start and Run States The MV-DS soft starter has six operating states, and performs the following actions in each state: Starter State Starter actions Not ready Control power is on. The starter may be in Restart Delay mode or waiting for the motor to cool down before allowing a start.

  • Page 51: Motor Protection

    11.5. Motor Protection Motor, System and Soft Starter Protection Mechanisms The MV-DS incorporates extensive protection features to ensure safe operation of the motor, system and soft starter. Most protection features can be customised to suit the installation. Use parameter group 4 Protection Settings to control the situation where the protections will activate and parameter group 16 Protection Action to select the soft starter's response.

  • Page 52: Operating Feedback

    Ready M1 000% 000.0kW Programmable screen The MV-DS's user-programmable screen can be configured to show the most important information for the particular application. Use parameters 8E to 8H to select which information to display. Ready 00000 kWh 00000hrs Motor Temperature The temperature screen shows which motor data set is in use, and the temperature of the motor as a percentage of total thermal capacity.
  • Page 53 The performance graph provides a real-time display of operating performance. Use parameters 8I~8L to select which information to display. 0000 A 0%-400% SCR Conduction Bargraph The SCR conduction bargraph shows the level of conduction on each phase. L1 Cond L2 Cond L3 Cond 52/64 710-15811-00B – MV-DS User Manual (V02~V06)

  • Page 54: Troubleshooting

    Trip Log and Event Log. 12.1. Protection Responses When a protection condition is detected, the MV-DS will write this to the event log and may also trip or issue a warning. The soft starter's response depends on the Protection Action setting (parameter group 16).
  • Page 55 Check for other equipment in the area that could be affecting the mains supply, particularly variable speed drives and switch mode power supplies (SMPS). If the MV-DS is connected to a generator set supply, the generator may be too small or could have a speed regulation problem.
  • Page 56 Check the DIP switch settings on the interface PCB. Refer to Ground Current CT Configuration. This trip is not adjustable. The MV-DS has tripped on an internal fault. Contact your local supplier with the fault Internal fault code (X). Related parameters: None During pre-start checks the starter has detected a phase loss as indicated.
  • Page 57 Check that the main contactor closes when a start command is given, and remains closed until the end of a soft stop. Check MV-DS fuses and confirm that all three mains supply phases are present. This trip is not adjustable.

  • Page 58: General Faults

    Erratic motor operation. The SCRs in the MV-DS require at least 5 A of current to latch. If you are testing the soft starter on a motor with full load current less than 5 A, the SCRs may not latch correctly.

  • Page 59: Maintenance

    MV Insulation tester 13.4. Thermal Image After completing commissioning of the MV-DS and after the motor has been running fully loaded, take a thermal image of the busbars and other critical parts. As part of the maintenance program, compare a recent thermal image with the post-commissioning image.
  • Page 60 Input A Trip Delay 00m:00s Input A Initial Delay Input Trip (N/O) Input B Function Input Trip Input B Name Always Active Input B Trip 00m:00s Input B Trip Delay 00m:00s Input B Initial Delay Reserved 710-15811-00B – MV-DS User Manual (V02~V06) 59/64...
  • Page 61 Start/Stop Modes-2 Constant Current Start Mode-2 00m:01s Start Ramp-2 400% FLC Initial Current-2 400% FLC Current Limit-2 Reserved 0 ms Kickstart Time-2 500% FLC Kickstart Level-2 Coast To Stop Stop Mode-2 00m:00s Stop Time-2 60/64 710-15811-00B – MV-DS User Manual (V02~V06)
  • Page 62 Motor Thermistor Trip Starter Starter Communication Warn and Log Network Communication Reserved Warn and Log Battery/Clock Trip Starter Ground Fault Reserved Reserved Reserved Reserved Reserved Reserved Reserved Trip Starter Undervoltage Trip Starter Overvoltage Restricted 710-15811-00B – MV-DS User Manual (V02~V06) 61/64...
  • Page 63 Softstart UK 14.2. Accessories Communication Modules MV-DS soft starters support network communication via easy-to-install communications modules. Each soft starter can support one communications module at a time. Available protocols: Ethernet (Profinet, Modbus TCP, Ethernet/IP), Profibus, DeviceNet, Modbus RTU, and USB.
  • Page 64 Performance monitoring (motor current, motor temperature) Upload parameter settings Download parameter settings To use SSUK WinMaster with the MV-DS, the soft starter must be fitted with a USB Module (PIM-USB-01) or a Modbus Module (PIM-MB-01). Refer to the SSUK WinMaster Help for further details.
  • Page 65 Appendix Softstart UK 64/64 710-15811-00B – MV-DS User Manual (V02~V06)
