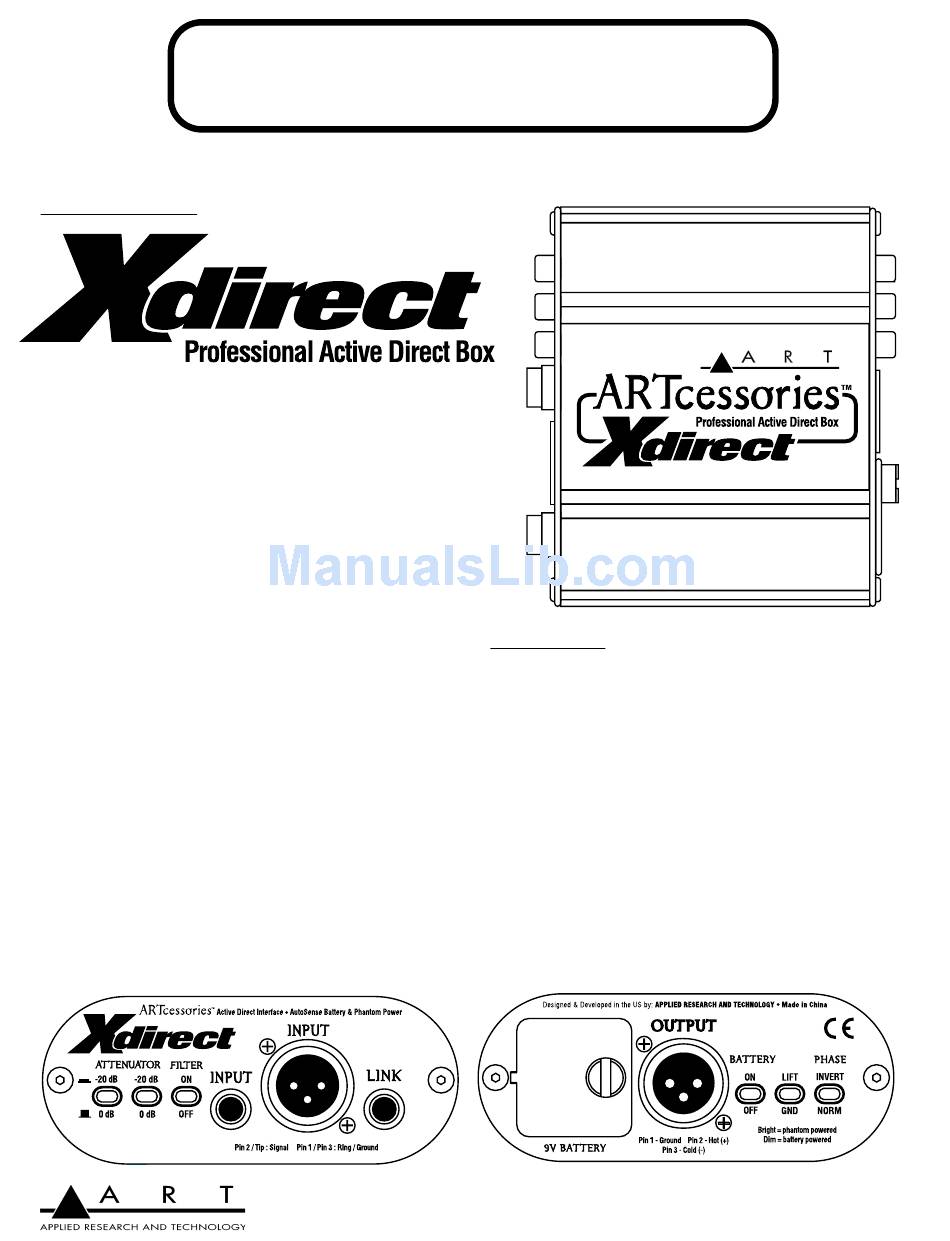

Art Xdirect Specifications

ART cessories
Creative audio solutions in cool little boxes.
February 2004
The Xdirect is a high quality interface that lets you connect instrument, line, or speaker
level signals to a mixer or other balanced input. The high impedance single-ended
1/4" and XLR inputs are buffered and converted, by very low noise active electronics,
into an isolated balanced low impedance signal source. The Xdirect has an extremely
flat and wide frequency response and can handle high signal levels while still main-
taining an isolated balanced low impedance output. This gives the Xdirect a very clean
and neutral sound with a wide variety of signal sources and over long signal runs in
high noise environments.
The Input Attenuator switches allow for a wide range of signal levels and the Input
Link jack allows for tapping off of your signal chain. The Ground Lift switch lets you
totally separate the input and output signal grounds, when appropriate, to isolate
two systems, thereby reducing hum and ground-loop noise.
What further sets the Xdirect apart from other "Active DI" boxes are its extended
features and versatility. We have added a switchable low pass Filter that cuts out
all very high frequency interference. This Bessel filter on the input is placed out of
the audio range and is primarily intended to reduce radio frequency interference
before it gets into the main system. The filter is also very effective in reducing any
digital computer noise artifacts when using the Xdirect as an interface between
a computer based audio workstation and your monitors.
A Phase Invert switch, while not normally included with your run of the mill D.I. box,
has been added to allow you to switch signal polarity right at the source. This feature
is especially handy when you are combining a direct tap with a microphone feed
in the mix.
The Xdirects active circuitry is powered by an internal 9volt battery, when external
power is not available. In this mode it draws 3.5 ma which should give you more than
250 hours of operation off of a new battery. If phantom power is available, then the
Xdirect will automatically draw its power from the external source. The Battery on/off
switch lights dim when the unit is running off of the battery, lights brightly when it is
running off of phantom power, and is off when the unit is inactive.
The compact black anodized all aluminum case and it's flexible power design allow
the Xdirect to provide years of trouble free service in Live Sound, Permanent/Fixed
Install, D.J., and virtually any PA application. It's full feature set, rugged construction,
and high-end specifications make the Xdirect the obvious choice whenever you have
to interface high impedance sources with a low noise balanced system.
DESIGNED & DISTRIBUTED BY: APPLIED RESEARCH AND TECHNOLOGY • 215 Tremont Street • Rochester, New York 14608 • USA
For Customer Service, please call: 585.436.2720 • Email: cserve@artproaudio.com • www.artproaudio.com • ART-ARTcs-02/04
Specifications:
Frequency Response:
Maximum Output Level:
Maximum Input Level:
Dynamic Range:
Input Connections:
Output Connection:
THD:
Filter Type/Response:
Input Attenuation:
Output Phase:
Ground Lift:
Power Requirements:
Dimensions:
Weight:
™
10Hz –100kHz, +/-.5dB @ +0dBu
+6dBu (battery powered)
+14dBu (phantom powered)
+4/+24/+44dBu
>100dB typical
1/4" TRS and XLR female
unbalanced, 470k Ohm
XLR male balanced, <600 Ohm
<.05% Typical
Switchable, Low Pass, -3dB @ 30kHz
Switchable, (0dB, -20dB, -40dB)
Switchable, Normal/Invert
Switchable, fully isolates inputs from
chassis and output.
9V @3.5ma (internal battery)
or 18VDC–48VDC @9.5ma
(phantom power)
1.75"H x 4.2"W x 3.5"D
(44.5mm x 107mm x 89mm)
.75 lbs. (.34kg)
