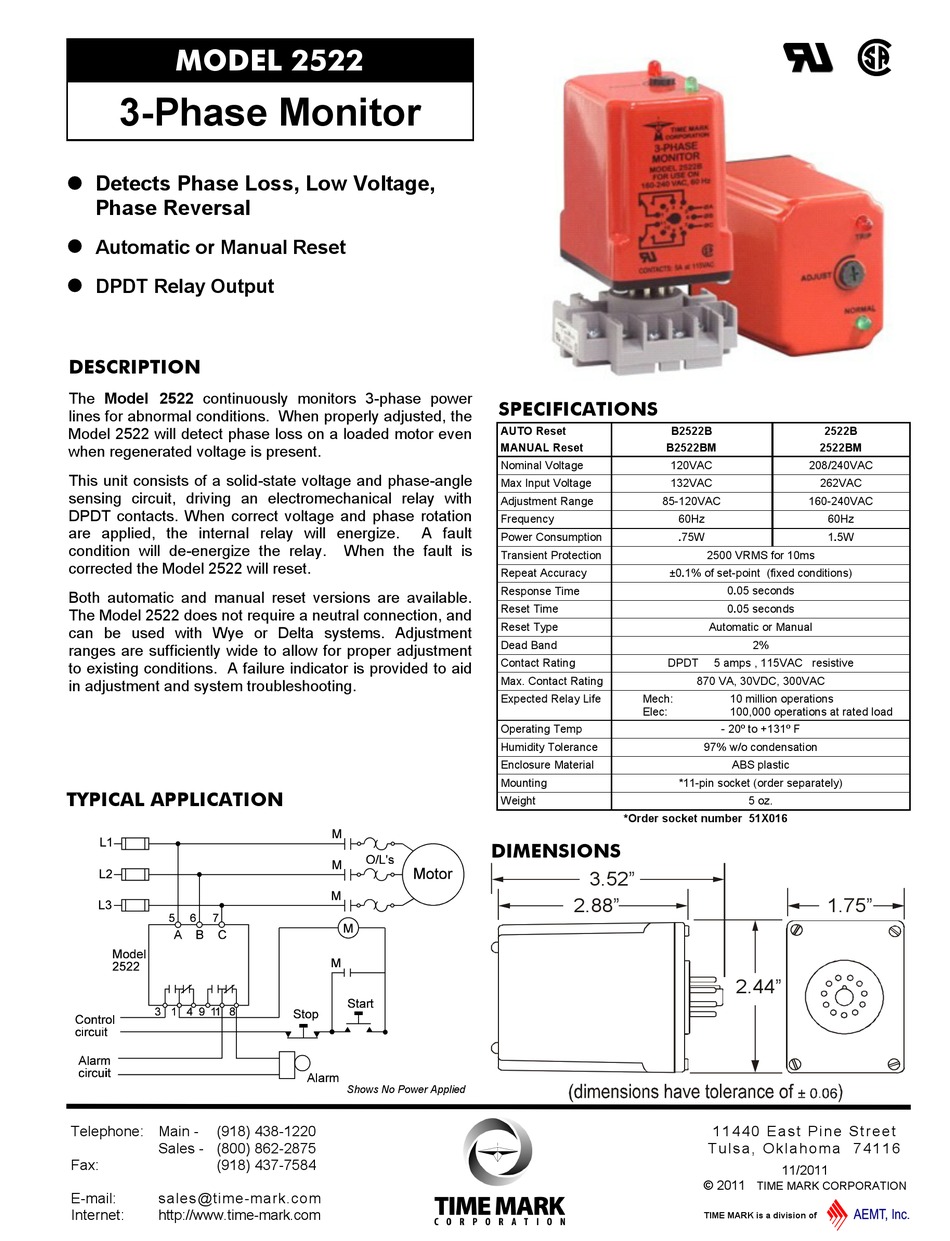

TIME MARK 2522 Installation Instructions

MODEL 2522
3-Phase Monitor

Detects Phase Loss, Low Voltage,
Phase Reversal

Automatic or Manual Reset

DPDT Relay Output
DESCRIPTION
The Model 2522 continuously monitors 3-phase power
lines for abnormal conditions. When properly adjusted, the
Model 2522 will detect phase loss on a loaded motor even
when regenerated voltage is present.

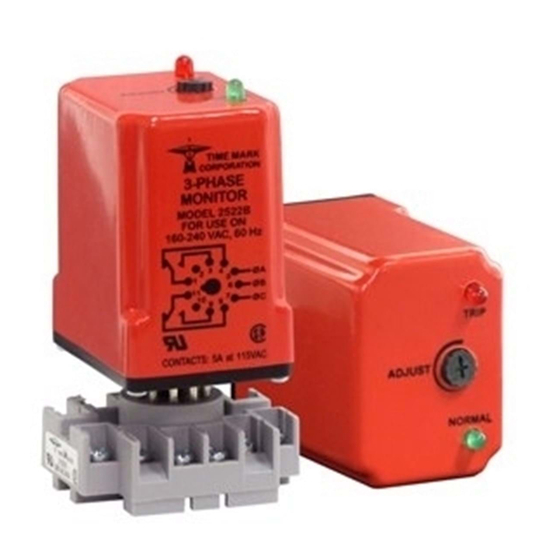

This unit consists of a solid-state voltage and phase-angle
sensing circuit, driving an electromechanical relay with
DPDT contacts. When correct voltage and phase rotation
are applied, the internal relay will energize.
condition will de-energize the relay.
corrected the Model 2522 will reset.
Both automatic and manual reset versions are available.
The Model 2522 does not require a neutral connection, and
can be used with Wye or Delta systems. Adjustment
ranges are sufficiently wide to allow for proper adjustment
to existing conditions. A failure indicator is provided to aid
in adjustment and system troubleshooting.
TYPICAL APPLICATION
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
SPECIFICATIONS
AUTO Reset
MANUAL Reset
Nominal Voltage
Max Input Voltage
Adjustment Range
Frequency
A fault
Power Consumption
When the fault is
Transient Protection
Repeat Accuracy
Response Time
Reset Time
Reset Type
Dead Band
Contact Rating
Max. Contact Rating
Expected Relay Life
Operating Temp
Humidity Tolerance
Enclosure Material
Mounting
Weight
DIMENSIONS
Shows No Power Applied
B2522B
B2522BM
120VAC
132VAC
85-120VAC
60Hz
.75W
2500 VRMS for 10ms
±0.1% of set-point (fixed conditions)
0.05 seconds
0.05 seconds
Automatic or Manual
2%
DPDT 5 amps , 115VAC resistive
870 VA, 30VDC, 300VAC
Mech: 10 million operations
Elec: 100,000 operations at rated load
- 20º to +131º F
97% w/o condensation
ABS plastic
*11-pin socket (order separately)
5 oz.
*Order socket number 51X016
3.52"
2.88"
2.44"
1 1 4 4 0 E a s t P i n e S t r e e t
Tu l s a , O k l a h o m a 7 4 1 1 6
© 2011
TIME MARK is a division of
2522B
2522BM
208/240VAC
262VAC
160-240VAC
60Hz
1.5W
1.75"
11/2011
TIME MARK CORPORATION
