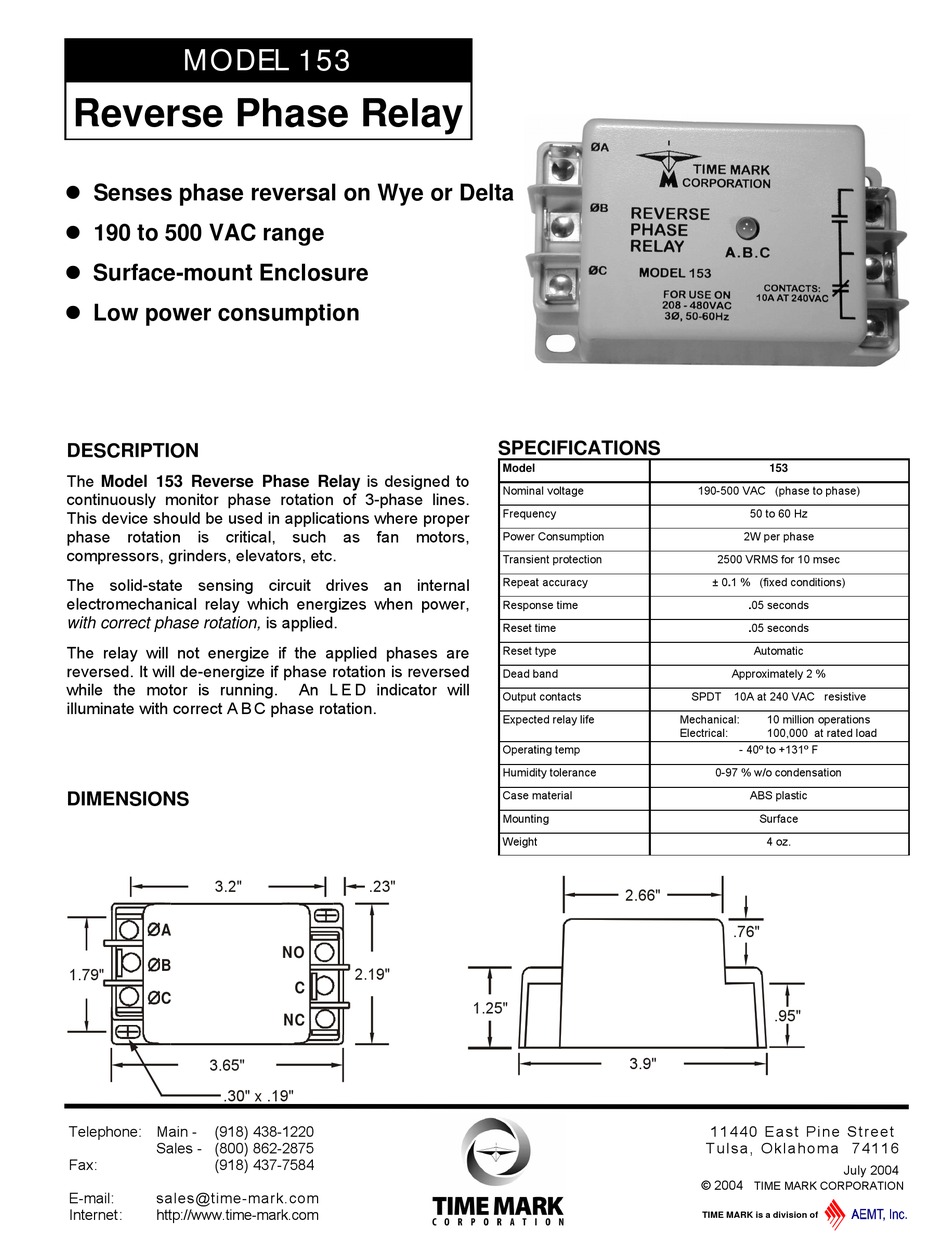

TIME MARK 153 Installation Instructions Manual

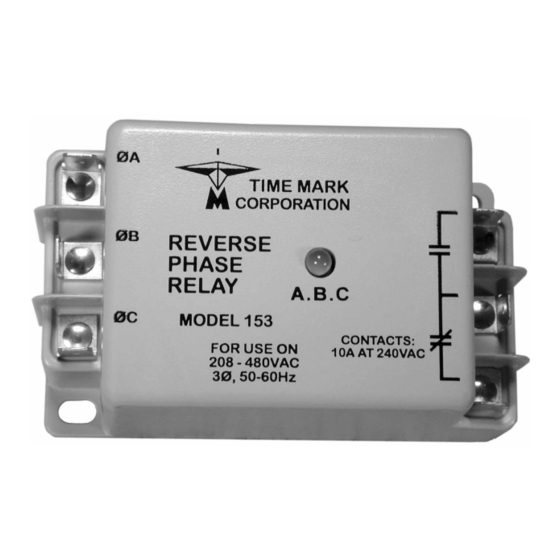

MODEL 153
Reverse Phase Relay
l Senses phase reversal on Wye or Delta
l 190 to 500 VAC range
l l Surface-mount Enclosure
l l Low power consumption
DESCRIPTION
The Model 153 Reverse Phase Relay is designed to
continuously monitor phase rotation of 3-phase lines.
This device should be used in applications where proper
phase rotation is critical, such as fan motors,
compressors, grinders, elevators, etc.
The solid-state sensing circuit drives an internal
electromechanical relay which energizes when power,
with correct phase rotation, is applied.
The relay will not energize if the applied phases are
reversed. It will de-energize if phase rotation is reversed
while the motor is running.
illuminate with correct A B C phase rotation.
DIMENSIONS
3.2"
A
B
1.79"
C
3.65"
.30" x .19"
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
An L E D indicator will
.23"
NO
2.19"
C
NC
SPECIFICATIONS
Model
Nominal voltage
Frequency
Power Consumption
Transient protection
Repeat accuracy
Response time
Reset time
Reset type
Dead band
Output contacts
Expected relay life
Operating temp
Humidity tolerance
Case material
Mounting
Weight
2.66"
1.25"
3.9"
153
190-500 VAC (phase to phase)
50 to 60 Hz
2W per phase
2500 VRMS for 10 msec
± 0.1 % (fixed conditions)
.05 seconds
.05 seconds
Automatic
Approximately 2 %
SPDT 10A at 240 VAC resistive
Mechanical: 10 million operations
Electrical: 100,000 at rated load
- 40º to +131º F
0-97 % w/o condensation
ABS plastic
Surface
4 oz.
.76"
.95"
1 1 4 4 0 E a s t P i n e S t r e e t
T u l s a , O k l a h o m a 7 4 1 1 6
July 2004
© 2004
TIME MARK CORPORATION
TIME MARK is a division of
