Thermo IEC FRENCH Press FA-078A Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATION
MANUAL
OMFA078A
Revision 0
300 Second Ave.
Needham Heights, MA 02494
Tel. (781) 449-8060 Toll Free: (800) 843-1113 Fax (781) 444-6743
Website: www.thermo.com/iec email: info@thermoiec.com

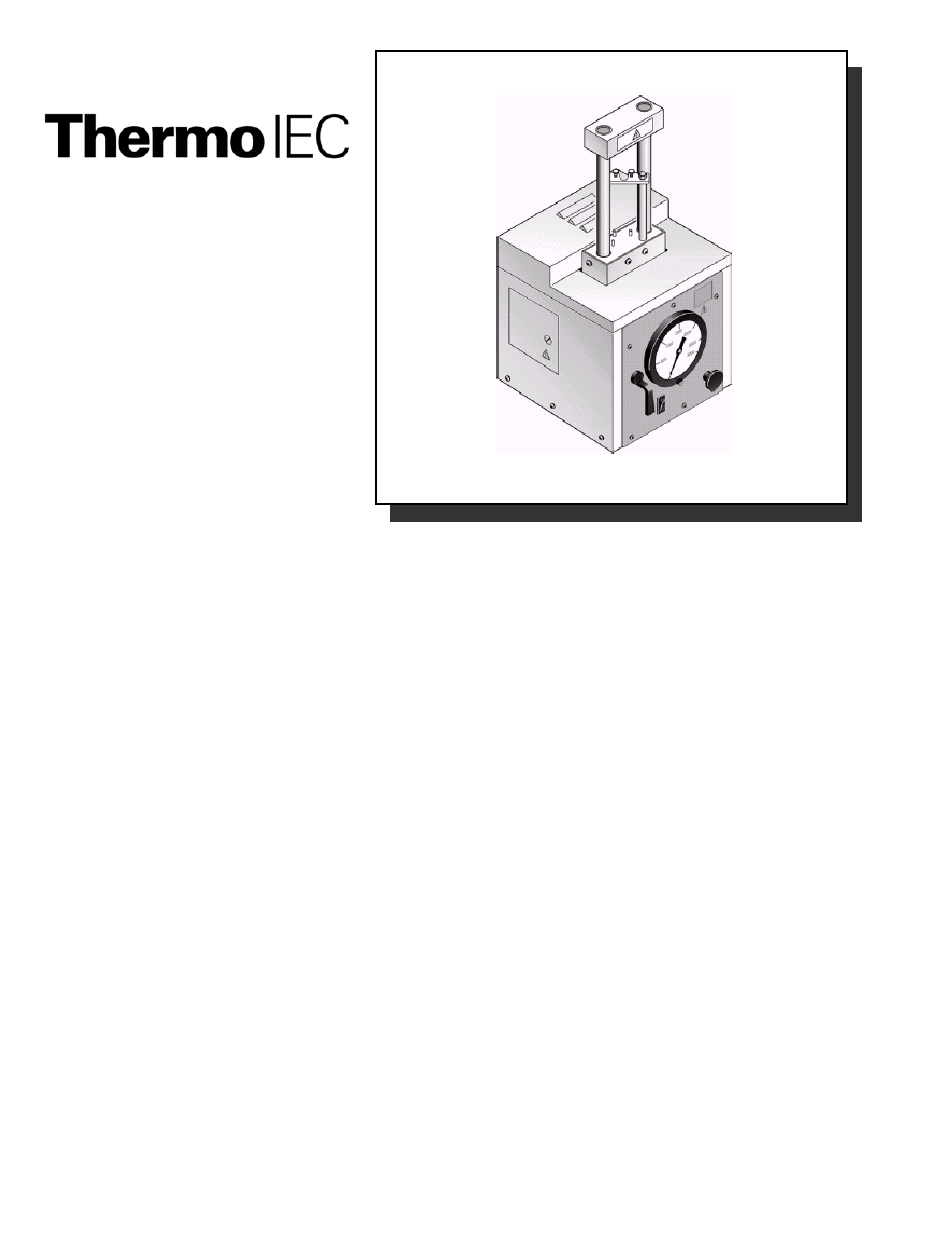

FRENCH® Press
Laboratory Press
Cat. No. FA-078A
Cat. No. FA-078A-E 240 VAC, 50 Hz
Laboratory Press with Standard Pressure Cell
Cat. No. FA-080A
Cat. No. FA-080A-E 240 VAC, 50 Hz
Laboratory Press with Mini Pressure Cell
Cat. No. FA-081A
Cat. No. FA-081A-E 240 VAC, 50 Hz
120 VAC, 60 Hz
120 VAC, 60 Hz
120 VAC, 60 Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRENCH Press FA-078A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermo IEC FRENCH Press FA-078A

Summary of Contents for Thermo IEC FRENCH Press FA-078A

  • Page 1 OPERATION MANUAL OMFA078A Revision 0 FRENCH® Press Laboratory Press Cat. No. FA-078A 120 VAC, 60 Hz Cat. No. FA-078A-E 240 VAC, 50 Hz Laboratory Press with Standard Pressure Cell Cat. No. FA-080A 120 VAC, 60 Hz Cat. No. FA-080A-E 240 VAC, 50 Hz Laboratory Press with Mini Pressure Cell Cat.
  • Page 2 Under no circumstances shall Thermo IEC be obligated to notify purchasers of any future changes in either this or any other instructions or specifications relating to Thermo IEC products, nor shall Thermo IEC be liable in any way for its failure to notify purchasers of such changes.
  • Page 3 Customer has requested warranty services are not covered by the warranty hereunder, Customer shall pay or reimburse Thermo IEC for all costs of investigating and responding to such request at Thermo IEC’s then prevailing time and material rates. If Thermo IEC provides repair services or replacement parts that are not covered by the warranty, Customer shall pay Thermo IEC therefore at Thermo IEC’s then prevailing time and material rates.
  • Page 4 The responsibility of Thermo IEC ends with delivery to the first carrier. All claims for loss, damage or non-delivery must be made against the delivering carrier within ten (10) days of receipt of...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION....................... 1 WHY THE FRENCH PRESSURE CELL WORKS ..........1 THE FRENCH PRESSURE CELLS AND THEIR RAPID-FILL KITS ....1 THE FRENCH PRESSURE CELL PRESS ............3 PRINCIPLES OF OPERATION ................4 THE FRENCH PRESSURE CELL PRESS............. 8 DESCRIPTION ....................

  • Page 6: Introduction

    FRENCH Pressure Cell from damage and still allows for dispensing with minimum sample waste. WARNING: ONLY THERMO IEC'S PRESSURE CELLS SHOULD BE USED WITH THE FRENCH PRESS. THERMO IEC'S PRESSURE CELLS ARE DESIGNED FOR, AND MUST ONLY BE USED FOR, BIOLOGICAL CELL DISRUPTION.
  • Page 7 Figure 1 Figure 2 The 40K and 20K Manual-Fill Cell The 20K Cell in filling position Figure 3 Figure 4 The 40K and discontinued 20K Cell with Rapid The Mini-Cell Fill Kit...

  • Page 8: The French Pressure Cell Press

    FRENCH Pressure Cell Press from manual presses. The Press is designed for use with the FRENCH Pressure Cells manufactured by Thermo IEC to produce a selected pounds-per-square inch (psi) value inside a FRENCH Pressure Cell. It can accommodate both 1-in and 3/8-in diameter piston FRENCH Pressure Cells.

  • Page 9: Principles Of Operation

    PRINCIPLES OF OPERATION 40K Cell In the following discussion, it is assumed that the FRENCH 40K Pressure Cell (1-in piston) is mounted properly in the cell holder, and the cell has been filled with a sample and cleared of air bubbles.
  • Page 10 Figure 6 Internal Cell Pressure in psi, FA-032 (40,000 psi pressure cell)
  • Page 11 Figure 7 Internal Cell Pressure in psi, FA-032 (40,000 psi pressure cell) 2. 20K Mini-Cell specifications In the following discussion, it is assumed that the FRENCH 20K Pressure Mini-Cell is mounted properly in the cell holder, and the cell has been filled with a sample and cleared of air bubbles. Do not exceed 20,000 psi pressure in the cell or damage occurs.
  • Page 12 If a manufacturer's press other than Thermo IEC is used, please note the gauge reading may indicate the pressure on the hydraulic ram inside the press. The working pressure inside the cell may be calculated using the following equation: πr •...

  • Page 13: The French Pressure Cell Press

    THE FRENCH PRESSURE CELL PRESS A. DESCRIPTION Side Panel Access Door Opens to gain access to hydraulic fluid reservoir inside the press. Ratio Selector Valve MED or HIGH position is used in conjunction with A-5024 PRESSURE INCREASE CONTROL to control pressure against lower platen (item 7).
  • Page 14 Figure 9 Controls and indicators of the FRENCH Pressure Cell Press...

  • Page 15: Assembly

    B. ASSEMBLY The FRENCH Pressure Cell Press is completely assembled when shipped. C. INSTALLATION The three-prong power plug supplied grounds the press and polarizes the connection. Prior to connecting the FRENCH Pressure Cell Press to an AC source, ensure that the following requirements are met: a.

  • Page 16: Operation

    CAUTION: To eliminate the possibility of damage to the press pump motor, ensure that the AC line voltage and operating frequency is correct for the particular model of the FRENCH Pressure Cell Press. Refer to the model numbers. WARNING: THE POWER OUTLET MUST BE GROUNDED PROPERLY AND POLARIZED.
  • Page 17 Using the appropriate graph in Figures 6-8 or the table located on the front of the press, determine the gauge pressure required to produce a specific value of working pressure in the cell. CAUTION: Do not operate the cell above its pressure rating. Plug in the line cord.
  • Page 18 In general, to get an even breakage, ensure: that you do not close the flow valve too tightly when filling the cell with the suspension, • that you open the flow valve gently and cautiously so that the flow rate does not exceed •...

  • Page 19: The 40K Manual-Fill Cell

    Thermo IEC without first securing proper authorization from the company. The responsibility of Thermo IEC ends with the delivery to the first carrier; all claims for loss, damage, or non-delivery must be made against the delivering carrier within ten days of the receipt of the shipment.

  • Page 20: Assembly

    ASSEMBLY The following instructions are to install the 40K cell. Use the exploded diagrams in Figures 11 and 12 to reference the parts of the cell. Please take careful note of the precautions as they can prevent future damage to the cell. Only the PC-435 o-ring style flow valve assembly can be used to 40,000 psi PRECAUTION: For the 40K, the valve should be finger tight.
  • Page 21 Verify the contents of the package with the parts list. PRECAUTION: It is imperative to protect the piston from foreign matter at all times. Collected granules (e.g., sand, glass, dirt, etc.) will irreversibly damage the cell. Figure 13 The 40K cell in filling position Assemble the Cell Table Stand (see Figure 13).

  • Page 22: Installation

    NOTE: The tube may be bent to accommodate sample flow. Note that excessive bending may break the tube. Simultaneously push and rotate the piston into the opening at the top of the cell. There may be some resistance to pushing in the piston. Simultaneously push and rotate the closure plug into the opening at the bottom of the cell.

  • Page 23: Operation

    OPERATION Figure 14 Rod extensions for the 40K Cell Position the piston for the amount of sample you want to process. Do not, however, withdraw the piston further than the top MAX FILL. If you do, you could cause the piston and cell body to misalign and damage each other.
  • Page 24 PRECAUTION: The aligning pins, on the lower platen of the FRENCH Pressure Cell press, center the cell directly above the pressure actuating cylinder. Forces other than in a straight line through the cell cause scoring of the piston and possible damage to the inner wall of the cell body. Be sure the cell clamp of the laboratory press is properly and securely fastened to ensure that the cell cannot escape the press if improperly positioned or overpressurized.

  • Page 25: The 40K Rapid-Fill Kit

    Thermo IEC without first securing proper authorization from the company. The responsibility of Thermo IEC ends with the delivery to the first carrier; all claims for loss, damage, or non-delivery must be made against the delivering carrier within ten days of the receipt of the shipment.
  • Page 26 Loosely install the liquid inlet valve onto the valve mounting bracket using the two ½-20 hex head screws, lockwashers and the retaining plate. The valve needs to be loose to properly fit the tubing into the liquid inlet valve. Install the closure plug in the bottom of the cell body. Remove the high pressure plug (gland nut/plug) from the rear of the closure plug.

  • Page 27: Installation

    INSTALLATION Remove the cell clamp support rods from the lower platen on the press and install the two support rod extensions. Replace the support rods by attaching them to the rod extensions. Place the cell on the lower platen between the aligning pins. Secure in place with the press cell clamp.

  • Page 28: Operation

    OPERATION Install the rapid-fill pressure cell in the press. See the 40K cell installation section in this chapter. Be sure the cell clamp on the laboratory press is properly fastened to ensure that the cell cannot escape the press if improperly positioned or over-pressurized. Lower the platen by placing the three-position control lever to DOWN.
  • Page 29 WARNING: DO NOT OVERPRESSURIZE. BEFORE APPLYING PRESSURE TO THE CELL, DETERMINE THE GAUGE PRESSURE REQUIRED TO PRODUCE THE DESIRED PRESSURE IN THE CELL. IF THE MAXIMUM WORKING PRESSURE OF THE CELL IS EXCEEDED, THE SEALS AND/OR THE CELL ITSELF COULD RUPTURE CAUSING INJURY TO THE OPERATOR (SEE FIGURES 8 &...

  • Page 30: The French Pressure Mini-Cell

    Thermo IEC without first securing proper authorization from the company. The responsibility of Thermo IEC ends with the delivery to the first carrier; all claims for loss, damage, or non-delivery must be made against the delivering carrier within ten days of the receipt of the shipment.

  • Page 31: Assembly

    ASSEMBLY The following instructions are to assemble the min-cell. Use the exploded diagram (Figure 17) to reference the parts. Please take careful note of the precautions as they can prevent future damage to the cell. Verify the contents of the package with the parts list. PRECAUTION: It is imperative to protect the piston from foreign matter at all times.

  • Page 32: Installation

    INSTALLATION Place the mini-cell spacer between the aligning pins on the press platen. PRECAUTION: It is imperative to protect the piston from foreign matter at all times. Collected granules (e.g., sand, glass, dirt, etc.) will irreversibly damage the inside of the cell. Place the assembled mini-cell on the spacer using the pins on the spacer as a guide.
  • Page 33 Holding the closure plug tightly against the cell body, invert the cell to its normal position and place in a press, carefully centering it on the press platen. WARNING: THE AREA OF THE CELL PISTON IS 0.11 OF AN INCH; THEREFORE, ONLY 2,200 LBS OF COMPRESSIVE FORCE ON THE PISTON CREATES 20,000 PSI (MAXIMUM WORKING PRESSURE) IN THE CELL.

  • Page 34: Maintenance

    This section contains fuse replacement, cleaning procedures and instructions for checking the hydraulic fluid level in the pump reservoir. Operator maintenance is limited to these procedures. If your pump should require servicing, contact a Thermo IEC representative. REPLACING THE FUSE Set the PUMP switch to OFF. Unplug the line cord.
  • Page 35 Temperature Hydraulic Fluid Mobile DTE 26 Above 20°C Shell Tellus 33 HCP 32 Mobile DTE 24 Below 20°C Shell Tellus 25 or 32 HCP 68 DRAINING PROCEDURE Place the left side of the press slightly off the edge of the table to enable access to the reservoir drain plug through the cut-out area in the bottom left rear corner of the press base.
  • Page 36 REPLACEMENT PARTS FOR THE PRESS The differences between the FA-078A, FA-078A-E1 and FA-078A-E2 FRENCH Pressure Cell Presses are the operating voltage and frequency. Be sure to specify the appropriate part number when ordering a replacement or fuse. DESCRIPTION PART NO. Gauge, 0-3000 psi A-5772 Oil, 1 gallon, 450 SSU, Viscosity –100...

  • Page 37: The French Pressure Cells

    THE FRENCH PRESSURE CELLS DO NOT STORE THE PRESSURE CELLS ASSEMBLED. Clean and dry the pressure cells thoroughly after each use. Components can be autoclaved if required. All metal parts are made of 400-series stainless steel (specially heat-treated) and are susceptible to surface corrosion if not properly cleaned and dried. A light coating of mineral oil should be applied to all surfaces to prevent corrosion during periods of non-use.
  • Page 38 REPLACEMENT PARTS FOR THE 40K CELL DESCRIPTION QUANTITY PART NO. Spare Parts Kit FA-929 -retaining ring -o-ring -back-up ring -flow valve assembly -sample outlet tube -packing back-up ring -retaining ring pliers -gland nut -high pressure plug Piston Back-Up Rings pkg of 5 FA-933 Piston O-Ring 1 pkg of 10...
  • Page 39 REPLACEMENT PARTS FOR THE MINI-CELL DESCRIPTION QUANTITY PART NO. Spare Parts Kit FA-921 -o-rings -back-up rings -nylon balls -sample outlet tube -flow valve assembly Nylon Balls pkg of 100 FA-924 pkg of 1000 FA-925 O-rings FA-936 Back-up rings FA-935 Flow Valve Assembly with Handle PC-161 Piston Assembly...

  • Page 40: The Rapid Fill Kit

    THE RAPID FILL KIT DISASSEMBLING AND CLEANING THE RAPID-FILL KIT Disconnect all tubing and remove the flow valve assembly from the Rapid-Fill Kit. Figure 18 Remove screw from the bracket that encircles the large nut at the base of the flow valve handle (see figure 18).
  • Page 41 When the threads of the large nut are clear, firmly but gently pull the handle and stem straight out. NOTE: DO NOT WIGGLE THE HANDLE ASSEMBLY IF THE ASSEMBLY IS TOO TIGHT TO REMOVE EASILY! This is designed to handle high pressures without leakage, and therefore, has very tight tolerances.
  • Page 42 REASSEMBLING THE RAPID-FILL KIT Ensure that the handle is turned completely counterclockwise. Holding the handle and the large nut, gently insert the stem into the body of the valve (see Figures 19-23). (Make sure that the bracket is in place). Manually rotate the handle and the large nut clockwise until the nut is hand-tight.

  • Page 43: Safeguards

    WARNING: ONLY THERMO IEC'S PRESSURE CELLS SHOULD BE USED WITH THE FRENCH PRESS. THERMO IEC PRESSURE CELLS ARE DESIGNED FOR, AND MUST ONLY BE USED FOR, BIOLOGICAL CELL DISRUPTION.
  • Page 44 NOTE: The contact of the piston and the closure plug at high pressure can damage the piston, closure plug, cell body, or all three. Damage caused by piston/closure plug contact at high pressure is not covered by the product warranty. PRECAUTION: During the assembly and fill process, do not allow the piston to pick-up granules (e.g., sand, glass, dirt, etc.).

  • Page 45: Specifications

    VIII. SPECIFICATIONS A. THE PRESS Height: 34.5 in (87.6 cm) Weight: 240 lbs (109 kg) (shipping): 320 lbs. (145 kg) Dimensions: 18.25 in x 18.25 in (46.4 m x 46.4 m) Power requirements (FA-078A): 120V± 10%, 60Hz (FA-078A-E1): 220V± 10%, 50Hz (FA-078A-E2): 240V±...
