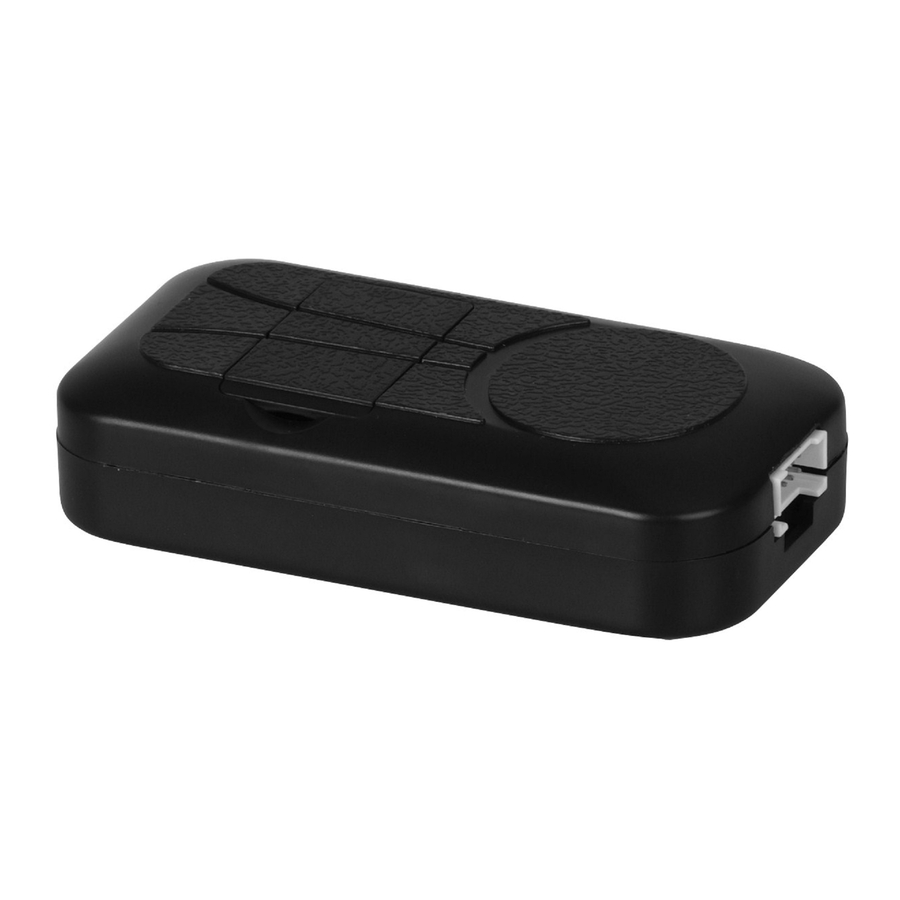

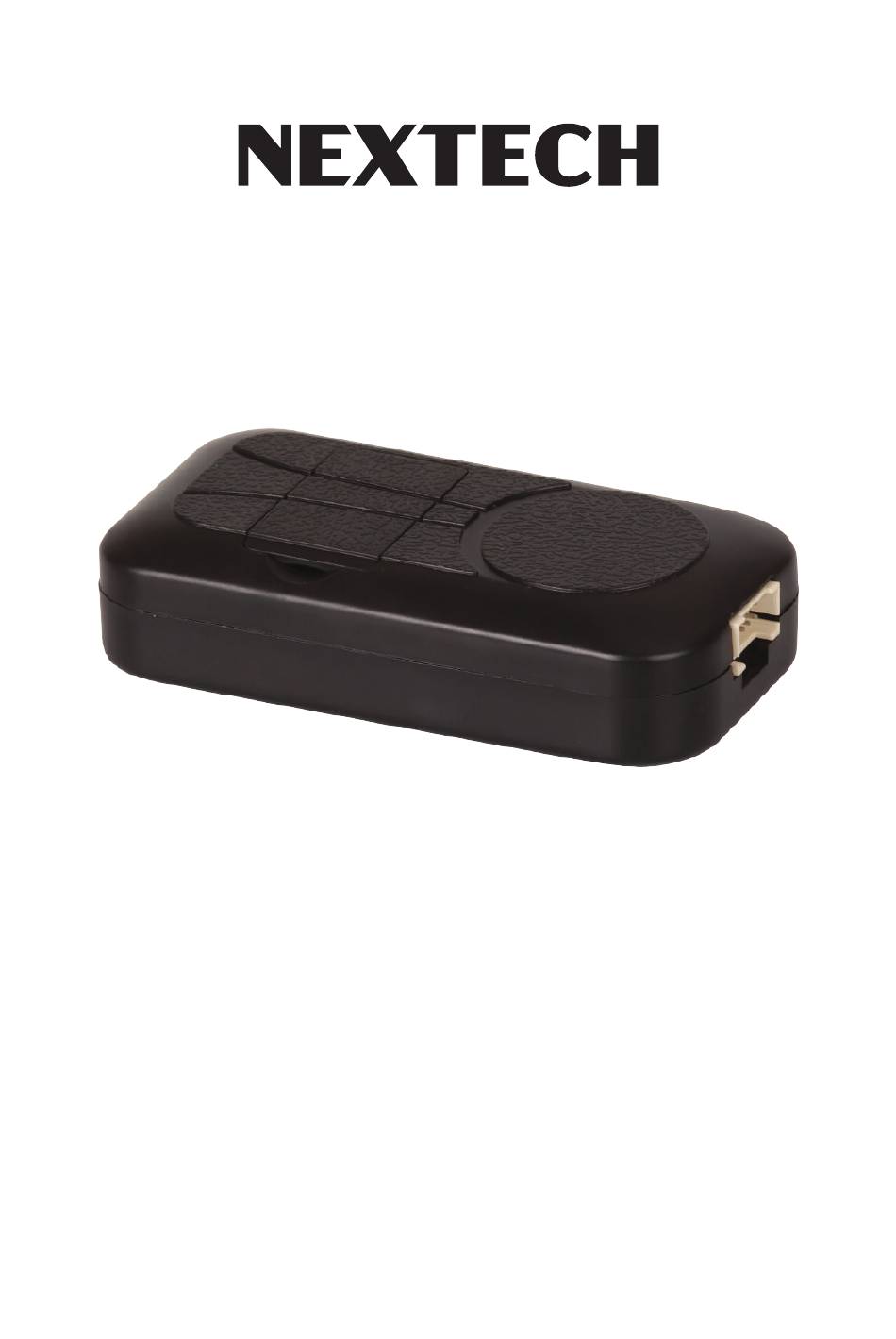

- Page 1 4G GPS Vehicle Tracker LA9038 User Manual...
- Page 2 Welcome to use this real time car GPS tracker LA9038 .This product is with GPS module and 2G GSM / 3G WCDMA / 4G LTE module, that has many new and unique functions, such as built in rechargeable battery for power down alarm & tracker removed alarm, remote turn off car engine, playing back history tracking on website or mobile phone, SMS locate with Google map link, sensitive shock sensor built in to control power saving etc.
-
Page 3: Product Specification
ON/OFF Switch Indicator Standard Wire SIM Card Harness Socket Antenna Product Specification Easy installation (only 2-4 wires) Global 2G / 3G / 4G frequency band; Fast GPS locating with A-GPS function; GPS + BEIDOU dual mode module; ... -
Page 4: Before Using
In the following content, all the SMS content is mark by “”, and this “” is not include in the SMS content, it is only to used to mark the SMS content. Before Using 1 Power on / off Open SIM card room cover with finger, slide the switch to the ON position (please refer the following diagram), in the direction of the arrow , the tracker will power on, if the tracker battery is low, the power &... - Page 5 3> Before installing or uninstalling the SIM card, please power off the tracker. 3 Installation For CC-338, the tracker uses the 9-40V DC power supply, it is necessary connecting to car battery all the time, after the backup battery is full, the built in recharging circuit will stop recharging, and if the tracker is not move, the tracker will go to power saving mode (GPS off, GPRS online), when the tracker begin to move, the tracker will back to normal working mode.
- Page 6 Attention: Turning off engine is very dangerous when car is driving, this will make the car difficult to control and maybe cause a accident, so we recommend connect the relay to cut the start motor wire, this will make driver can not remote turn off car engine, but can not start car engine.
- Page 7 7 Using Condition The working temperature is -20℃ to 60℃, over this range the specification maybe can not reach the standard level. the storage temperature can reach to -40℃ to 80℃. Simply Using Step 1. First to buy a 2G GSM / 3G WCDMA / 4G LTE mobile phone SIM card and enable data service, order a data package 20-30M (Normally most of the tracker every month data cost is lower than 30MB), install in the tracker, please refer Before Using...
-
Page 8: Locate Operation
Locate Operation 1. Sending SMS to trigger report location by Google map link Send SMS “URL*12345678” to the tracker, “URL” is a command, "12345678" is password. If the operation is success, the tracker will send back the location information with Google map link to the sender. User click the link, the location in google map will display, the SMS example is as follow: https://maps.google.com/maps?q=22.67680,114.15188 Battery:88%... - Page 9 the shock alarm, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. Shock alarm notice by sending SMS & calling can be enabled ON or OFF, please refer Tracker Setting Command 3 &4.
- Page 10 Send SMS “DELETEPHONE*12345678*A” to the tracker, “DELETEPHONE” is a command; "12345678" is password; “A” is authorized phone number location, there are 3 locations “A” and “B” and “C”; if the delete operation is success, the tracker will send back the information ”Delete Preset Phone OK”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 11 not be noticed by sending a sms. If the alarm notice is set to SMSOFF, then the tracker only making a call or sending information to platform when the alarm is triggered. 5. Set GPRS Mode: KEEPONLINE / SHOCKCONTROL Send SMS “KEEPONLINE*12345678” (Keep online all the time even the tracker stop moving) or “SHOCKCONTROLGPRS*12345678”...
- Page 12 if the APN & GPRS user name password are not right, the tracker can not upload location to platform (Red LED will flash twice, and the location can not update on the platform), then you need sending SMS to tracker to change them manually, please confirm the auto configuration of APN &...
- Page 13 804201912345678, ;ID number d3.igps.info ;Server Domain Name 58.64.155.133,8011, ;Server IP & Port ;Uploading time interval is 30 seconds 13987654321, ;Authorized number (A/B/C) GPS OK , ;GPS status GsensorValue:4 ;GsensorValue form(0-255) defalut:4 ShockControlGPS, ;GPS module shock control WCDMA ;Current network is WCDMA -65dBm, ;mobile phone network signal strength ShockControlGPRS,...
- Page 14 2> After back to default set, if the IP/APN/GPRS name & password are changed manually, you need set these again by sending SMS. Platform Operation Guide The platform operation please refer the platform operation guide, scan the following QR code or click the website link to download the platform manual, visit website and click the Manual icon also download the platform manual.
-
Page 15: Specification
no ring, please confirm the SIM card has been installed properly, the SIM card PIN code is disable, and the SIM card has enough charge, and the mobile phone can work well in that place. If the tracker work well the Green LED will flash once or third times every 4 seconds (First power on, recharging the battery will delay the first locating 5-30 minutes). -
Page 16: Packing List
Packing list: The main unit 1 pcs The user manual card 1 pcs 4P Wires 1 pcs Power Input 7-40V...
