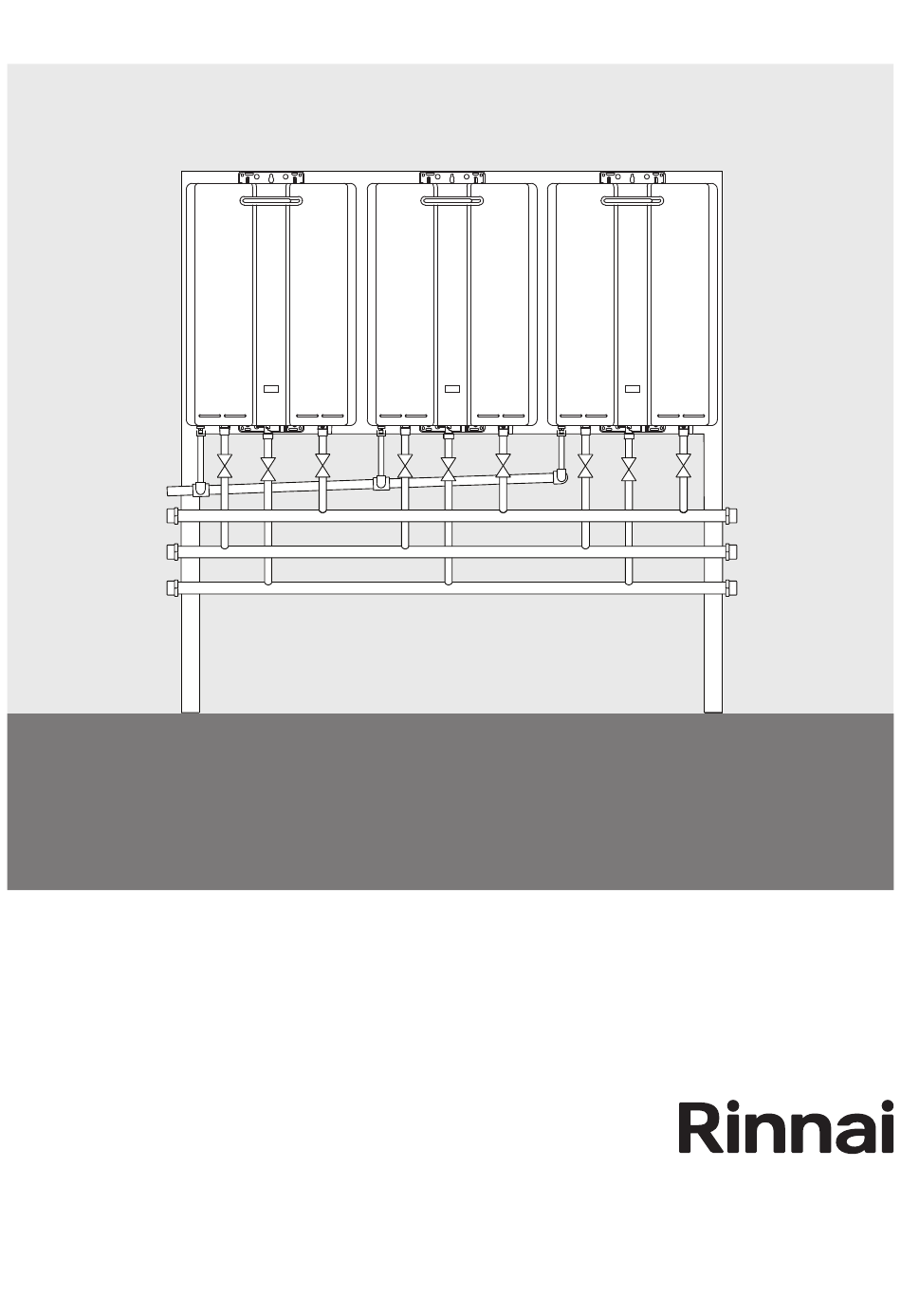

- Page 1 Commercial Manifold Pack Operation & Installation Manual...
- Page 2 Congratulations on the purchase of your Rinnai Manifold Pack System. We trust you will have many years of comfort and enjoyment from your appliance. BEFORE USING THIS APPLIANCE Before proceeding with the operation or installation, read this manual thoroughly and gain a full IMPORTANT understanding of the appliance, to ensure safe and correct use.
-
Page 3: Table Of Contents
Activated Manifold Pack without MECs or PAMs staging (reticulation system) ..........12 Typical Rinnai Manifold Pack Installation ......................13 Appliance Dimensions ..........................13 Rinnai Manifold Pack Installation Hand Over Manual ..................15 Rinnai Manifold Electronic Control System - MECS ..................15 CONDENSATE DRAIN REU-KM &... -
Page 4: Warnings & Important Information
MUST BE replaced by an authorised person in order to avoid a hazard, using genuine replacement parts available from Rinnai. Take care of not to touch the power plugs with wet hands. Notice to Victorian Consumers This appliance must be installed by a person licensed with the Victorian Building Authority a licensed person will have insurance protecting their workmanship. -
Page 5: Model Range Overview
Gas booster flue terminals must be located in accordance with AS/NZS 5601 Fig 6.2 “Location of balanced flue terminals”. Rinnai HD units are fan assisted appliances and thus have lower clearances than a natural draft appliance of the same MJ rating. - Page 6 For minimum clearances not addressed above acceptance should be obtained from the Technical Regulator. Minimum clearances d and e also apply to any combustion air intake openings of appliances. FIGURE 6.2 (in-part) LOCATION OF FLUE TERMINALS OF BALANCED FLUE, ROOM-SEALED, FAN-ASSISTED OR OUTDOOR APPLIANCES Rinnai Commercial Manifold Pack OIM...
-
Page 7: Internal Flueing
The Rinnai Continuous Flow Flueing system must be installed in accordance with the instructions supplied with the flue terminal. Non Rinnai flueing systems MUST NOT be used. For all further information on Internal Flueing, please refer to separate Flueing manual supplied with Flueing components. -
Page 8: Common Flue System For Internal Models
INTERNAL FLUEING COMMON FLUE SYSTEM FOR INTERNAL MODELS The Rinnai Commercial Common Flue System is suitable for the Rinnai Internal Commercial Gas Continuous Flow Water Heaters in accordance with the flue design options outlined in the AS/NZS 5601.1 Appendix titled "Flue Design". - Page 9 For all other appliance dimensions, refer to "Appliance Dimensions" on page 13. Rinnai internal models described in this manual must use the Co-Axial Rinnai FFU flue components. The use of non Rinnai FFU flue components may result in a dangerous situation and violates IMPORTANT regulations.
-
Page 10: Installation
When turning over to correctly orient heaters beware that system is top heavy. Assembly: A Rinnai Manifold Pack is supplied in modules of either 2 or 3 HD continuous flow units plumbed in parallel and mounted on a dedicated and lightweight frame. Standard systems can be installed together in any order by coupling the barrel unions supplied with the 32mm copper header pipes. -
Page 11: Setting Sequence
This indicates the units are operational. • Not all Rinnai heaters will fire up as its flow rate dependent. To verify all heaters are operational either open more outlets or, if this is not practical, close the cold water valve underneath the currently operating heaters to restrict the flow. -
Page 12: Activated Manifold Pack Without Mecs Or Pams Staging (Reticulation System)
To activate more heaters wind open the valve until satisfied that the delivery temperature is sufficient to maintain the temperature in the loop. Refer drawing below. • Clean all filters on completion. Rinnai Commercial Manifold Pack OIM... -
Page 13: Typical Rinnai Manifold Pack Installation
INSTALLATION TYPICAL RINNAI MANIFOLD PACK INSTALLATION NOTE: ACTIVATION LOOP MAY BE FITTED Appliance Dimensions Model Weight HD200 Manifold Packs MP2 200 60 Kg MP3 200 1125 90 Kg MP4 200 1500 120 Kg 1500 MP5 200 1875 150 Kg MP6 200... - Page 14 Ring Main Pump • A secondary or building return pump may be installed in conjunction with the Rinnai Manifold Pack hot water system. Contact Rinnai Commercial to select this pump as duty is critical to temperature stability when there is no building flow. Pump must have a check valve on the discharge.
-
Page 15: Rinnai Manifold Pack Installation Hand Over Manual
MECS is a totally integrated system unique to Rinnai that links each HD unit in the system and will turn on each unit in the system as demand requires. -
Page 16: Condensate Drain
Because the condensate is a by-product of gas combustion it is mildly acidic. For this reason copper tube and fittings MUST NOT be used as it will corrode. Instead, Rinnai recommend plastic pipes and fittings such as Unplasticised Polyvinyl Chloride (UPVC) or Polyethylene (PE) which is commonly used for irrigation piping. - Page 17 300 mm in length. It shall discharge into a tundish through an air gap of not less than 75 mm and not more than 150 mm measured from the outlet of the drain pipe to the rim of the tundish. Rinnai Commercial Manifold Pack OIM...
-
Page 18: Fault Finding
In all cases, you may be able to clear the Error Code simply by turning the hot water tap OFF, then ON again. If this does not clear the Error Code, try pushing the On/Off button OFF, then ON again. If the Error Code still remains, contact Rinnai for advice. -
Page 19: Ring Main Pump
(or poor pipework insulation). Investigate valves and operation of pump. SERVICE Rinnai has a service and spare parts network with personnel who are fully trained and equipped to provide the best service on Rinnai appliances. If your appliance requires servicing, please call our National Help Line. -
Page 20: Contacts
*Cost of a local call higher from mobile or public phones. For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line.
