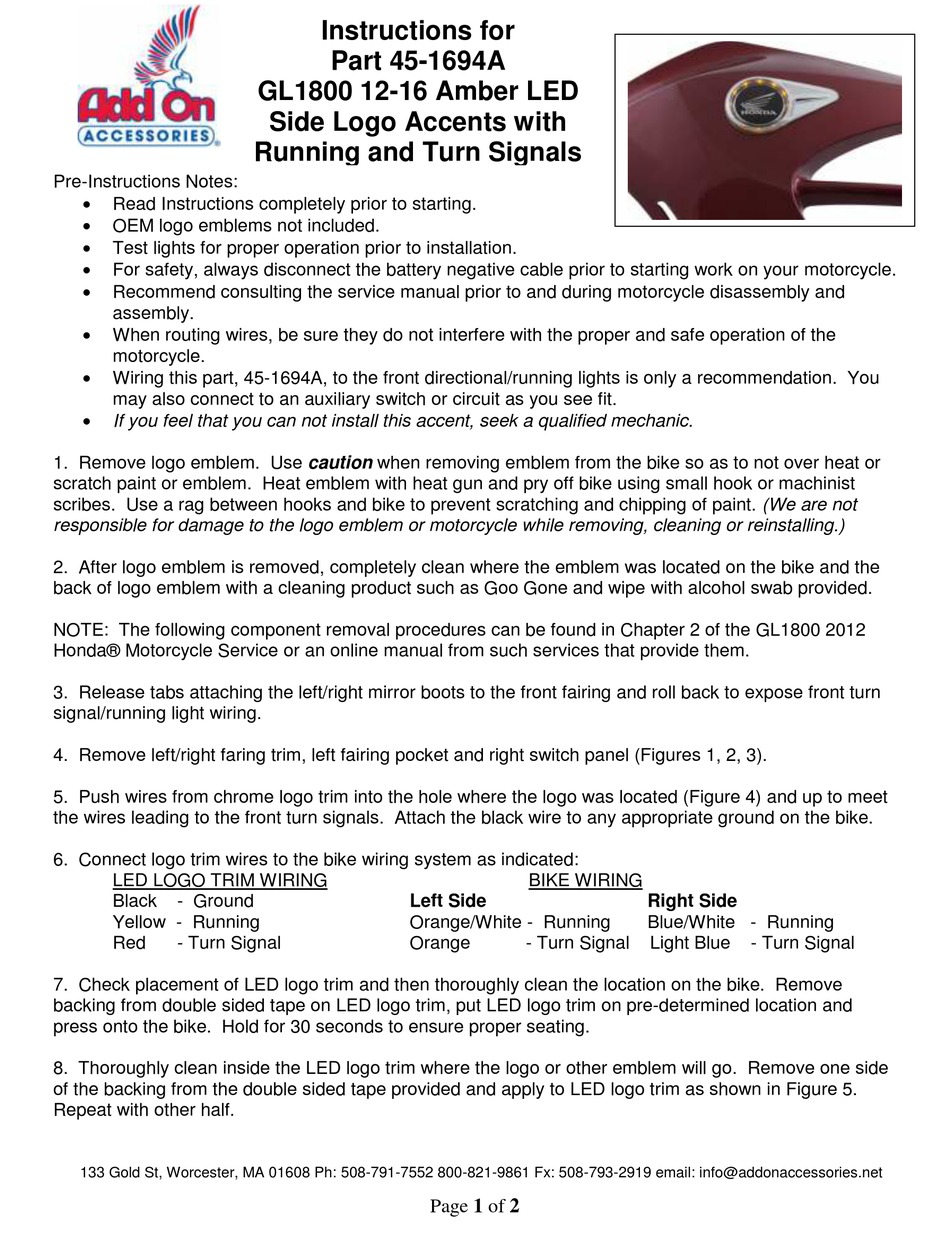

Add On GL1800 Instructions

Pre-Instructions Notes:


Read Instructions completely prior to starting.

OEM logo emblems not included.

Test lights for proper operation prior to installation.

For safety, always disconnect the battery negative cable prior to starting work on your motorcycle.

Recommend consulting the service manual prior to and during motorcycle disassembly and
assembly.

When routing wires, be sure they do not interfere with the proper and safe operation of the
motorcycle.

Wiring this part, 45-1694A, to the front directional/running lights is only a recommendation. You
may also connect to an auxiliary switch or circuit as you see fit.

If you feel that you can not install this accent, seek a qualified mechanic.
1. Remove logo emblem. Use caution when removing emblem from the bike so as to not over heat or
scratch paint or emblem. Heat emblem with heat gun and pry off bike using small hook or machinist
scribes. Use a rag between hooks and bike to prevent scratching and chipping of paint. (We are not
responsible for damage to the logo emblem or motorcycle while removing, cleaning or reinstalling.)
2. After logo emblem is removed, completely clean where the emblem was located on the bike and the
back of logo emblem with a cleaning product such as Goo Gone and wipe with alcohol swab provided.
NOTE: The following component removal procedures can be found in Chapter 2 of the GL1800 2012
Honda® Motorcycle Service or an online manual from such services that provide them.
3. Release tabs attaching the left/right mirror boots to the front fairing and roll back to expose front turn
signal/running light wiring.
4. Remove left/right faring trim, left fairing pocket and right switch panel (Figures 1, 2, 3).
5. Push wires from chrome logo trim into the hole where the logo was located (Figure 4) and up to meet
the wires leading to the front turn signals. Attach the black wire to any appropriate ground on the bike.
6. Connect logo trim wires to the bike wiring system as indicated:
LED LOGO TRIM WIRING
Black - Ground
Yellow - Running
Red - Turn Signal
7. Check placement of LED logo trim and then thoroughly clean the location on the bike. Remove
backing from double sided tape on LED logo trim, put LED logo trim on pre-determined location and
press onto the bike. Hold for 30 seconds to ensure proper seating.
8. Thoroughly clean inside the LED logo trim where the logo or other emblem will go. Remove one side
of the backing from the double sided tape provided and apply to LED logo trim as shown in Figure 5.
Repeat with other half.
133 Gold St, Worcester, MA 01608 Ph: 508-791-7552 800-821-9861 Fx: 508-793-2919 email: info@addonaccessories.net

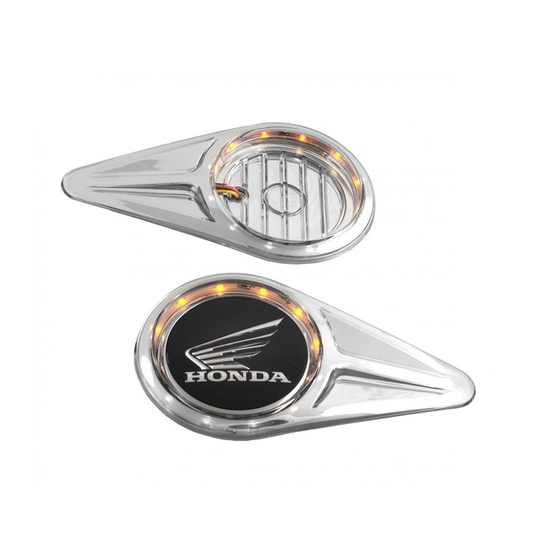

Instructions for
Part 45-1694A
GL1800 12-16 Amber LED
Side Logo Accents with
Running and Turn Signals
Left Side
Orange/White - Running
Orange
Page 1 of 2
BIKE WIRING
Right Side
Blue/White - Running
- Turn Signal Light Blue - Turn Signal
