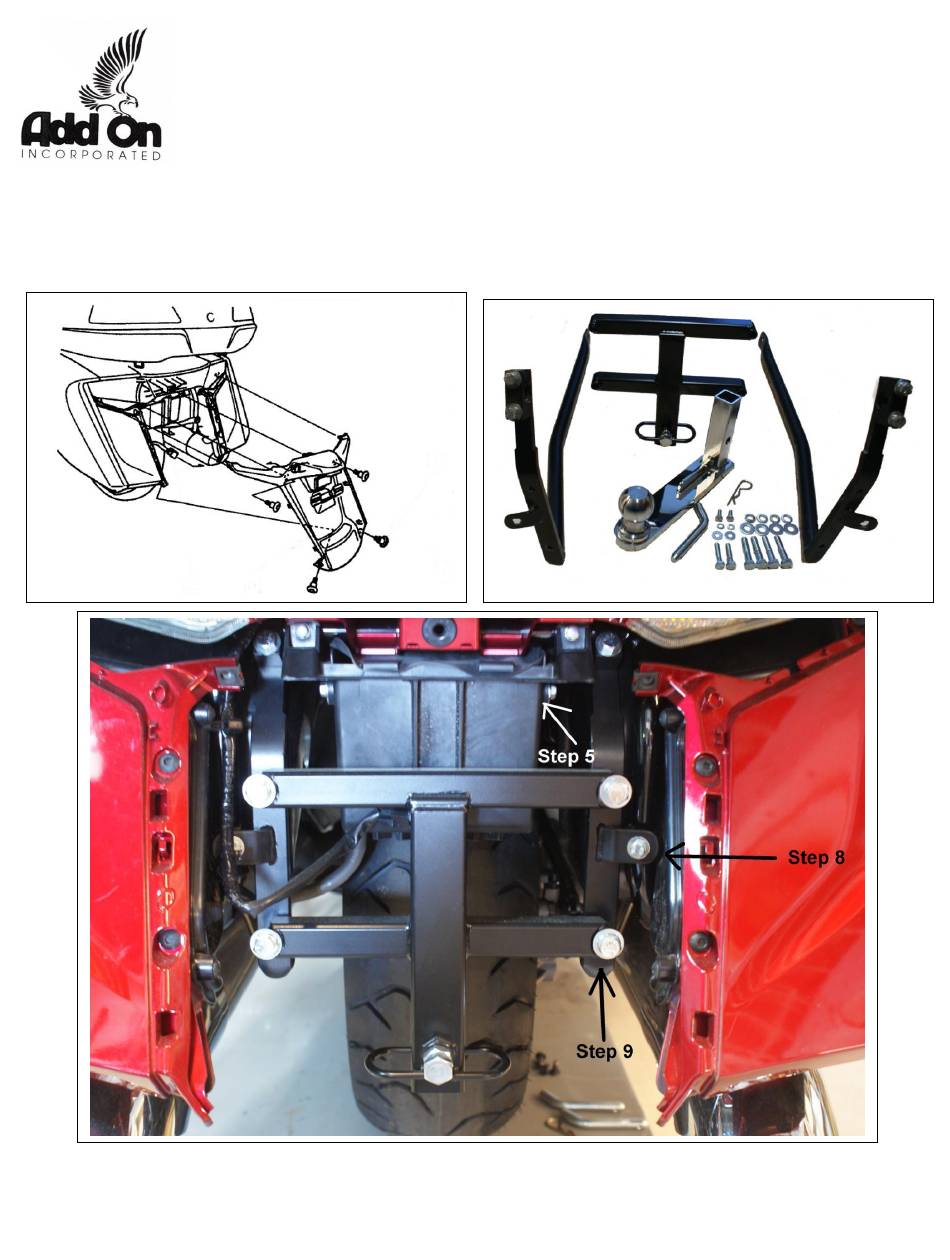

INSTALLATION INSTRUCTION
FOR 45-1806A
2012 GL1800 RECEIVER TRAILER HITCH
Not for Air Bag Models
®
NOTE: Read instructions thoroughly before installing. For weight loads/capacities, use trailer guidelines. Tongue weight 30 pounds.
1. Remove the tail light assembly according to service manual instructions.
2. Follow instructions 1 through 12 for Part 45-1806 included.
Note: Step 5. For the 2012 models the amplifier box must be dropped down to allow the clamp to be installed around the crossbar.
Step 4
Step 4
133 Gold Street, Worcester, MA 01608 Ph: 508-791-7552 Toll Free: 800-821-9861 Fax: 508-793-2919
email: info@addonaccessories.net web: www.addonaccessories.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45-1806A and is the answer not in the manual?

Questions and answers

Related Manuals for Add On 45-1806A

Summary of Contents for Add On 45-1806A

  • Page 1 INSTALLATION INSTRUCTION FOR 45-1806A 2012 GL1800 RECEIVER TRAILER HITCH Not for Air Bag Models ® NOTE: Read instructions thoroughly before installing. For weight loads/capacities, use trailer guidelines. Tongue weight 30 pounds. 1. Remove the tail light assembly according to service manual instructions.
  • Page 2 INSTALLATION INSTRUCTION FOR 45-1806 RECEIVER TRAILER HITCH Revised 4-12 Not for Air Bag Models ® NOTE: Read instructions thoroughly before installing. For weight loads/capacities, use trailer guidelines. Tongue weight 30 pounds. 1. Place bike on center stand. 2. Remove both side covers, step covers, rear passenger floorboards and rear case guards. Save hardware to replace these parts later. On the 2006 model, the case guard bolts and case guards were removed to gain access to the saddle trunk forward support bolt, thus, the original case guard bolts were replaced.
  • Page 3 Figure 1 Figure 2 Figure 2A Figure 3 Figure 4 Part 45-1806 GL1800 Receiver Trailer Hitch Not for air bag models. 133 Gold Street, Worcester, MA 01608 Ph: 508-791-7552 Toll Free: 800-821-9861 Fax: 508-793-2919 email: info@addonaccessories.net web: www.addonaccessories.net Figure 5 Figure 6 Arms, H bracket, receiver...
