powermesh PMLD Quick Start Manual

Let's get
connected.

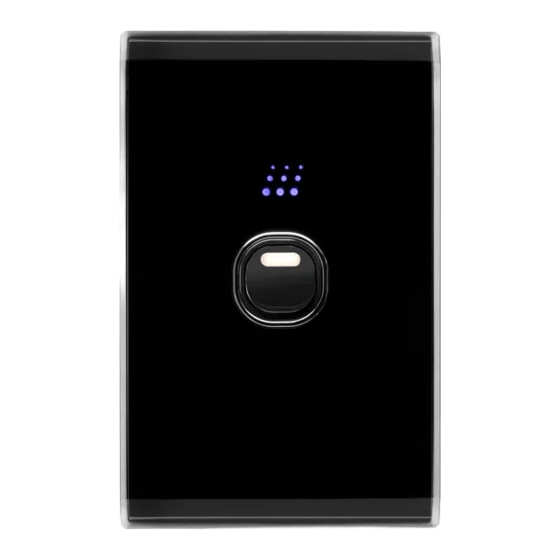

Light Dimmer.
2
Specifications
Part Number: PMLD, PMLDBK
Line Voltage Frequency: 50Hz Nominal
Load Brightness Control Range:
1% to > 95% (load dependent)
Rated Load:
Maximum Load 1A @ 250V / 250W
Minimum Load: 2W
Due to the variety of LED lamps / transformers /
CFLs, the maximum load and performance will
be specific to the product make and model.
Powermesh products must only be connected with the
Active and Neutral from the same RCD.
Surge protection is recommended at the main switchboard. Products
that are damaged by power surges are not covered by warranty.
Compatible load types
Dimmable LED
Drivers & Lamps
Electronic
transformers
Standard iron core &
toroidal transformers
Incandescent
Dimmable CFLs
1

Important - Read before installing.

Must only be installed by a
LICENSED ELECTRICIAN to local
wiring regulations. Failure to
follow these instructions can
result in serious injury or death.
Screw
mounting
holes

Using the Light Dimmer.

3
Light Dimming Button
with mini brightness
indicator.
• Press x 1 - on /off.
• Press & hold to dim.
• Press x 2 - full brightness
• Press x 3 - timed fade to off.
Set device Min & Max
dimming levels in
Zimi 'Settings' to avoid
flicker if necessary.
Mounting screws
This is a semiconductor
switching device, the mains
power MUST BE SWITCHED OFF
before performing any wiring or
maintenance work.
AVOID THE RISK OF ELECTRIC SHOCK
Once the product has been fastened to the wall,
ensure the supplied screw caps are placed firmly
into the screw mounting holes.
Factory Reset.
Remove the cover and press the RESET
button until the Powermesh indicator flashes blue.
Release the button and when the indicator turns
blue, it's ready to pair.
Powermesh
Status Indicator
See overleaf for the
meaning of each
colour status.
Reset Button
MAC ID
Unique product
serial number.
Snap on cover
