ACO Self® Europoint
installation instructions
Europoint Deep
1
Europoint Flat
For safe and proper use, always carefully read through the
instructions for use and all other documents enclosed with the
product, pass them on to the end user and keep them until the
end of the product's life.

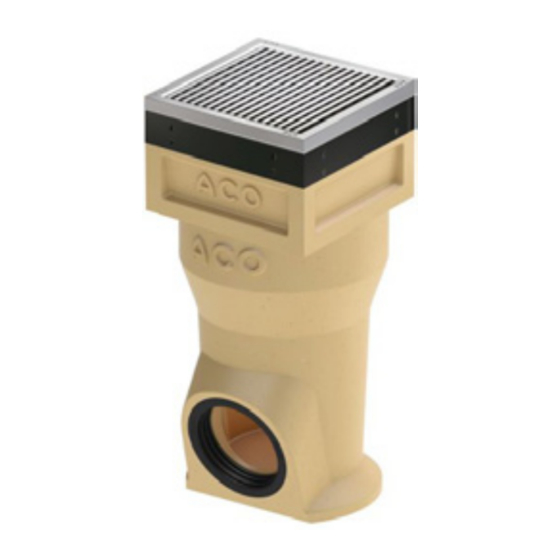

Europoint Deep/Round
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACO Self Europoint Flat
Summary of Contents for ACO Self Europoint Flat
- Page 1 ACO Self® Europoint installation instructions Europoint Flat Europoint Deep Europoint Deep/Round For safe and proper use, always carefully read through the instructions for use and all other documents enclosed with the product, pass them on to the end user and keep them until the...
- Page 2 Installation instructions Introduction ACO Hochbau Vertrieb GmbH (hereinafter referred to as ACO in the following) thanks you for your trust and hands over to you a product which is state-of-the-art and has been tested for proper condition within the framework of the quality controls implemented before delivery.
-
Page 3: Table Of Contents
ACO Self Europoint Flat ............8 ® ACO Self Europoint Deep ............ 10 ® ACO Self Europoint Deep/Round ........12 ® ACO Self Europoint - Accessories - Design frame ....17 ® Cleaning the ACO Self Europoint ......19 ® Notice ..............21... -
Page 4: For Your Safety
They are intended for draining public car parks, customer car parks or company car parks. The owner is always solely responsible for the planning and dimensioning of the ACO Self Europoint, inclu- ®... -
Page 5: Personal Protective Equipment
For your safety 1.3 Personal protective equipment Personal protective equipment must be made available to the person- nel and supervisors must check that it is used or worn. Figure Meaning Safety footwear provides good slip resistance, especially in wet conditions, as well as a high degree of penetration resistance (e.g. -
Page 6: Cleaning
Replace missing or defective parts 1.6 Disposal Local recycling yard - building material 2. Product Description 2.1 Product features Features of the ACO Self Europoint ® Manufactured according to DIN 1236, EN124, drive-on capable for passenger cars up to Class B Sockets as vertical, horizontal and horizontal with 15°... -
Page 7: Aco Self Construction Kit
Product Description 2.3 ACO Self® Construction Kit Grat From 2020 Galvanised steel Galvanised steel Galvanised steel Mesh grating Mesh grating ladder grating mesh grating mesh grating in plastic in plastic Car-accessible, Art.-No. 319620 Cl. B 125, Art.-No. 319626 Car-accessible, Art.-No. 319621... -
Page 8: Installation
Installation 3. Installation Control the scope of delivery before installation. Never install dama- ged parts and report them to ACO or your specialist dealer. 3.1 Connection to the pipework Local recycling yard – building material 3.2 ACO Self® Europoint Flat Installation situation: Garden/Patio or Terraces Product(s): ACO Self®... - Page 9 Installation 3.21 Installing the ACO Self® Europoint Flat Create installation space: C reate installation space (on-site) (approx. 0.5m x 0.5m x 0.5m). KG pipe (collar 110 mm) for Euro point vertical connection. KG pipe (socket 110 mm) for vertical ...
-
Page 10: Aco Self Europoint Deep
Europoint ® 350-400 1 = Grating 5 = Concrete 2 = ACO Self® Europoint Deep 6 = Pavior bedding*) 3 = KG pipe 7 = Rectangular concrete paviors 4 = Foundation concrete * Sand, gravel or grit bedding (unbound construction method = standard construction... - Page 11 Installation 3.31 Installing the ACO Self® Europoint Flat Create installation space/Lay KG pipe C reate installation space (on-site) (approx. 0.5 m x 0.5 m x 1.0 m) Increase the installation space accor- dingly when utilising a top chamber. K G pipe (socket 110 mm) for Euro- point horizontal connection.
- Page 12 T he rainwater downpipe must be connected before fi lling with bed- ding material when utilising the top chamber (3). Seal the top frame with ACO Water- seal if necessary. I nsert frame with grating (4) (approx. 3-5 mm below adjacent surface, e.
-
Page 13: Europoint Deep/Round
1 = Grating 5 = Foundation concrete 2 = Top chamber 6 = Concrete 3 = ACO Self® Europoint Deep/Round 7 = Pavior bedding*) 4 = KG pipe 8 = Rectangular concrete paviors * Sand, gravel or grit bedding (unbound construction method = standard construction... - Page 14 Installation 3,41 Installing the ACO Self® Europoint Deep/Round C reate installation space/ lay KG pipe: Create installation space (on-site) (approx. 0.5 m x 0.5 m x 1.0 m) Increase the installation space accor- dingly when intermediate elements are utilised.
- Page 15 P osition top part. A djust the top part to the surface by turning, tilting or height adjustment. Seal intermediate part with ACO Waterseal if necessary. I nsert frame with grating (approx. 3-5 mm below adjacent surface e.
- Page 16 Position top part. A djust the top part to the surface by turning, tilting or height adjustment. Seal intermediate part with ACO Waterseal if necessary. I nsert frame with grating (approx. 3-5 mm below adjacent surface e. g. paviors).
- Page 17 Installation F ill in with concrete to maximum 60 mm below surface. Foundation concrete quality minimum C12/15. Lay the paviors (wet in wet).
-
Page 18: Aco Self Europoint - Accessories - Design Frame
Depending on the grating (black or metal), the design frame can be fitted on the edge of the Europoint. The frame has 2 different heights and will be adapted to the grating height. 3.51 Installing the ACO Self® Europoint Deep/Round Height adjustment of the design frame: T he projecting height can be altered by rotating the design frame around its axis. - Page 19 Installation B end up the edges of the frame slightly (1) and push it on until it locks (2). S nap the design frame into place at 4 external snap-in points. Once installed, design frames cannot be dismantled again The design frame is correctly fitted on when the grating and frame edge are the same height.
-
Page 20: Cleaning The Aco Self Europoint
Intervals for cleaning are only recommendations and always have to be adapted to the individual demands: Clean the ACO Self® Europoint point drainage 1 – 2 times a year. Clean more regularly in the case of a high degree of soiling e. - Page 21 Cleaning the ACO Self® Europoint I nsert odour trap, leaf trap/sludge bucket and grating.
-
Page 22: Notice
Notice 5. Notice These pages are available for handwritten notes e. g. details for the products utilised. - Page 23 Notice...
- Page 24 ACO Hochbau Vertrieb GmbH Postbox 11 25 97661 Bad Kissingen Germany Neuwirtshauser Straße 14 97723 Oberthulba Germany Tel. 09736 41-60 Fax 09736 41-69 ACO. creating www.aco-hochbau.de the future of drainage...
