Vynco VMOSS Quick User Manual

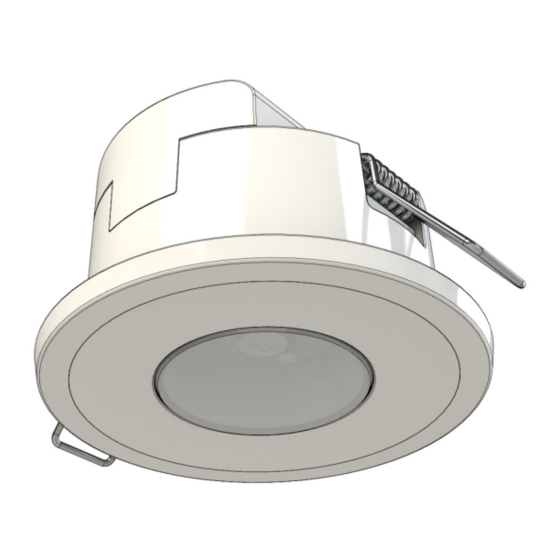

FLUSH MOUNT 360° CEILING SENSOR VMOSS

ELECTRICAL SPECIFICATIONS

Supply Voltage Range
Load Rating
Operating temp
Wire size

TIMING AND LUX SPECIFICATIONS

Detection Method
Detection Angle
Detection Range
Time Adjustment
Lux Adjustment
Ceiling Cut-Out Size

INSTALLATION:

This product should be installed by a suitably
qualified person in accordance with Australian and
New Zealand Wiring rules.
Installation Position:
Ideally the sensor should be positioned between 2.4
and 4m above the area to be scanned.
To avoid nuisance tripping installation should try
and avoid areas:
1. With water features such as swimming pools
or ponds.
2. Near heat sources such as air conditioners,
dryers, fire places or heaters.
3. Areas which are subject to direct bright or
reflected lights or sunlight.
4. Areas which are frequented by animals, such
as pets or birds.
230-240Va.c. 50Hz
2000W Incandescent
400W LED
450W Fluorescent
400W Motor / Fan
Range 5°C - 40°C
1x 2.5mm² to
2x 1.5mm²
Passive Infrared
(PIR)
360°
6m Diameter
5 seconds to 30min
10 to 2000Lux
60mm Diameter
Field Of View Diagram:
360°
6m Diameter
