- Page 1 SPA1010 Power Amplifier User Manual UM60010-E01B...
-
Page 2: Table Of Contents
OOLING EQUIREMENTS ....................5 ROPER OWER DAPTER ............................. 5 LEANING ......................... 5 BNORMAL ONDITIONS SPA1010 POWER AMPLIFIER INTRODUCTION ................7 QUICK START ..........................8 ........................8 ENERAL NSPECTION ........................9 RONT ANEL .......................... 9 ANEL OPERATION ........................... 10 APPLICATION EXAMPLES ......................11 TROUBLESHOOTING ........................ -
Page 3: General Safety Summary
SPA1010 Power Amplifier User Manual General Safety Summary This chapter contains information and warnings that must be followed to keep the instrument operating under the appropriate safety conditions. In addition to the safety precautions specified in this section, you must also follow recognized safety procedures. -
Page 4: Cooling Requirements
SPA1010 Power Amplifier User Manual dry environment with an ambient temperature range of 0 ° C -40 ° C. Note: Direct sunlight, radiators, and other heat sources should be taken into account when assessing the ambient temperature. WARNING: Do not operate the instrument in an explosive atmosphere or wet and damp conditions. -
Page 5: Use The Proper Power Adapter
SPA1010 Power Amplifier User Manual 1.4 Use The Proper Power Adapter Use only the power adapter provided in the accessories. Use only the power cord specified for this adapter and certified for the country of use. CAUTION: Do not use any other adapters to supply power for the instrument, or it may cause degradation or perpetual damage. - Page 6 SPA1010 Power Amplifier User Manual Proper use of the instrument depends on careful reading of all instruction and labels. WARNING: Any use of the instrument in a manner not specified by the manufacturer may impair the instrument’s safety protection. This instrument should not be directly connected to human subjects or used for patient monitoring.
-
Page 7: Spa1010 Power Amplifier Introduction

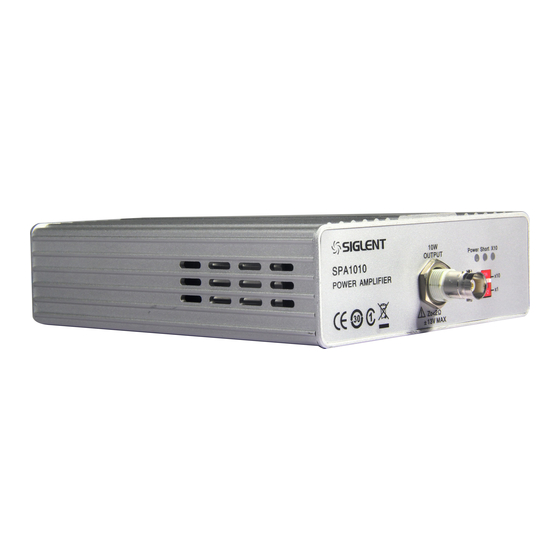

SPA1010 Power Amplifier User Manual SPA1010 Power Amplifier Introduction The SPA1010 is a power amplifier designed to source up-to 1 MHz full power bandwidth at 90 V/us slew rate. It is ideal for increasing the power output for any SIGLENT Function/Arbitrary Waveform Generators but can also be used with other manufacturers’... -
Page 8: Quick Start
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT would not provide free maintenance or replacement. Inspect the instrument. -
Page 9: The Front Panel
SPA1010 Power Amplifier User Manual 3.2 The Front Panel Output Terminal Status Indicators Gain Switch Output Switch Switch Figure 1 SPA1010 Front Panel Status Indicators Power: On Green, indicates that the power supply is operating and the instrument is on. -
Page 10: Operation
SPA1010 Power Amplifier User Manual Operation For the details of each selection on the front panel of SPA1010, see table below: Function Setup Explanation Sets the gain. The input ranges of signals Gain X1, X10 are different with different gain settings. -
Page 11: Application Examples
Application Examples Power Component Measurements The SPA1010 can be used to amplify the output signal of a generator to evaluate the performance of a power component. In virtue of its wide bandwidth and high speed output, users can evaluate or test the components through various waves, pulses and arbitrary waves. -
Page 12: Troubleshooting
SPA1010 is abnormal (over temperature) to avoid damage. SPA10100 must be restarted after the protection is activated. We suggest you to inspect the load of the SPA1010 or the ambient temperature and make sure both of these specifications are within the limits when the circuit protection is activated. -
Page 13: Specifications
The output power of the SPA1010 is limited by frequency. When the input frequency is between 500 Hz and 200 kHz, the SPA1010 is able to deliver 10 watts into an 8 Ω load. As the SPA10100 has overload protection circuit and thermal protection circuit to prevent permanent damage, it will not deliver 10 watts when the input frequency is below 500 Hz and above 200 kHz. - Page 14 SPA1010 Power Amplifier User Manual ≥ 90 V/μs (Note Slew Rate ≤ 4% Overshoot Maximum Allowed Access to 1 μF Capacitive Load Over temperature Protection 60 ℃ Threshold Power In Rated Voltage 12 Vdc Rated Current Others Operating Temperature 0 ~ 40℃...
-
Page 15: Contact Siglent
SPA1010 Power Amplifier User Manual Contact SIGLENT America SIGLENT Technologies NA, Inc 6557 Cochran Rd Solon, Ohio 44139 Tel: 440-398-5800 Toll Free:877-515-5551 Fax: 440-399-1211 info@siglent.com www.siglentamerica.com Headquarters SIGLENT TECHNOLOGIES CO., LTD. Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao’an District, Shenzhen, 518101, China. - Page 16 SPA1010 Power Amplifier User Manual WWW.SIGLENT.COM 16 / 16...
