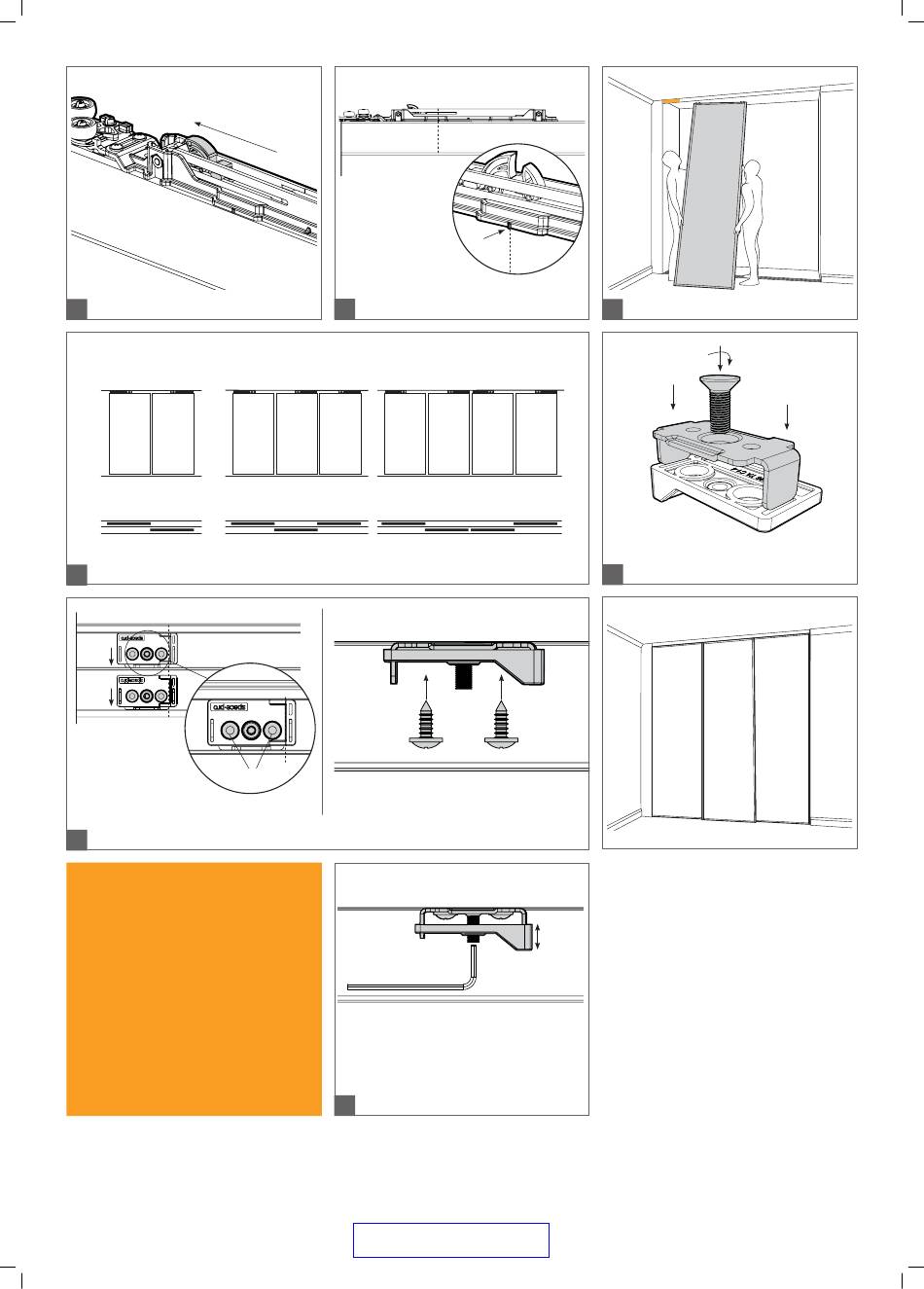

Spacepro Contour Assembly Instructions page 2

Continued for both aluminium & steel doors.
Prime the soft close, by sliding the nib fully across
4
until you hear a click.
FRONT VIEW
2 doors
(Middle door shown here, shows a right
side closing door.)
PLAN VIEW
7
Position your doors to the fully closed position depending on your configuration (as shown above).
Front of
Track
Pilot Holes
Using a pencil transfer the indicator mark from the door to the underside of the track and align the pin.
1- Align pin as shown.
9
2- Make sure pin is fully against the back walls of track.
if the soft close
doesn't engage
first time.
Page 2 of 2
Using a pencil transfer the indicator mark from the soft
5
close unit onto the door.
3 doors
a
3- Drill pilot holes.
4- Fix using the screws provided (a).
Use an Allen key to adjust the height of the pin.
(If the door is lower than it should be, the pin can be brought down so
10
it will engage with the soft close).
www.slidingwardrobeworld.com
Indicator mark
Insert one door at a time into the track.
6
Repeat where necessary.
4 doors
To assemble the soft close pin, align the steel plate to
the plastic bottom. Insert tabs into plastic slots and
8
tighten the screw with an Allen key.
a
SPR_INSTRUC_SC_05.2017
