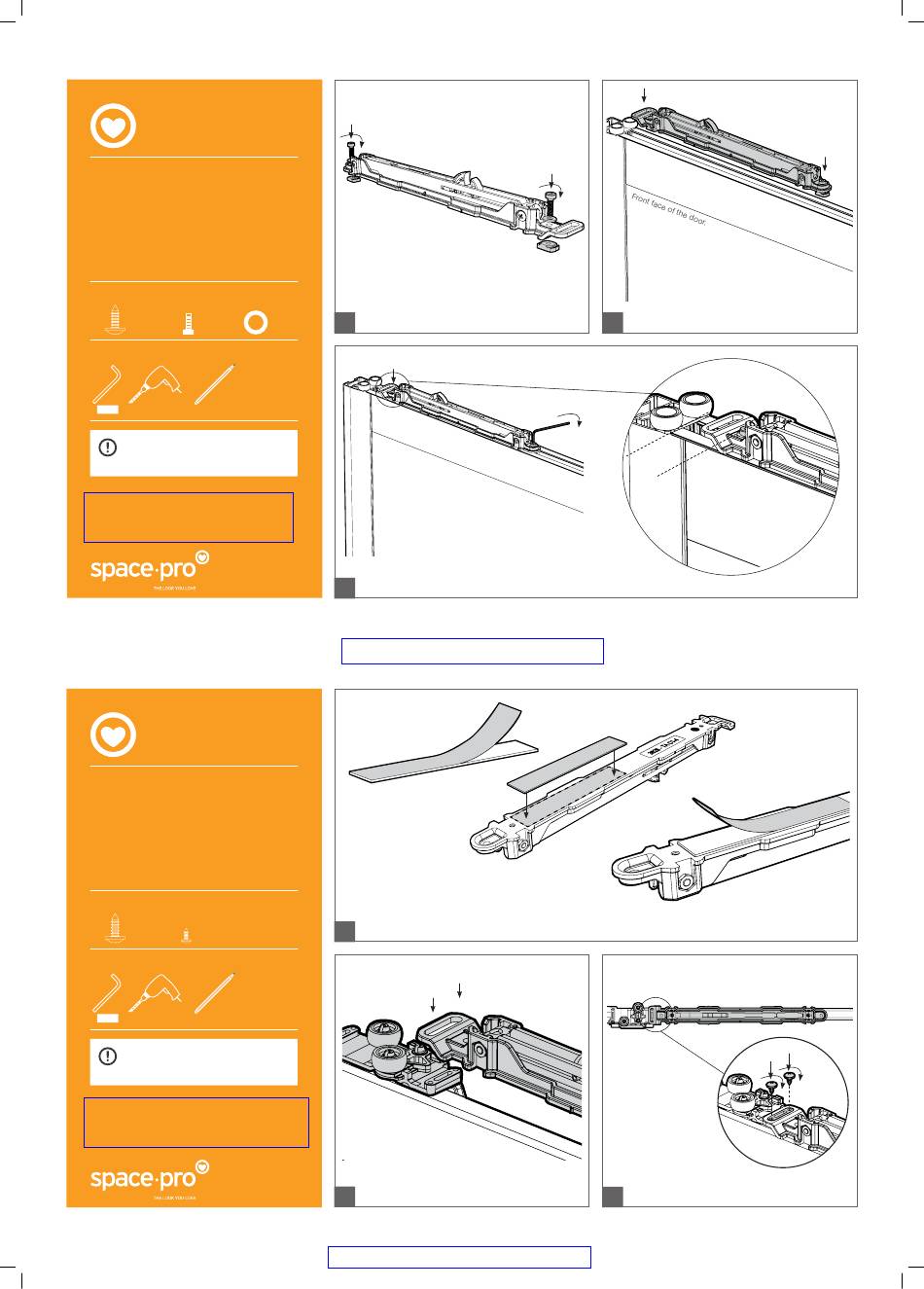

Spacepro Contour Assembly Instructions

how to fit the
soft close to an
aluminium door
Assembly Instructions
Fixings included:
(a) (b) (c)
x2 x2
Tools required:
3mm
Please check your opening for any
hidden electrical wires and water
pipes before screwing.
Watch the 'how to' video instructions online.
https://slidingwardrobeworld.com/information/
how-to-install-sliding-wardrobe-doors/
Maxima,
In this range: Contour, Ellipse,
Minimalist, Titan, Switch and Domalti.
how to fit the
soft close to a
steel door
Assembly Instructions
Fixings included:
(a) x2 (d) x2
Tools required:
3mm
Please check your opening for any
hidden electrical wires and water
pipes before screwing.
Watch the 'how to' video instructions online.
https://slidingwardrobeworld.com/information/how-
to-install-sliding-wardrobe-doors/
In this range: Heritage, Classic and Shaker.
Page 1 of 2
b
c
Insert the 2x M4 screws (b) using the washers (c) provided.
1
Screw on the cams but don't tighten all the way yet.
x2
Using an Allen key, tighten both the cams so they lock into place.
V1
3
(Ensure the soft close doesn't slide, but don't over tighten).
Please see reverse side for continuation of instructions.
Gliss
www.slidingwardrobeworld.com
1
1- Remove the backing from one side of the double sided tape.
2- Stick the tape to the soft close housing.
1
3- Remove the remaining backing from the double sided tape.
Align the slot on the soft close housing with the tab on
the top guide. Stick the soft close to the top edge of the
V1
2
door ensuring the slot has located on to the tab.
Please see reverse side for continuation of instructions.
www.slidingwardrobeworld.com
b
c
2
Note:
Do not push the unit up against the
top guide wheels, leave a 20mm gap.
Ensure they move freely
2
3
3
Align and centralise the soft close in the centre of the top rail
and slot the cams into the gap in the top rail.
20mm 20mm
d
d
Keeping the soft close parallel to the door.
Secure the soft close in place by screwing the 2x 3mm
screws (d) into the holes in the top guide tab.
SPR_INSTRUC_SC_05.2017
