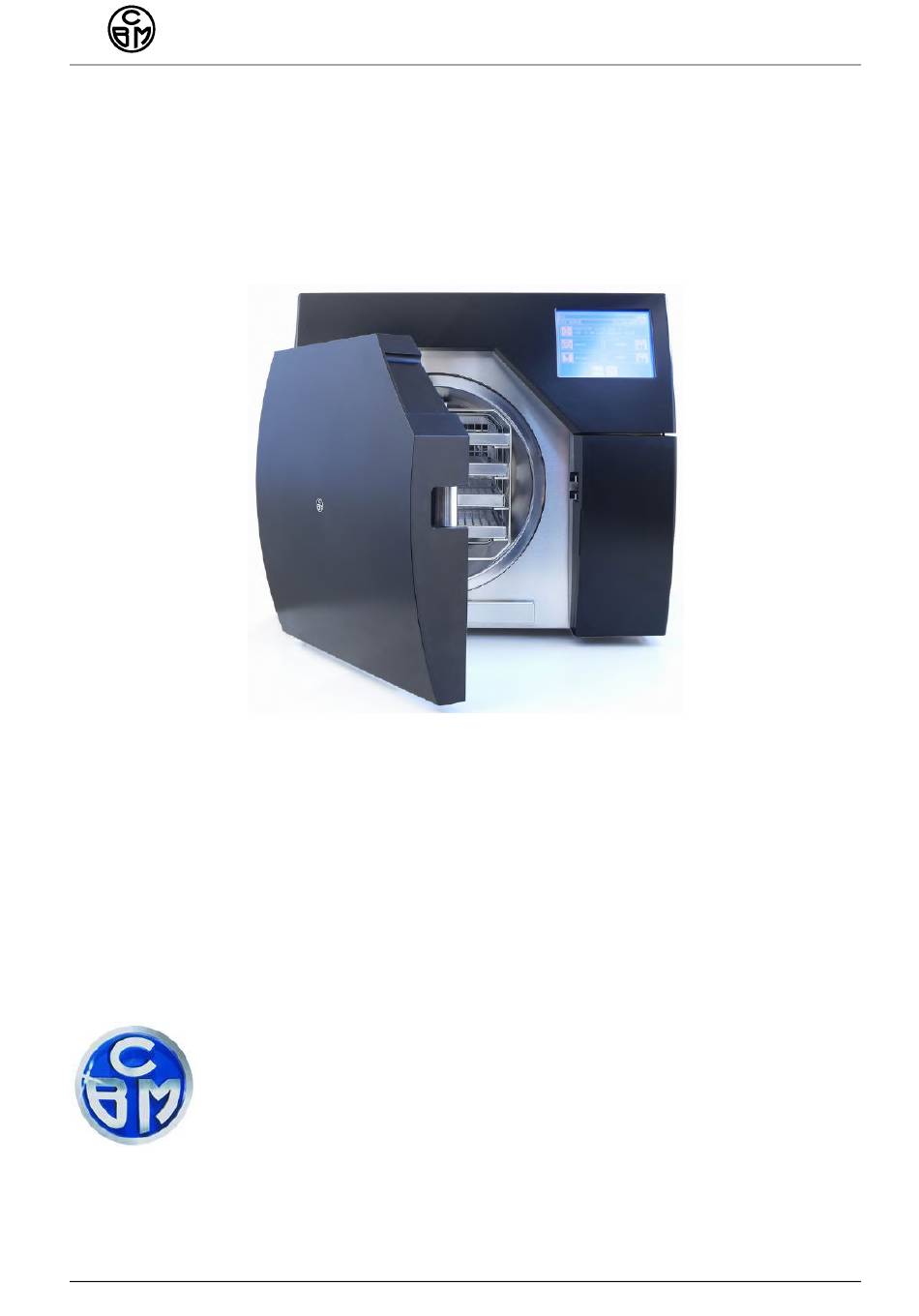

- Page 1 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy Steam Sterilizer SST 1700B – SST 2200B INSTRUCTIONS MANUAL Rev. 06 – 18/02/2019 Manuale SST1700-2200 r06 CE-1282 EN page 1 of 34...
-
Page 2: Table Of Contents
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy INDEX WARNINGS ............... 3 USE RECOMMENDATIONS ..........3 DISPLAY VIEW page 1 – TOUCH SCREEN ....5 DISPLAY VIEW page 2 – TOUCH SCREEN ....6 COMPONENTS –... -
Page 3: Warnings
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy WARNINGS WARNING: Burn hazard: The inner parts of the chamber and door reach high temperatures. WARNING: Electrocution hazard: Before removing any part of the sterilizer, switch off the appliance and disconnect the power cable. - Page 4 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy COMPONENTS – FRONT VIEW Door locking bolt Door seal Sterilization chamber Door locking hooks Display / Touch screen Upper USB port – (not active) Lower USB port Printer (Optional) Manometer...
-
Page 5: Display View Page 1 - Touch Screen
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy DISPLAY VIEW page 1 – TOUCH SCREEN Information bar it shows important information for the appliance operation, here the writing “Cycle completed” appears Maintenance icon, when blinking it shows that appliance needs maintenance, see Maintenance Menu USB Flash drive/ DISK icon, shows whether the USB flash drive is stuck into... -
Page 6: Display View Page 2 - Touch Screen
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy DISPLAY VIEW page 2 – TOUCH SCREEN Information bar it shows important information for the appliance operation Maintenance key/ menu – it contains the maintenance list and schedule PRINTER key/ menu –... -
Page 7: Components - Rear View
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy COMPONENTS – REAR VIEW 230 Volt socket with Fuse box Reset buttons chamber for Max. thermostats Reset buttons for the steam generator Max. thermostat Steam generator drainage tap, to be used by an authorized technician only Clean water tank drainage tap Waste water tank emptying tap, to be used by an authorized technician only... -
Page 8: Keys Description
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy KEYS DESCRIPTION START/ON key: pressing it locks the door completely and starts the selected cycle DIRECTION keys: scrolls the menu in the direction selected Type B standard CYCLE key: selects the 134°... -
Page 9: Icons Description - Machine Status
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy DELAYED START key: to postpone the beginning of a cycle (delayed start) MAINTENANCE Menu/key: contains the maintenance list and schedule PRINTER Menu/key: to select or unselect the integrated printer and to choose the print mode SETTING Menù/key: by pressing the indicators and ENTER key it is possible to see and eventually change the setting parameters (see... -
Page 10: First Use
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy 4. Check that the appliance is positioned slightly inclined towards the back. To this end, pour a small quantity of water (10cc) in the chamber and ensure it flows towards the bottom. - Page 11 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy Tips: ♦ It is appropriate to provide for an adequate supply of demineralised water. ♦ Ensure that the hosepipe in the container is always in the water during filling. When loading is completed the display shows the operation end, press STOP and ESC to go back to the main pages Disconnect the hosepipe by pressing the Blue button on the pipe-fitting and pulling...
-
Page 12: General Instructions
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy GENERAL INSTRUCTIONS (13) – GREEN POWER SWITCH: Located under the display cover; when pressed switches the appliance ON enabling its use. (28) –... - Page 13 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy DEMINERALISED WATER Please remember to use only demineralised water without additives.. WARNING: in case of loading of not demineralised water or with a very high conductivity (more than 80 µS), the water loading will stop indicating that water is not appropriate.
- Page 14 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy In the SETTING menu select the STAND BY function and select after how long (15 / 30 / 60 / 90 / 120 min.) the appliance shall activate automatic STAND BY, press ENTER to confirm. Apart from the steps when the appliance is sterilizing, the STAND BY function becomes active when the appliance has received no commands during the set time.
- Page 15 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy Use of the “ECO” function the ECO function can be used to optimize and reduce the electric power consumption and the total cycle life, by optimizing the time according to the load. When the ECO function is active, the DRYING key function is disabled.
- Page 16 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy SETTING MENÚ By this key you can get to the following settings/ adjustments: ♦ INFORMATION ♦ LCD CONTRAST ♦ LCD INTENSITY ♦...
- Page 17 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy ♦ WATER LOADING SELECTION - Use of the “WATER LOADING SELECTION" function It allows to select the water loading mode. To modify the load kind a Password shall be entered. The pre-set password is “00000”, it can be modified and a new Password can be saved through the PASSWORD menu.
- Page 18 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy 9 – ANTI-BACTERIA AIR FILTER: During the drying phase with the door closed, the machine needs air from the outside to balance the pressure inside the chamber.
-
Page 19: Test Cycles
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy TEST CYCLES TEST CYCLES HELIX TEST - BOWIE & DICK TEST Using the appropriate, commercially available process simulators it is possible to check steam penetration in narrow lumen bodies. -
Page 20: Cycle Type Use Modes
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy CYCLE TYPE USE MODES CYCLE TYPE DESCRIPTION OF INTENDED USE MATERIAL TYPE Narrow lumen load: Sterilization of all kinds of wrapped Turbines, probes, and unwrapped products, solids, Cycle Type B... -
Page 21: Sterilizing Cycle
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy STERILIZING CYCLE Material Type Temperature Time Drying - Unwrapped solid instruments Cycle Type S and wrapped simple hollow 134° C 4 min. 0 / 5 / 10 min. -
Page 22: Spare Parts
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy SPARE PARTS Code Description 7000 210 Door seal (n° 2, page 4) 2310 100 Bacteriologic filter (n° 9, page 4) 2200 081 Safety valve (n°... -
Page 23: Cleaning
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy CLEANING For proper cleaning use neutral detergents only and rinse with plenty of water. The door seal can be cleaned with some cotton soaked in alcohol. Clean all plastic parts with cotton and alcohol based neutral detergents, always testing compatibility on hidden parts. -
Page 24: Standards Tables (En 13060)
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy STANDARDS TABLES (EN 13060) MAXIMUM ADVISABLE LIMITS FOR CONTAMINATING AGENTS AND WATER SPECIFICATIONS FOR STEAM STERILIZATION Contaminants of condensate and feed water Feed water Condensate Evaporate residue... -
Page 25: Troubleshooting Guide
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy TROUBLESHOOTING GUIDE WARNING: Before calling the Service check the following guide and the enclosed alarms table. FAULT CAUSE REMEDY a) Check the power supply Plug in the socket, green a) No power supply b) Replace the fuses in the fuse box... -
Page 26: Alarms Table
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy ALARMS TABLE Before calling the customer service check the Troubleshooting Guide Before calling the customer service check the Troubleshooting Guide Before calling the customer service check the Troubleshooting Guide Before calling the customer service check the Troubleshooting Guide ALARM PROBABLE ORIGIN... - Page 27 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy ALARM PROBABLE ORIGINE SOLUTION Check that the plastic door is correctly coupled with the Alarm 45 Door open during cycle cross piece and restart the cycle Repeat the cycle.
-
Page 28: Specifications
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy SST 1700 B SST 2200 B SPECIFICATIONS Control Microprocessor Sterilizing chamber materials AISI 304 - 18/10 Stainless steel Outer structure materials AISI 304 - 18/10 Stainless steel and ABS+PC Chamber dimensions Ø... -
Page 29: Integrated Printer (Optional)
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy INTEGRATED PRINTER (Optional) To select or clear the integrated printer and to choose the print modes select the PRINTER Key/Menu. LIST DESCRIPTION Diameter and width of paper roll Max Ø... - Page 30 C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy PAPER REPLACEMENT 1) Pull the cover lever (3) WARNING: do not use excessive force to avoid damaging the lever. 2) Introduce the paper roll with the lead edge in the lower area. 3) Pull the paper lead edge out of the printer for about 3 cm.
-
Page 31: Hydraulic Diagramme
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy HYDRAULIC DIAGRAMME Rev. 06 – 18/02/2019 Manuale SST1700-2200 r06 CE-1282 EN page 31 of 34... -
Page 32: Hydraulic Diagramme Key
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy HYDRAULIC DIAGRAMME KEY Generator drainage tap Load tank clean water drainage tap Waste tank dirty water drainage tap Waste tank quick-release drainage tap Load tank clean water quick-release filling tap Clean water Load tank Waste load water tank... -
Page 33: Safety Data Table
C.B.M. S.r.l. a socio unico - Medical Equipment – Via Castello 10, 26038 Torre dé Picenardi (CR) - Italy SAFETY DATA TABLE Fractional Vacuum Steam Sterilizer Appliance C.B.M. S.r.l. Manufacturer SST 1700 B - SST 2200 B Model CEI EN 61010-1 Reference Standards CEI EN 61010-2-40 Label Data... -
Page 34: Ce - Declaration Of Compliance
Carlo Busatti propria responsabilità dichiara che la seguente declare, under our own responsibility, that the apparecchiatura: following electrical appliance: Steam sterilizer Sterilizzatore a vapore SST 1700B Articolo Article SST 2200B /W+P Numero di serie Serial Number Costruito in data: Manufacture Date:...
