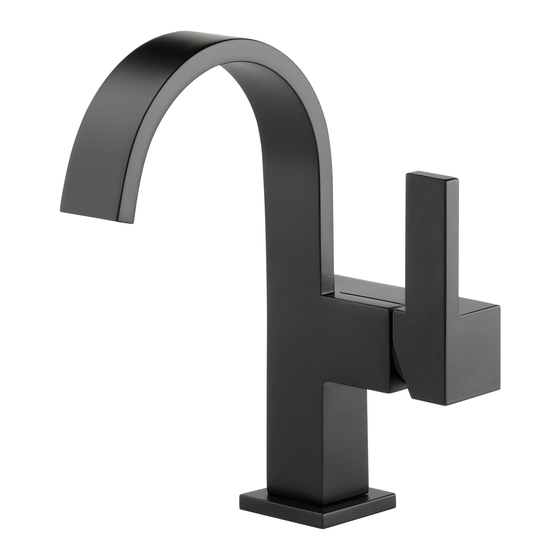

Models/Modelos/Modèles
65080LF-▲ & 65480LF-▲
65080LF-▲-ECO & 65480LF-▲-ECO
Series/Series/Seria
Siderna ®
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Note: Drain sold separately. / Nota: El desagüe se vende por separado. / Note : Renvoi vendu séparément.
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com
80009
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
®
®
80009
SINGLE HANDLE LAVATORY AND
VESSEL FAUCETS
LLAVES DE AGUA DE UNA MANIJA
PARA LAVAMANOS Y ARTESAS
ROBINETS À UNE MANETTE POUR
LAVABO ET CUVETTE
65080LF-▲-ECO
1
65480LF-▲-ECO
T E FLO N
5/9/17 Rev. E
Advertisement
Table of Contents
Related Manuals for Brizo Siderna 65080LF Series
Summary of Contents for Brizo Siderna 65080LF Series

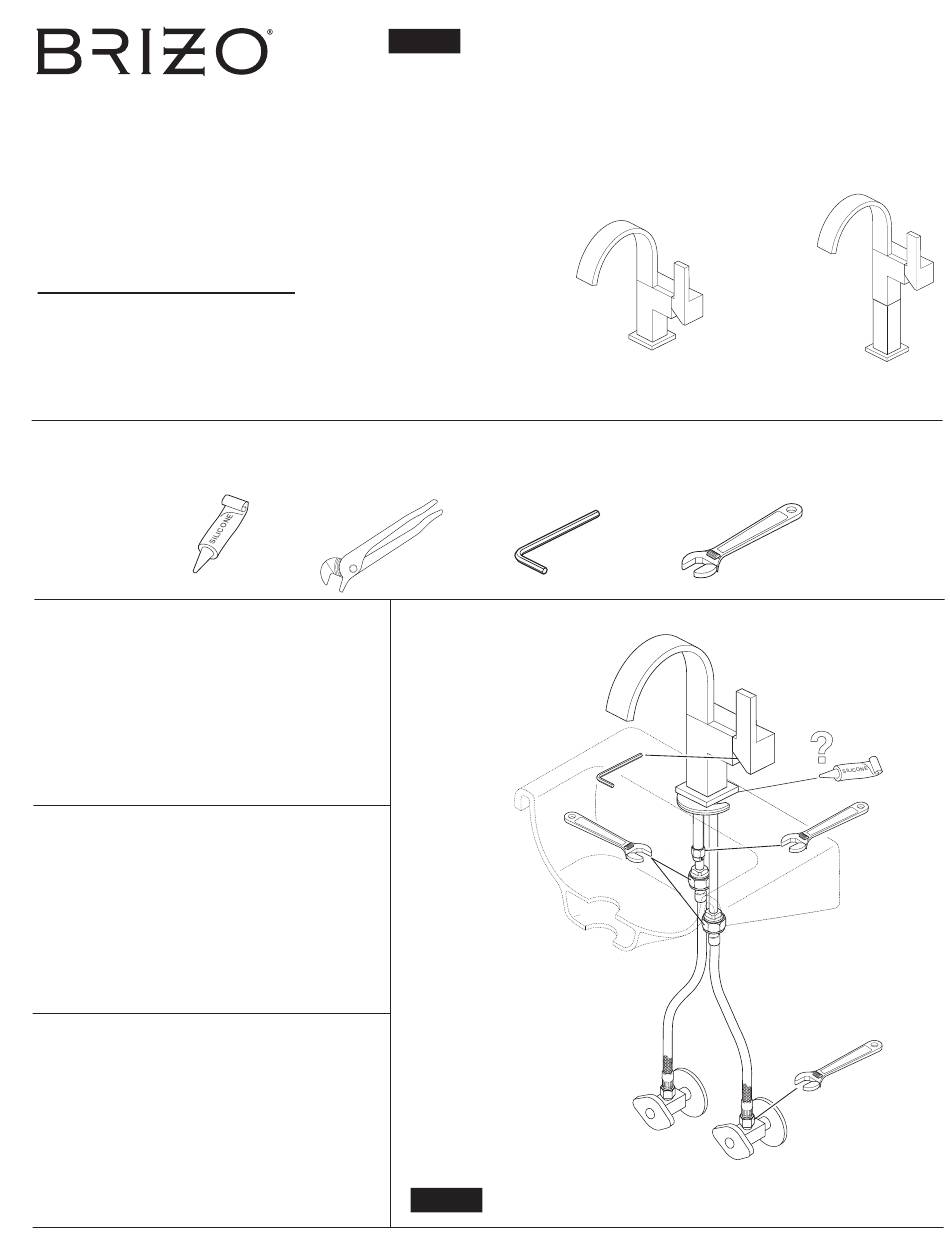

- Page 1 Note: Drain sold separately. / Nota: El desagüe se vende por separado. / Note : Renvoi vendu séparément. You may need/Usted puede necesitar/ Articles dont vous pouvez avoir besoin: T E FLO N T E FLO N For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
