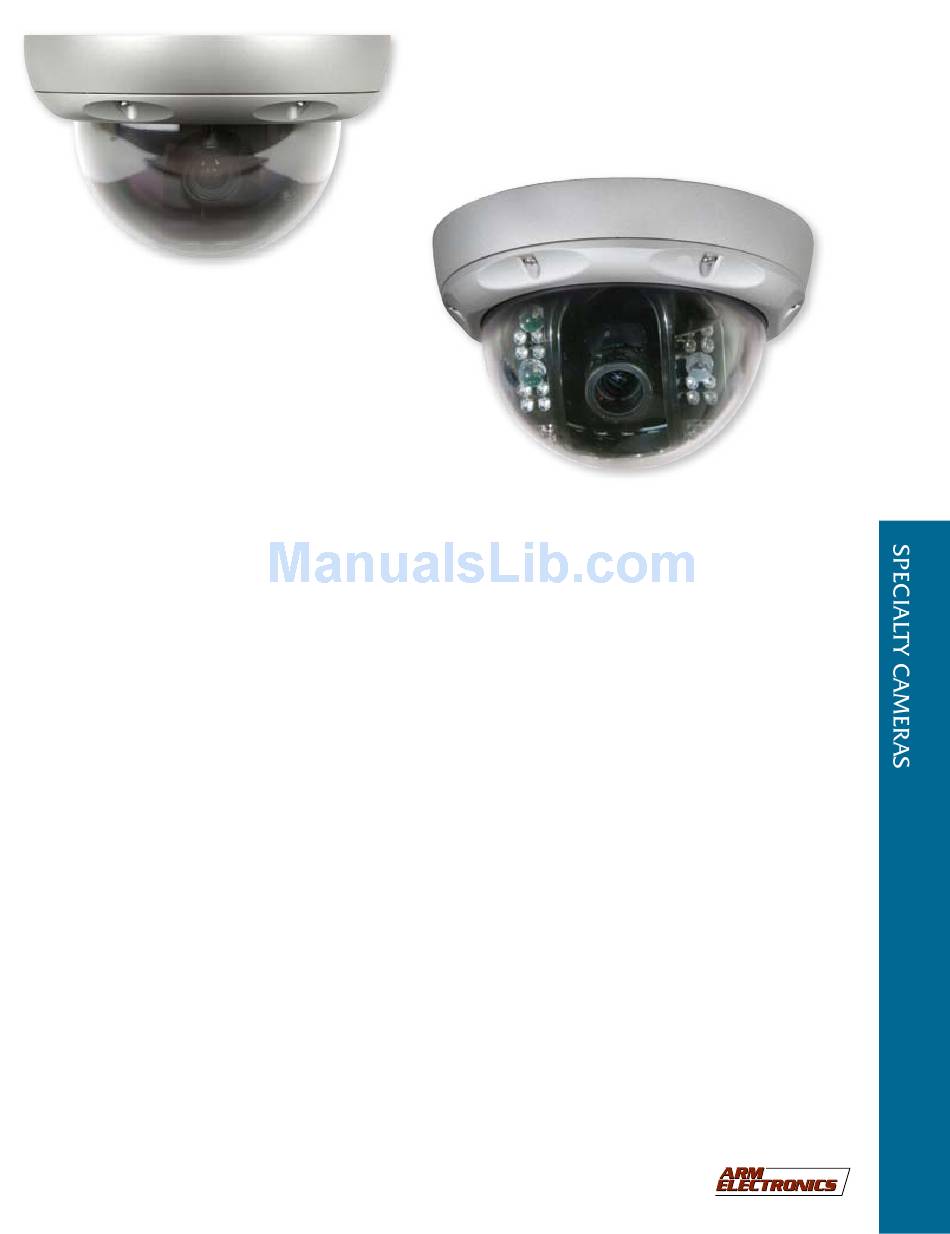

Arm Electronics IP540MD5VAIVP Features

Color Varifocal Vandal
IP Dome Cameras
HiGH resOlUtiOn
ip540mdVaiVp
4-9mm Auto Iris Lens
ip540md5VaiVp
5-50mm Auto Iris Lens
sUper HiGH resOlUtiOn
ip620mdVaiVp
4-9mm Auto Iris Lens
ip620md5VaiVp
5-50mm Auto Iris Lens
prOdUct featUres
■
540 or 620 Lines of Resolution
■
1/3" Imaging Device
■
4-9mm or 5-50mm Auto Iris Lens
■
12VDC Power (750mA)
■
3-Axis Camera Mount
■
Web Interface (Browser Based)
■
Compression (MPEG 4)
■
30FPS Real-Time Recording
■
Lux (0.7 @ F1.2) (IP540)
■
Lux (0.5 @ F1.2) (IP620)
■
BNC Video Output
■
Dimensions (6.4"x 3.9") (4-9mm)
■
Dimensions (6.4"x 5.5") (5-50mm)
■
Weight (1.98 lbs) (4-9mm)
■
Weight (2.65 lbs) (5-50mm)
■
Operating Temp (14°F-122°F)
■
Optional Wall Mount (VPMDWMT)
■
Weatherproof (IP66)
w w w . a r m e l e c t r o n i c s . c o m
BE ANYWHERE
WitH tHESE iP VANDAL
DOME CAMERAS
Color Varifocal Vandal
Infrared IP Dome Cameras
HiGH resOlUtiOn
ip540mdVaiVpdnir
3.7-12mm Auto Iris Lens
sUper HiGH resOlUtiOn
ip620mdVaiVpdnir
3.7-12mm Auto Iris Lens
prOdUct featUres
■
540 or 620 Lines of Resolution
■
1/3" Imaging Device
■
3.7-12mm Aspherical IR Lens
■
True Day Night Cut Filter
■
Up to 90' Illumination
■
12VDC Power (750mA)
■
3-Axis Camera Mount
■
Web Interface (Browser Based)
■
Compression (MPEG-4)
■
30FPS Real-Time Recording
■
Lux (0.0 Built in IR on)
■
BNC Video Output
■
Dimensions (6.4"x 3.9")
■
Weight (1.98 lbs)
■
Operating Temp (14°F-122°F)
■
Optional Wall Mount (VPMDWMT)
■
Weatherproof (IP66)
