Arm Electronics OCD10XMSD Installation And Operation Manual

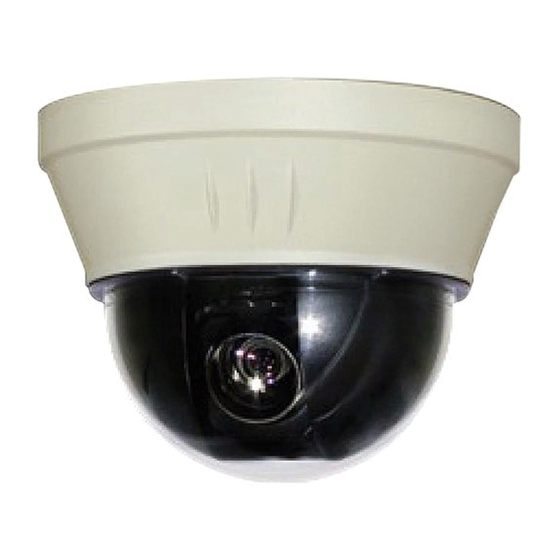

Mini-high speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mini-high Speed Dome
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCD10XMSD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arm Electronics OCD10XMSD

Summary of Contents for Arm Electronics OCD10XMSD

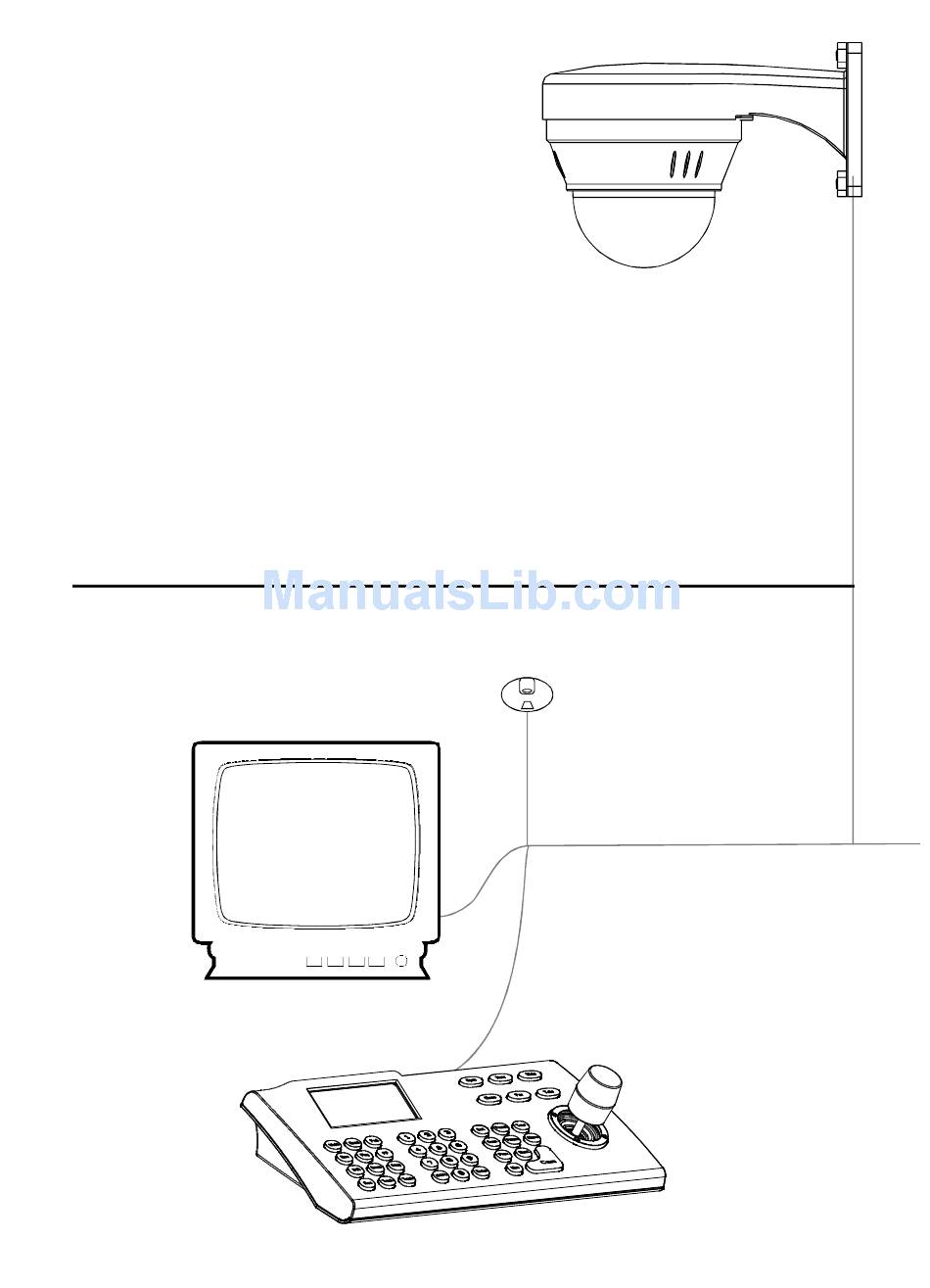

  • Page 1 Mini-high Speed Dome Installation and Operation Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENT 1.Precaution----------------------- --------------- ---------------------------------------------- 1 2.Performance & Feature--------------------------------- ------- -------------------------------2 2.1 Dome parameter--------------- ------------------------------- ----- -----------------2 2.2 Camera parameter----------- ------------------------------------- ------------------------2 2.3 Dome performance& Feature----------- ------------------------ -------------------------3 3.Function instru ction----------------------------------------- ---- ------------ ---- -4 3.1 Auto execute funct ion--------- ---- --------------------------------------------------- 3.2 Surveillance function----------- ----------------------------...
  • Page 3 7. Privacy zone masking---------------------------------------------------------------------------29 8. Installation instruction-------------------------------------------------------------------------30 8.1 Dimension of product--------------------------------------------------------------------- 30 8.2 Installation of product---------------------------------------------------------------------30 8.3 Installation of camera----------------------------------------------------------------------31 9. Appendix----------------------------------------------------------------------------------------33 9.1 Menu index------------------------------------------------------------------------------33 9.2 Trouble shooting------------------------------------------------------------------------ 34 9.3 The cleaning of the transparent cover------------------------------------------------- 34 9.4 Rs485 Bus basic knowledge----------- ---------------------- ------- ----- ---------------35...

  • Page 4: Precaution

    Precaution 、 1 Precaution Please read the manual and product label carefully before installing the speed dome. Ø 1.The product installation and use of the product must comply with the relevant laws of the country. Ø Electrical safety 1.Strictly conform to country and local electrical safety standard when using or installing the product. 2.Using factory's power adapter.

  • Page 5: Installation Instruction

    Installation instruction 2. Installation of product 1.2 Item no corresponding sheet 1 Get the products out from the packages. As Picture 2.1-1 P i c t u re M ou nt P l a ce I n door on ly C eil i ng I n d o or a nd W a ll...
  • Page 6 Installation instruction 3. Insert three screws in the mini dome into the apertures on the base board(pls refer to ), then 1. Dimension of product turn 15 degrees in clockwise(pls refer to ). as picture below 2 4 9 # 2 . 1 -3 Picture2.2 4 Using 3 additional M3*5 screws to lock tightly.
  • Page 7 Installation instruction 、 2 Make the wall bracket as the model on installation wall, and draw the central position of the drill hole. (As picture 2.2-2) 75．00 Picture2.2-4 、 5 Pls make the wall bracket aims at the M8 screw, so that the output cable will be locked in the hole of motherboard bracket, and use the M8 screw to lock the wall bracket tightly.

  • Page 8: Dome Parameter

    Dome performance 4.Dome performance 4. 1 Dome parameter Setting Power supply Power supply （ ） DC12V Baudrate RS485 2400/4800/9600/19200bps 、 Pelco-D、 Pelco-P Factory Communication Protocol Cosumption ID setting 0-255 Operational Decoder Physical Built-in Pan rotation ℃ — ℃ 360° Operation temperature —...

  • Page 9: Dome Performance& Feature

    Dome performance 3.3 Dome performance and features This product is high-technology surveillance product with high definition and color camera, variable-speed pan/tilt and multifunction decoder. It can reduce the connection and installation process between systematic parts at a max limit, and also can improve the stability and reliability of the system. Meanwhile, it is easy to install and repair, and it has the following advantages: beautiful shape, rotate lightly and neatly, little noise, simple operation and so on.

  • Page 10: Function Instruction

    Function instruction 4.Function in structure This passage mainly describes the main function and general principle of integrated speed dome, and does not refer to the concrete operation methods. Different system platform has different operation methods, generally we should according to the system manufactory's operation manual. Please contact dealer to get necessary information, under some conditions there are have some particular requirements and operations.

  • Page 11: Constant Temperature Function

    Function instruction Ø Iris control System defaults Auto Iris. Camera can rapidly adjust size of Iris, through the automaticly induct the changing of environment ray, and thus make the brightness of deferent image stable. “ ” User may adjust Iris by controller keyboard open/close to get required brightness that you need.

  • Page 12: System Setting

    System setting 5.System setting 5. 1 Basic operation 5. 1. 1 Current-carrying to dome and self-testing The dome conducts self-testing after current-carrying,and it rotates slowly until displaying pan origin that is default setting, then moving to tilt origin, the lens will be pulled far to near and near to far, when self-testing is finished, there is relevant system information displaying on the screen, as follow: S/N of the dome Soft edition...

  • Page 13: Edit Dome Label

    System setting 5. 2 Edit dome label MAIN MENU SYST EM SE TTIN G When using a lot of systems of the dome , in order to identify to each C AMERA SE TTI NG dome, the systems support title setting. The setting ways as follow: FUNC TIO N S ETT ING 、...
  • Page 14 System setting 5. 3 Display initial information MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTIN G C AMERA SE TTI NG 9 preset twice within 3 seconds. FUNCTIO N S ETTING W IND OW BLANK ING 【...

  • Page 15: Display Setup

    System setting 5. 4 Display setup MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYST EM SETTIN G 9 preset twice within 3 seconds. C AMERA SE TTING 、 【 】， 【 】...

  • Page 16: Auto-Flip

    System setting 5. 5 Systematic motion control MAIN MENU Systematic motion controlling may control a series of motions of the SYST EM SE TTIN G dome, and plays an important role in controlling the image of the dome. C AMERA SE TTI NG FUNC TIO N S ETT ING 1.The system enters into the main menu by calling 95 preset or by calling W IND OW BLANK ING...

  • Page 17: Park Action

    System setting 6. 5. 3 Park action MOTION This setting allows the dome to run an appointed action after it enters vacancy for a few time (1-240minutes). If default sets as 0, it means AUTO FLIP PROPORTION PAN ON not to run this action. PARK TIME 、...

  • Page 18: Clear

    System setting 6. 6 Clear MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYST EM SETTIN G 9 preset twice within 3 seconds. C AMERA SE TTI NG FUNC TIO N S ETT ING 、...

  • Page 19: Password Setting

    System setting 6. 7 Password Setting MAIN MENU Password setting is the built-in function of high speed dome, By SYST EM SETTIN G setting password (6 bits) it is very useful to protect the dome setting, C AMERA SE TTI NG if no password, you can't enter the setting menu.

  • Page 20: Date And Clock Setting

    System setting 6. 8 Date and clock setting MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYST EM SETTING 9 preset twice within 3 seconds. CAMERA SETTI NG FUNCTION S ETTING 【 】...

  • Page 21: Setup Dome Parameter

    System setting 6. 9 Setup Dome parameter MAIN MENU SYST EM SETTIN G 1.The system enters into the main menu by calling 95 preset or by calling C AMERA SE TTI NG 9 preset twice within 3 seconds. FUNC TIO N S ETT ING W IND OW BLANK ING 【...

  • Page 22: Camera Setting

    Camera setting 7. Camera setting MAIN MENU 7. 1 Zoom speed SYSTEM SE TTIN G 1.The system enters into the main menu by calling 95 preset or by calling C AM ERA SE TTING FUNCTIO N SETTING 9 preset twice within 3 seconds. WINDOW BLANK ING EXIT 、...

  • Page 23: Digital Zoom Control

    Camera setting 7. 2 Digital zoom control MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYST EM SE TTIN G 9 preset twice within 3 seconds. C AMERA SE TTI NG FUNC TIO N S ETT ING 、...

  • Page 24: Back Light Compensation

    Camera setting 7. 3 Back light compensation MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYST EM SE TTIN G 9 preset twice within 3 seconds. C AMERA SE TTI NG FUNC TIO N S ETT ING 、...

  • Page 25: Slow Shutter Control

    Camera setting 7. 4 Slow shutter control MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYSTEM SETTIN G 9 preset twice within 3 seconds. C AMERA SE TTING FUNCTIO N SETTING 、 【...

  • Page 26: Ir Cut Filter

    Camera setting 7. 5 IR cut filter MAIN MENU 、 The system enters into the main menu by calling 95 preset or by SYST EM SE TTIN G calling 9 preset twice within 3 seconds. C AMERA SE TTI NG FUNC TIO N S ETT ING 、...

  • Page 27: Advance Setting

    Camera setting 7. 6 Advance setting MAIN MENU 、 The system enters into the main menu by calling 95 preset or by calling SYST EM SE TTIN G 9 preset twice within 3 seconds. C AM ERA SE TTI NG FUNC TIO N S ETT ING 、...

  • Page 28: White Balance Mode

    Camera setting 7. 6. 2 White balance mode MAIN MENU 【 】 、 【 】 、 System supports AUTO indoor mode INDOOR outdoor 【 】 、 【 】 、 【 】 、 mode OUTDOOR auto track mode single mode SYST EM SE TTIN G C AMERA SE TTI NG 【...

  • Page 29: Function Setting

    Function instruction 8. Function setting MAIN MENU 8. 1 Preset setting SYST EM SE TTIN G 1.The system enters into the main menu by calling 95 preset or by calling C AM ERA SE TTI NG 9 preset twice within 3 seconds. according to the order of the left picture, FUNC TIO N S ETT ING “...

  • Page 30: Scan

    Function instruction 8. 2 Scan MAIN MENU Scan is that pre-set two points , then the camera repeatedly scan between the two points at a stable speed, the same magnification and SYST EM SETTIN G pan . A dome only has one scan tour. C AMERA SE TTI NG 1.The system enters into the main menu by calling 95 preset or by calling FUNC TIO N S ETT ING...

  • Page 31: Pattern

    Function instruction 8. 3 Pattern MAIN MENU Pattern is built-in function in camera; the speed dome can record tracks that are no less than 180s. (A series of pan/tilt controlling and SYSTEM SE TTING lens controlling command). A dome may set up to 4 pattern tours. CAM ERA SETTI NG 1.The system enters into the main menu by calling 95 preset or by calling FUNCTION SETTING...

  • Page 32: Tour

    Function instruction 8. 4 Tour MAIN MENU Tour is the built-in function in the speed dome, it will arrange the presets into the queue of auto-tour, and can set how long it will park SYST EM SETTIN G at preset. Operate auto-tour is a process of incessantly transfer each C AMERA SE TTING preset.

  • Page 33: Zone Setting

    Function instruction 8. 5 Zone setting MAIN MENU A dome may be set up to 8 zones; the regional scene can't be 【 overlapped. User will set label for each zone. When setting ZONE SYST EM SE TTIN G C AM ERA SE TTI NG 】...

  • Page 34: Tour Time Setting

    Function instruction 8. 6 Tour Time Setting MAIN MENU 1.The system enters into the main menu by calling 95 preset or by calling SYST EM SE TTIN G 9 preset twice within 3 seconds. C AM ERA SE TTI NG FUNC TIO N S ETT ING W IND OW BLANK ING 【...

  • Page 35: Privacy Zone Masking

    Privacy zone masking 、 9 Privacy zone masking MAIN MENU Privacy function can show someone piece of regional shielding while SYST EM SE TTIN G protecting. For example, protect the window of bedroom or ATM of bank. A C AMERA SE TTI NG dome can set up to 24 privacy windows.(Masking setting function is relat- ive with the model of camera module.
  • Page 36 Appendix 10. Appendix MAIN MENU 10. 1 Dome menu index → SYSTEM SETTING → CAM ERA SETT ING → FUNC TION SET TING → WIND OW BLA NKIN G EXIT CAMERA SETTING SYSTEM SETTING FUNCT ION SETTING WINDOW BLANKING → →...
  • Page 37 Appendix 10. 2 Trouble shooting Solution Trouble Possible causes Power supply is damage or Replace power consumption is not enough No action, no video after Power line is bad conne ction Correct power up Engineering line is malfunction Check and repair Refer to switch setting, reset the switch The dome DIP switch setting is incorrect Self-testing and...
  • Page 38 Appendix 10. 4 Rs485Bus basic knowledge A+ B- Ø Characteristics of Rs485 Bus 120Ω 120Ω As specified by Rs485 standard, Rs485 Bus is of half-duplexed data transmission cables with Pict ure10-4.2 Ω characteristic impedance as 120 . The maximum load capacity is 32unit loads(including main controller and controller equipment) Ø...

  • Page 39: Appendix

    Appendix Ø Problems in practical connection In some circumstances user adopts a star In such circumstances the Factory recommends configuration in practical connection. The the usages of Rs485 distributor. The distributor can termination resistors must be connected to the two change the star configuration connection to the mode equipment 1# and 5# in picture 10-4.4.
  • Page 40 Notes PDF created with pdfFactory Pro trial version www.pdffactory.com...
