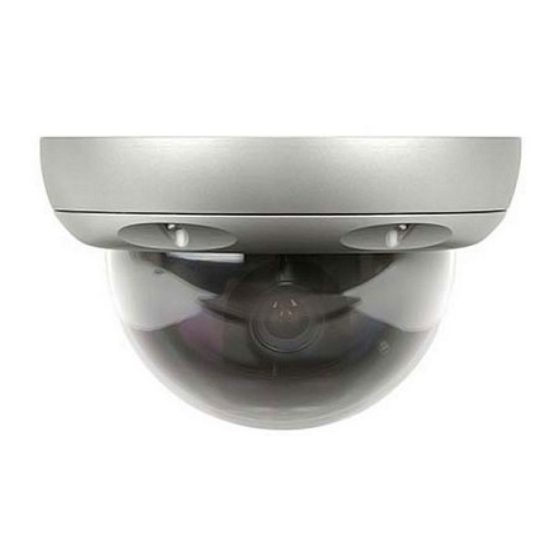

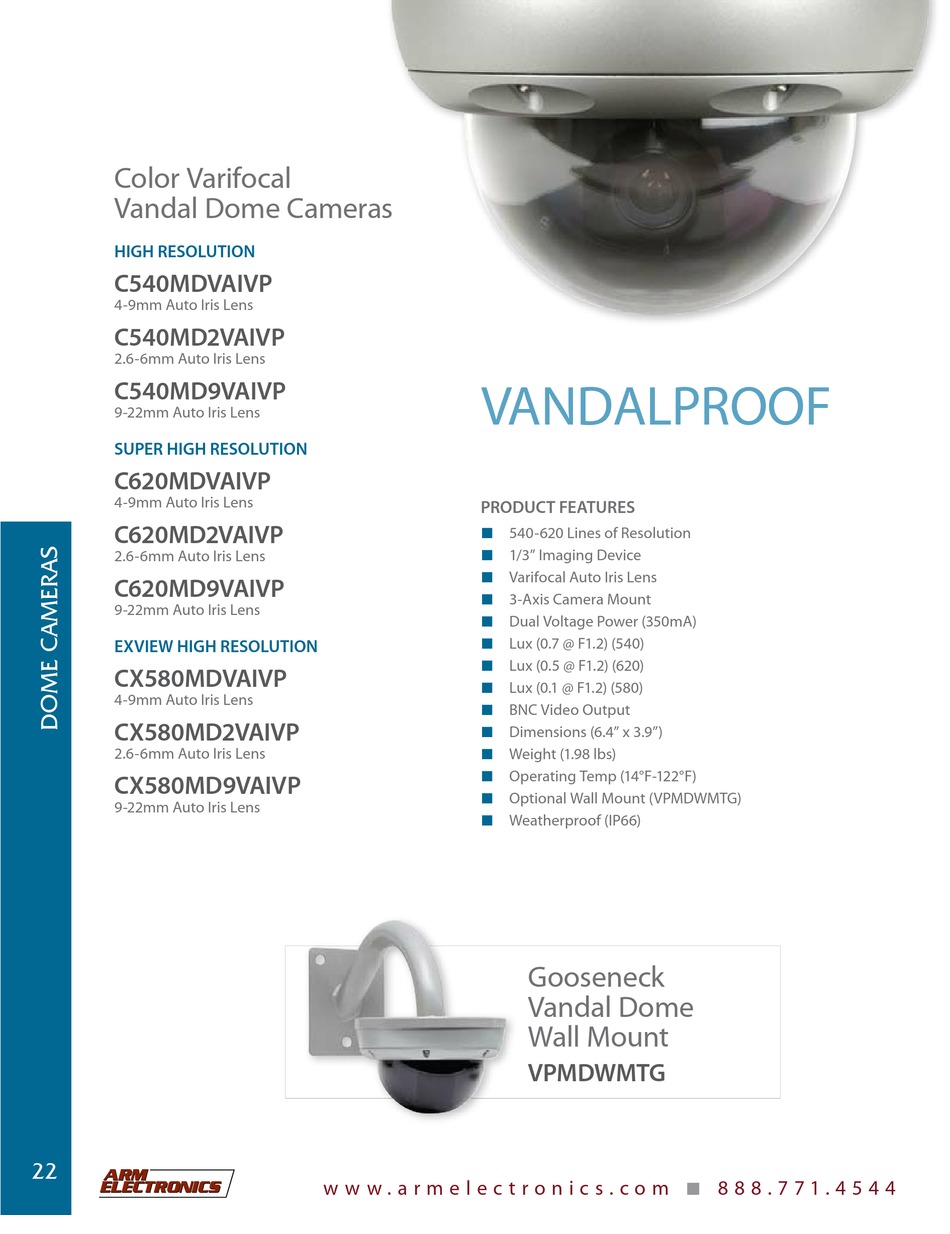

Arm Electronics C540MD2VAIVP Features

Color Varifocal
Vandal Dome Cameras
HiGH resOlUtiOn
c540mdVaiVp
4-9mm Auto Iris Lens
c540md2VaiVp
2.6-6mm Auto Iris Lens
c540md9VaiVp
9-22mm Auto Iris Lens
sUper HiGH resOlUtiOn
c620mdVaiVp
4-9mm Auto Iris Lens
c620md2VaiVp
2.6-6mm Auto Iris Lens
c620md9VaiVp
9-22mm Auto Iris Lens
exView HiGH resOlUtiOn
cx580mdVaiVp
4-9mm Auto Iris Lens
cx580md2VaiVp
2.6-6mm Auto Iris Lens
cx580md9VaiVp
9-22mm Auto Iris Lens
22
vANdALPROOf
prOdUct featUres
■
■
■
■
■
■
■
■
■
■
■
■
■
■
w w w . a r m e l e c t r o n i c s . c o m
540-620 Lines of Resolution
1/3" Imaging Device
Varifocal Auto Iris Lens
3-Axis Camera Mount
Dual Voltage Power (350mA)
Lux (0.7 @ F1.2) (540)
Lux (0.5 @ F1.2) (620)
Lux (0.1 @ F1.2) (580)
BNC Video Output
Dimensions (6.4" x 3.9")
Weight (1.98 lbs)
Operating Temp (14°F-122°F)
Optional Wall Mount (VPMDWMTG)
Weatherproof (IP66)
Gooseneck
Vandal Dome

Wall Mount

VpmdwmtG
n
8 8 8 . 7 7 1 . 4 5 4 4
