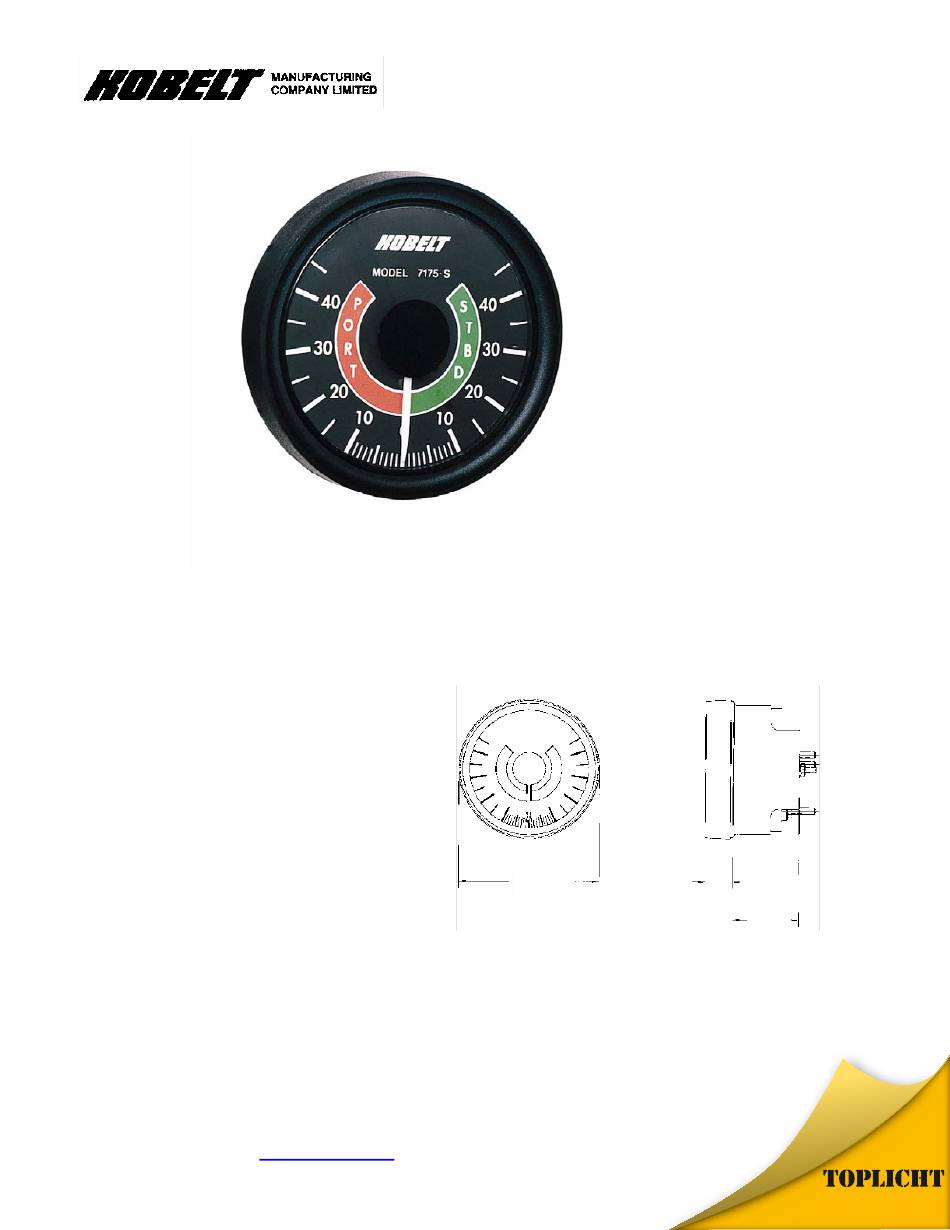

Model 7175

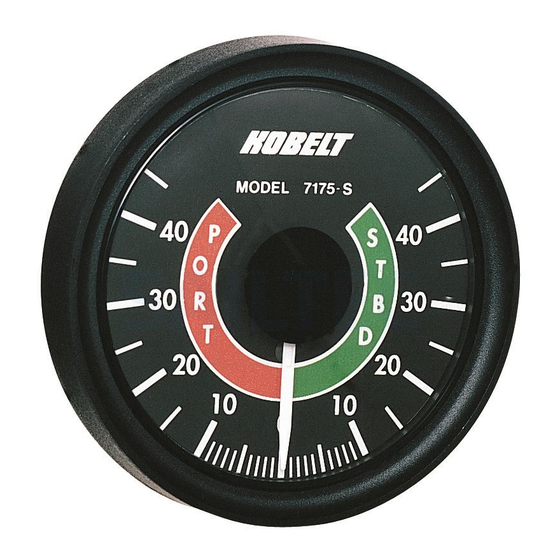

Rudder Angle Indicator
The
7175
rudder
continuously monitor and indicate the position
of your rudder.
Whether you are manœuvring, power steering
or changing course, an accurate readout of the
rudder position will be displayed on a tri-
coloured three-inch display.
A basic system will consist of a 7175-MY
Master station indicator and a Kobelt 7168
Feedback Unit for signal input.
Up to five additional "repeater stations" can be
installed using the 7175-SY repeater.
Both the master and repeater have a backlit
translucent display with an optional dimmer and
are waterproof on the front face.
Please visit our website
indicator
system
will
www.kobelt.com
for more information.
3.8
(96)
All Dimensions in inches (mm)
Approx. weight: 1 lb (0.5 kg)
0.38
(9.5)
2.04
(52)
