Epson Stylus Pro 7700M Enlarge Copying Manual

Epson Stylus Pro 7700M Enlarge Copying Manual

Hide thumbs Also See for Stylus Pro 7700M:

Advertisement

Quick Links

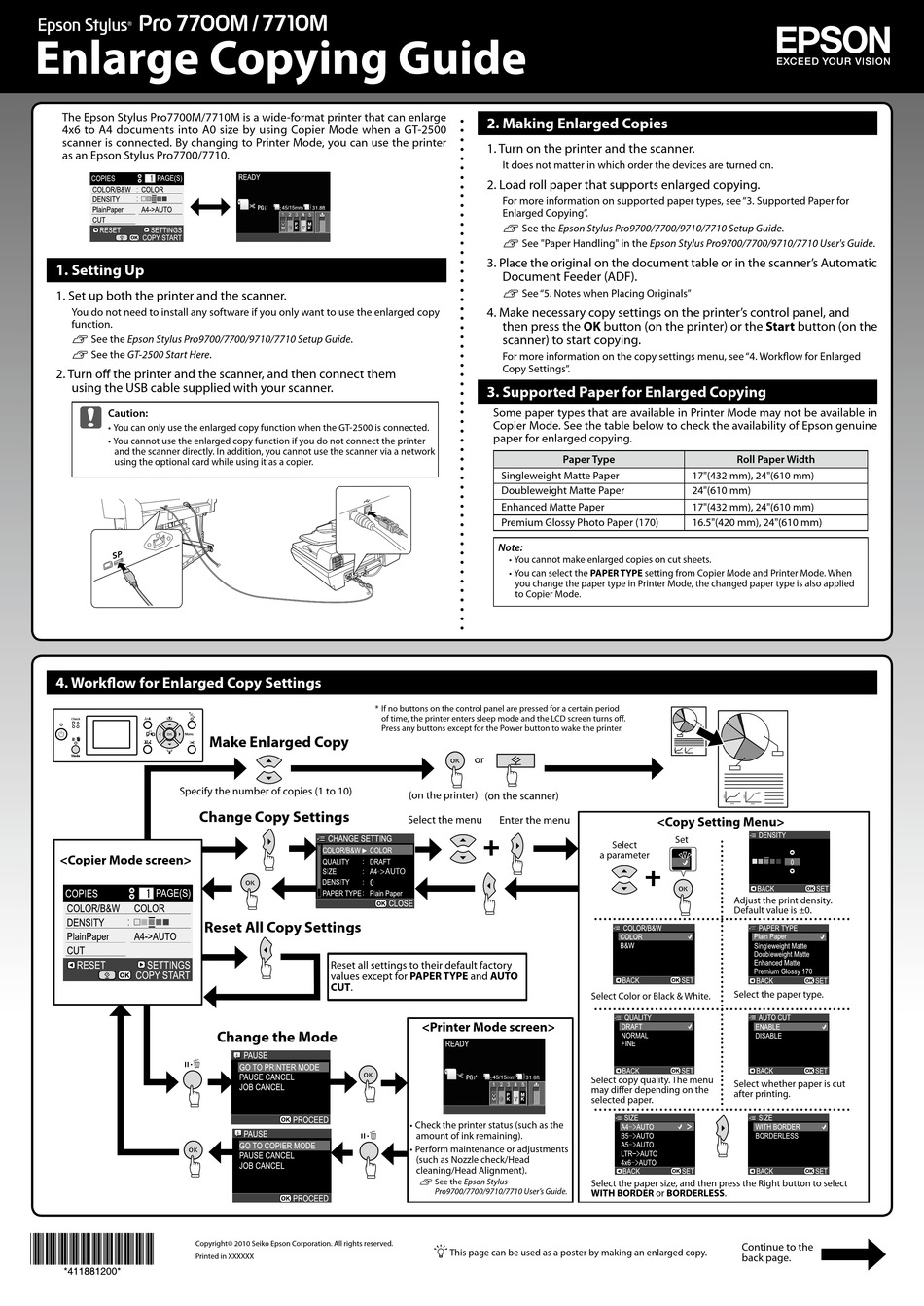

Enlarge Copying Guide
The Epson Stylus Pro7700M/7710M is a wide-format printer that can enlarge
4x6 to A4 documents into A0 size by using Copier Mode when a GT-2500
scanner is connected. By changing to Printer Mode, you can use the printer
as an Epson Stylus Pro7700/7710.
1. Setting Up
1. Set up both the printer and the scanner.
You do not need to install any software if you only want to use the enlarged copy
function.
N See the Epson Stylus Pro9700/7700/9710/7710 Setup Guide.
N See the GT-2500 Start Here.
2. Turn off the printer and the scanner, and then connect them
using the USB cable supplied with your scanner.
c
Caution:
You can only use the enlarged copy function when the GT-2500 is connected.
You cannot use the enlarged copy function if you do not connect the printer
and the scanner directly. In addition, you cannot use the scanner via a network
using the optional card while using it as a copier.
4. Workflow for Enlarged Copy Settings
Specify the number of copies (1 to 10)
Change Copy Settings
<Copier Mode screen>
Reset All Copy Settings
Copyright© 2010 Seiko Epson Corporation. All rights reserved.
Printed in XXXXXX
*
If no buttons on the control panel are pressed for a certain period
of time, the printer enters sleep mode and the LCD screen turns off.
Press any buttons except for the Power button to wake the printer.
Make Enlarged Copy
Reset all settings to their default factory
values except for PAPER TYPE and AUTO
CUT.
Change the Mode
2. Making Enlarged Copies
1. Turn on the printer and the scanner.
It does not matter in which order the devices are turned on.
2. Load roll paper that supports enlarged copying.
For more information on supported paper types, see "3. Supported Paper for
Enlarged Copying".
N See the Epson Stylus Pro9700/7700/9710/7710 Setup Guide.
N See "Paper Handling" in the Epson Stylus Pro9700/7700/9710/7710 User's Guide.
3. Place the original on the document table or in the scanner's Automatic
Document Feeder (ADF).
N See "5. Notes when Placing Originals"
4. Make necessary copy settings on the printer's control panel, and
then press the OK button (on the printer) or the Start button (on the
scanner) to start copying.
For more information on the copy settings menu, see "4. Workflow for Enlarged
Copy Settings".
3. Supported Paper for Enlarged Copying
Some paper types that are available in Printer Mode may not be available in
Copier Mode. See the table below to check the availability of Epson genuine
paper for enlarged copying.
Paper Type
Singleweight Matte Paper
Doubleweight Matte Paper
Enhanced Matte Paper
Premium Glossy Photo Paper (170)
Note:
You cannot make enlarged copies on cut sheets.
You can select the
you change the paper type in Printer Mode, the changed paper type is also applied
to Copier Mode.
or
(on the printer)
(on the scanner)
Select the menu
Enter the menu
<Printer Mode screen>
Check the printer status (such as the
amount of ink remaining).
Perform maintenance or adjustments
(such as Nozzle check/Head
cleaning/Head Alignment).
N See the Epson Stylus
Pro9700/7700/9710/7710 User's Guide.
This page can be used as a poster by making an enlarged copy.
Roll Paper Width
17"(432 mm), 24"(610 mm)
24"(610 mm)
17"(432 mm), 24"(610 mm)
16.5"(420 mm), 24"(610 mm)
PAPER TYPE setting from Copier Mode and Printer Mode. When
<Copy Setting Menu>
Set
Select
a parameter
Adjust the print density.
Default value is ±0.
Select the paper type.
Select Color or Black & White.
Select copy quality. The menu
Select whether paper is cut
may differ depending on the
after printing.
selected paper.
Select the paper size, and then press the Right button to select
WITH BORDER or BORDERLESS.
Continue to the
back page.
