- Page 1 Hoyer ® Hoyer Advance Digital Scale ® User Instruction Manual & Warranty To avoid injury, read user manual prior to use. Redefining patient handling...
- Page 2 Hoyer ® E ng lish 4-Point Positioning Cradle Manufacturer’s Contact Details Hoyer ® Joerns Healthcare Inc. 2100 Design Road Suite 100, Arlington TX 76014, USA Tel: 800-826-0270 Fax: 800-457-8827 www.joerns.com Contents Safety Warnings ....................3 Assembly Instructions ..................4 Operating Instructions ..................6 Battery Replacement ..................
- Page 3 Hoyer ® E ngli sh 4-Point Positioning Cradle 1. Safety Warnings NOTE: Assembly instructions pertain to the type of lifter boom that you will be attaching the scale to. Follow the appropriate instructions based upon your lifter and model ordered. WARNING The Hoyerpro+ Digital Scale does not increase the maximum weight capacity of a lifter.

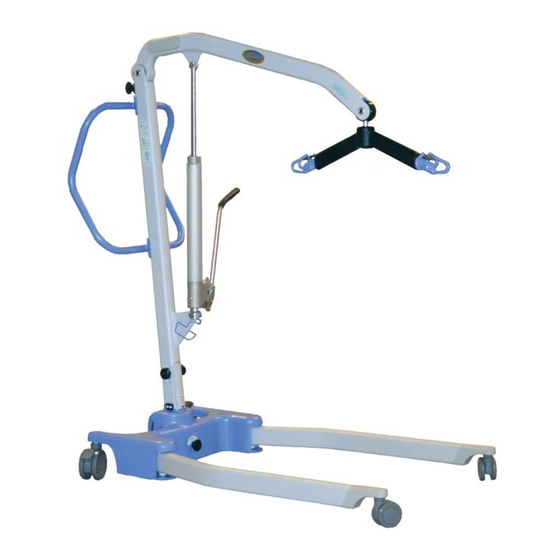

- Page 4 Hoyer ® E ng lish 4-Point Positioning Cradle 2. Assembly Instructions Lifter Model: HOY-ADVANCE-E HOY-ADVANCE-H Scale Model Number: HOY-ADV-6PTWSC Parts List: 1 x Spreader Bar with Scale Assembly (HOY-ADV-6PTWSC) 1 x Scale Assembly (HOY-ADV-SCALE) 1 x Quick Release Pin (0Y0309) 1 x User Manual (294000.10029) Tools Required: 4mm Allen Wrench (x2)
- Page 5 Hoyer ® E ngli sh 4-Point Positioning Cradle CONNECTION: 1. Remove the HOY-ADV-6PTWSC spreader bar assembly and the quick release pin from the shipping carton. 2. Using the flat blade screw driver disassemble the quick release pin by depressing the spring barb. 3.
- Page 6 Hoyer ® E ng lish 4-Point Positioning Cradle 3. Operating Instructions 1. Once the HOY-ADV-6PTWSC spreader bar assembly has been properly installed on the Advance lifter and the sling is in place on the spreader bar: a) Select pounds or kilograms by pressing the “Kg/Lb” switch on the left side of the scale. b) Press the “ZERO”...
- Page 7 Hoyer ® E ngli sh 4-Point Positioning Cradle 5. Maintenance & Calibration Note: Calibration and maintenance should only be performed by trained personnel. Contact Customer Service for calibration instruction. The Hoyerpro+ Digital Scale contains no serviceable parts other than the battery. Unauthorized tampering with the scale will void all warranties. WARNING Do not attempt to remove the Hoyerpro+ Digital Scale from the 6-point spreader bar.
- Page 8 Joerns Healthcare Inc. 2100 Design Road Suite 100, Arlington TX 76014 Tel: 800-826-0270 Fax: 800-457-8827 www.joerns.com © 2012, Joerns Healthcare 294000.10029 Rev. B DCO. 12-0276...
