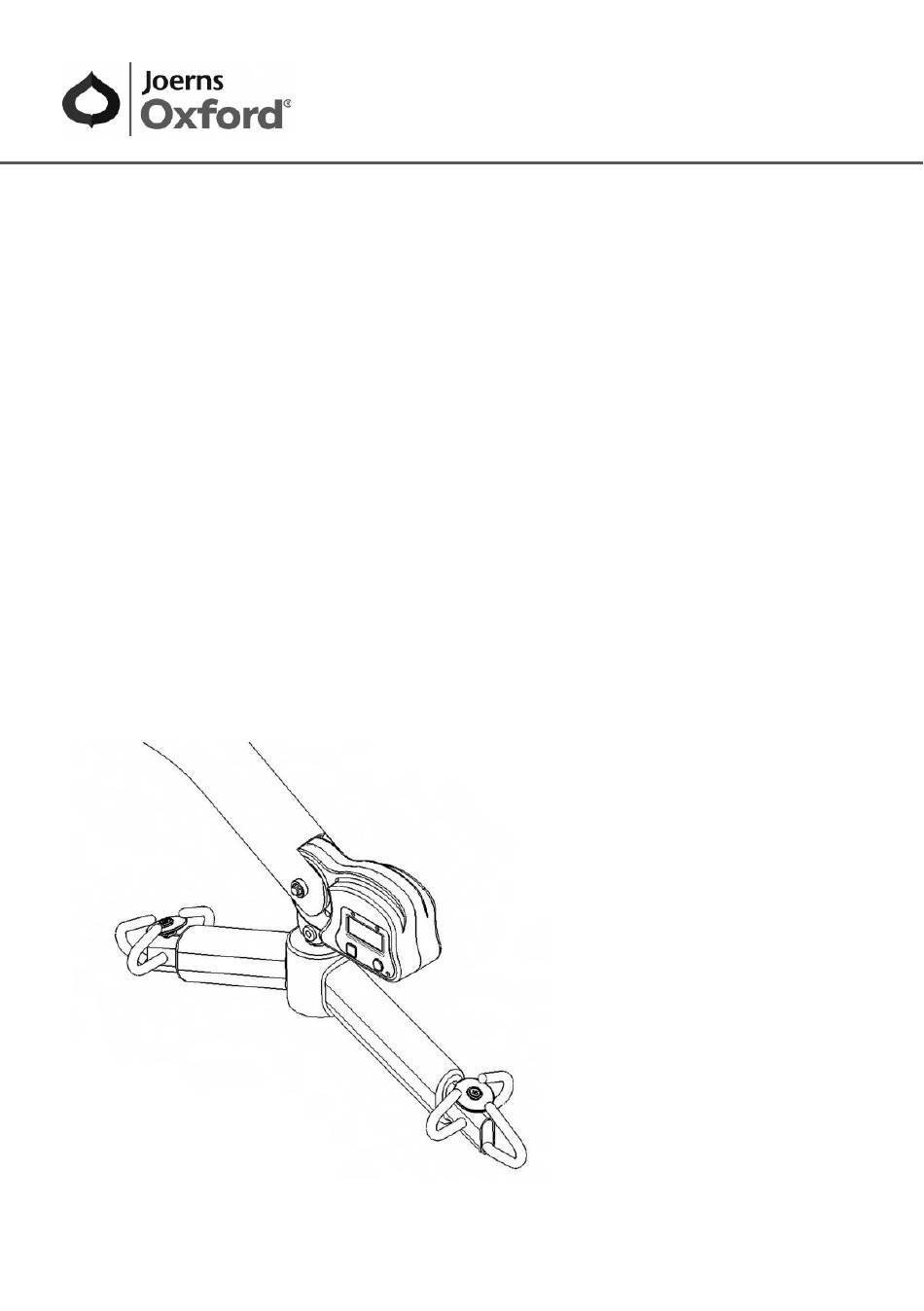

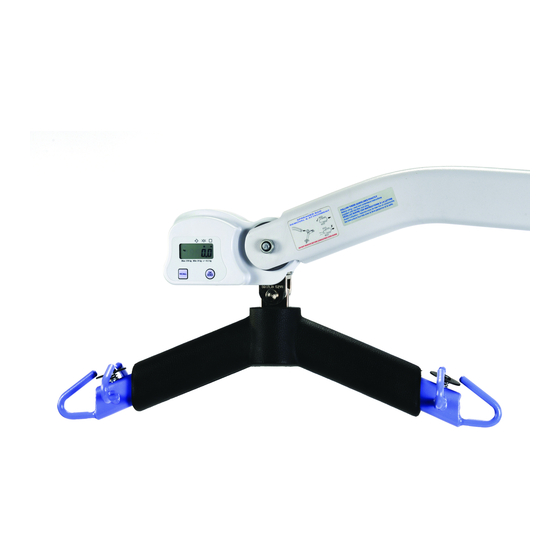

- Page 1 User Instruction Manual Oxford Low Profile Weigh Scale ® To avoid injury, read user manual prior to use.
-
Page 2: Table Of Contents
Oxford ® English Low Profile Weigh Scale Contents 1. Introduction ......................3 2. Component Parts ....................4 3. Assembly ......................5 4. Operation ......................7 5. Operation Features .................... 8 6. Cleaning ......................8 7. Technical Specifications ..................9 8. Battery Replacement ..................10 9. -
Page 3: Introduction
Oxford ® English Low Profile Weigh Scale 1. Introduction About your scale: The Oxford Digital Scale is a technologically advanced, microprocessor controlled, digital weighing device. It features two large, easy to read, Liquid Crystal Displays (LCD) that show the patient’s weight from either side. The controls are simple and straightforward to use. -
Page 4: Component Parts
Oxford ® English Low Profile Weigh Scale 2. Component Parts: Digital Scale The following components are included with your digital weigh scale for the Presence or Stature lift. 1. 1 x Digital Scale with cradle/spreader bar 2. 1 x User Manual 3. -
Page 5: Assembly
Oxford ® English Low Profile Weigh Scale 3. Assembly Your weigh scale comes fully integrated with the 6 point (loop) spreader bar, 4-point (non- powered) cradle or a 4-point adaptive power cradle (powered) cradle. Attaching the scale/cradle assembly to the lift is quick and easy and will require a small blade screwdriver. - Page 6 Oxford ® English Low Profile Weigh Scale Connection of the Spreader Bar/Cradle: To connect, raise the spreader bar/cradle up towards the boom slot. Once aligned in the boom slot reinsert the quick release pin fully into the sleeve until it locks into position. YOU MUST CHECK THAT THE PIN IS SECURELY FITTED;...
-
Page 7: Operation
Oxford ® English Low Profile Weigh Scale 4. Operation The Oxford scale has been designed and certified to weigh up to 227kg in 0.2 increments. It has been certified to weigh in temperatures between 5˚C/35˚C. To weigh a patient follow the instructions below: 1. -
Page 8: Operation Features
Oxford ® English Low Profile Weigh Scale 5. Operation Features • All functions are accessible to the user without opening the case. • Starting or zeroing the scale is done through a single touchpad located on the front of the case. •... -
Page 9: Technical Specifications
Oxford ® English Low Profile Weigh Scale 7. Technical Specifications • Electronics ....Microprocessor controlled. • Power ......9 volt alkaline battery PP3. • Battery Life ....Exceeds 70 hours continuous operation. • Display ......LCD (liquid crystal display) 63 x 18mm Characters 15mm high. •... -
Page 10: Battery Replacement
Oxford ® English Low Profile Weigh Scale 8. Battery Replacement The Oxford Electronic Digital Scale is powered by a 9 volt battery. A new battery will provide approximately 3000 readings before replacement is necessary. A low battery will be indicated by a battery symbol appearing in the upper left corner. -
Page 11: Maintenance Inspection And Test
11 may result in your warranty being invalid. If you are in doubt where your purchase was made, Joerns Healthcare can trace the supplier if you quote the serial number of the scale. It is the last four digits referenced after the text “OXF- SCALE-LP”... -
Page 12: Logbook For Scale
• The logbook retains all information relevant to the inspection, repair or modification of the instrument. • The logbook can be provided by Joerns, the approved inspector or the approved repair engineer. • The logbook must accompany the scale at the place of use. - Page 13 Oxford ® English Low Profile Weigh Scale Work performed: Periodic verification Repair (maintenance) - calibration Modification Date work completed (DD/MM/YY) Organisation ID # - Service provider Name/address of service provider Represented by Signature of service provider Signature of end user Verification summary Approved Failed...
