Summary of Contents for EGi 10301

  • Page 1 10301 manual de instrucciones instructions manual...
  • Page 3: Table Of Contents

    • El usuario debe evitar cualquier intento de intervención o reparación del producto y dirigirse únicamente a personal cualificado. • Utilice únicamente los accesorios suministrados por EGi. • EGi declina toda responsabilidad que derive del uso impropio del producto o de un uso distinto de aquel para el que está destinado (ver el apartado Garantía).
  • Page 4: Panel Frontal Y Posterior

    10301 PANEL FRONTAL Y POSTERIOR 17 18 1 Control de volumen (MIC1/MIC2/MIC3/MIC4). 14 Controles de ganancia de los micrófonos (1-4). 2 Control de volumen AUX. 15 Entradas de audio. 3 Control de graves. 16 Salida de audio para grabador. 4 Control de agudos.
  • Page 5: Características Y Precauciones De Uso

    CARACTERÍSTICAS Y PRECAUCIONES DE USO El amplificador 10301 es un amplificador mezclador de 120 W con salida de línea de 50 V, 70 V y 100 V, y salida de baja impedancia 4 . En el panel frontal dispone de control de volumen máster, micrófonos 1 a 4, AUX, control de graves y control de agudos.
  • Page 6: Datos Técnicos

    10301 DATOS TÉCNICOS Datos técnicos 10301 Potencia nominal (THD 1%) 120 W Posibles salidas a altavoz 100 V / 70 V / 50 V / 4 Sensibilidad e impedancia de entrada MIC 1, 2, 3, 4 (entrada balanceada XLR) ±2.5 mV / 2 K...
  • Page 7: Ejemplo De Montaje

    10301 EJEMPLO DE MONTAJE IMPEDANCIA MÍNIMA Amplificador externo 100 V 70 V 50 V SALIDA IMPEDANCIA Altavoces 24 Vdc Cortocircuitar si no se utiliza un procesador de audio externo MIC1 MIC2 MIC3 MIC4 Equipo grabador Equipo de cinta Entrada de línea...
  • Page 8: Garantía

    La instalación o utilización de los productos de forma no concordante con las normas técnicas o de seguridad vigentes. c) Las averías producidas por la incorrecta instalación de los módulos o por su instalación con cable de características distintas al indicado por EGi.
  • Page 9 • The user should abstain from carrying out any alterations or repairs on the product, reserving these actions for qualified personnel. • Only use accessories supplied by EGi. • EGi will not be held liable for any damage arising from misuse of the product or usage other than what is was designed for (See “Guarantee” section).
  • Page 10 10301 FRONTAL AND REAR PANEL 17 18 1 MIC1/MIC2/MIC3/MIC4 volume control. 14 Microphones gain controls. 2 AUX volume control. 15 Audio inputs. 3 BASS control. 16 REC output. 4 TREBLE control. 17 AMP in. 5 Master volumen control. 18 PRE output.

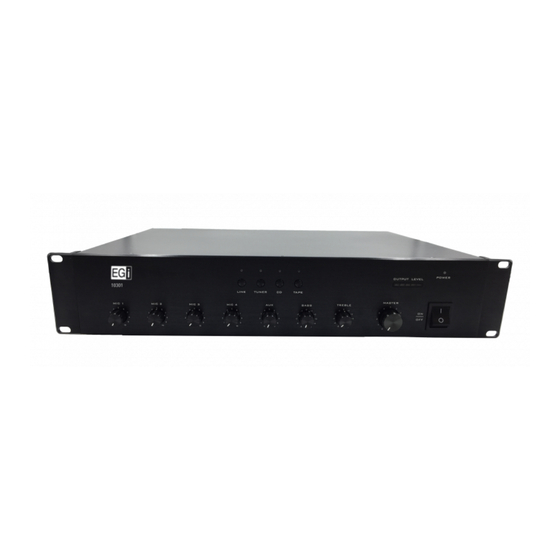

  • Page 11 FEATURES AND PRECAUTIONS FOR USE The 10301 amplifier is a high performance professional 120 W mixer amplifier but very easy to operate by the user. It has four auxiliary inputs selectable through pushbutton on the front panel and four independent microphone inputs with priority selection.
  • Page 12 10301 TECHNICAL DATA Technical data 10301 Rated power output 120 W Speaker outputs 50 V / 70 V / 100 V / 4 Input sensitivity & impedance MIC 1, 2, 3, 4 (XLR balanced input) ±2.5 mV / 2 K...
  • Page 13 10301 EXAMPLE OF INSTALLATION MINIMUM IMPEDANCE External power amplifier 100 V 70 V 50 V OUTPUT IMPEDANCE Speakers 24 Vdc Connect with audio processor equipments please use short plugs when you do not connect equipments MIC1 MIC2 MIC3 MIC4 Recorder equipments...
  • Page 14 In all these cases excluded from the warranty and as far as the modules are notconsidered as faulty by EGi, the sender shall bear the entire cost of the repair, andin case of the necessary visit of our technicians, the applicant shall also bear theincurred costs.
  • Page 16 Avda. Almozara, 79 • 50003 Zaragoza - SPAIN T. +34 976 40 53 53 - +34 976 40 53 56 F. +34 976 40 53 54 e-mail: info@egiaudio.com www.egiaudio.com...
