Sling Replacement Instructions
EXPERT
Rev: 1/27/2020

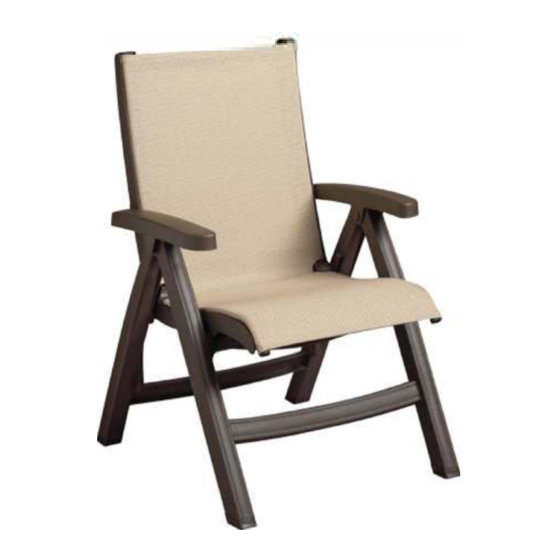

Jamaica Beach and Java Wicker versions
Used Sling or Wicker frames Removal

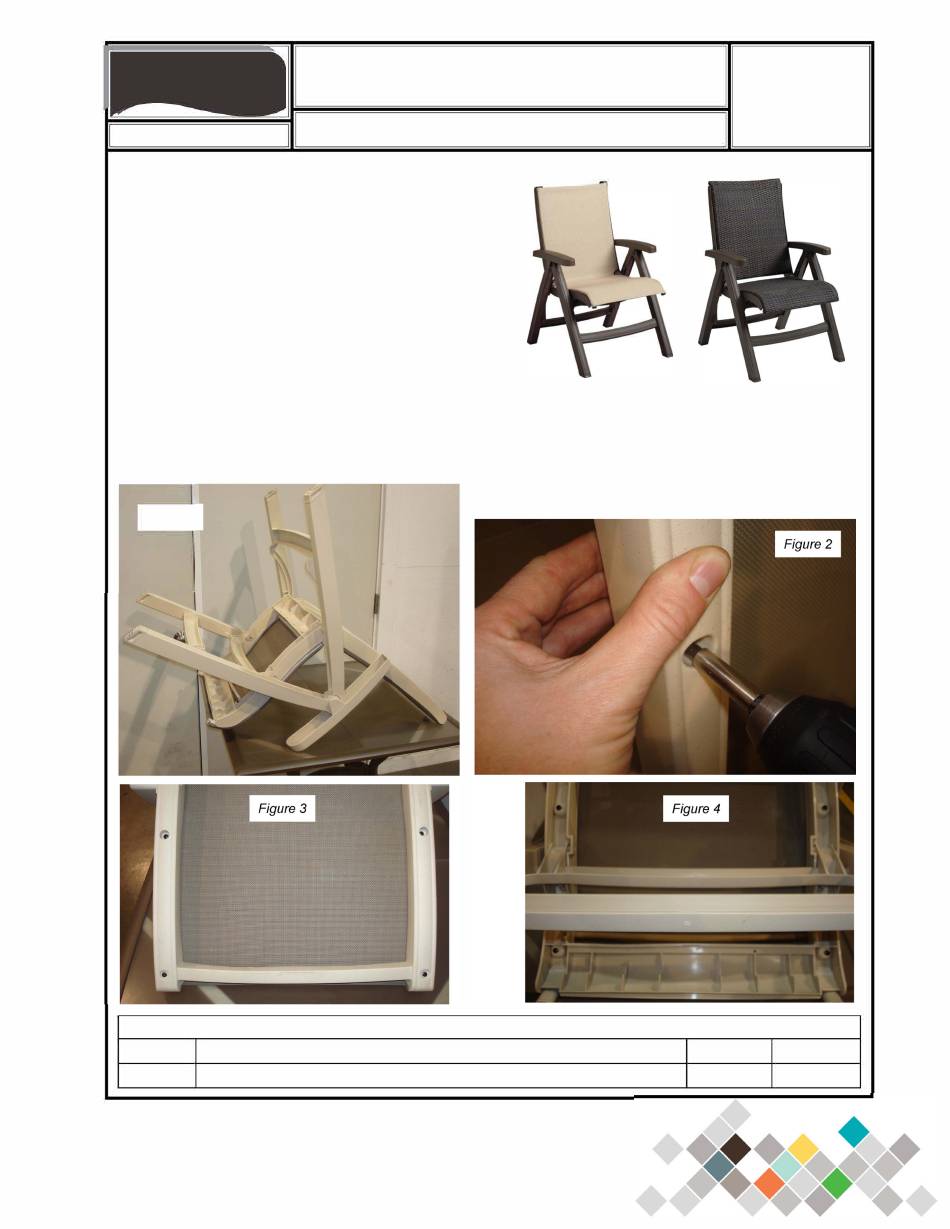

Unfold the product and set the 2 locks on the Legs.
Set Product upside down on a table. See figure 1.
To remove the screws, hold firmly the Sling into the Plastic
Structure, close to the screw you are removing.
See figure 2.
Remove the 4 screws from the Back. See figure 3.
4.
Remove the 4 screws from the Seat. See figure
Figure 1
REVISIONS
Rev. No.
Description
Date
Revised By
Advertisement
Table of Contents
Related Manuals for Grosfillex Java Wicker
Summary of Contents for Grosfillex Java Wicker
- Page 1 Grosf1llex· Sling Replacement Instructions EXPERT Rev: 1/27/2020 Jamaica Beach and Java Wicker versions Used Sling or Wicker frames Removal Unfold the product and set the 2 locks on the Legs. Set Product upside down on a table. See figure 1.
- Page 2 Sling Replacement Instructions Jamaica Beach and Java Wicker versions Those steps are only for the Sling version (not the Java Wicker) After removing the Sling from the Plastic Structure set it up right ( See fi g ure 5), then remove the 2 top plugs on the used Sling Backrest and save those parts.
- Page 3 Grosf1llex· Sling Replacement Instructions EXPERT Jamaica Beach and Java Wicker Versions Setting the Replacement Sling or Wicker Frame in After positioning the Replacement Sling / Wicker into the Plastic Structure, keep the Chair up right. Hold tight the Sling / Wicker into the Plastic Structure close to the screw you are attaching.
