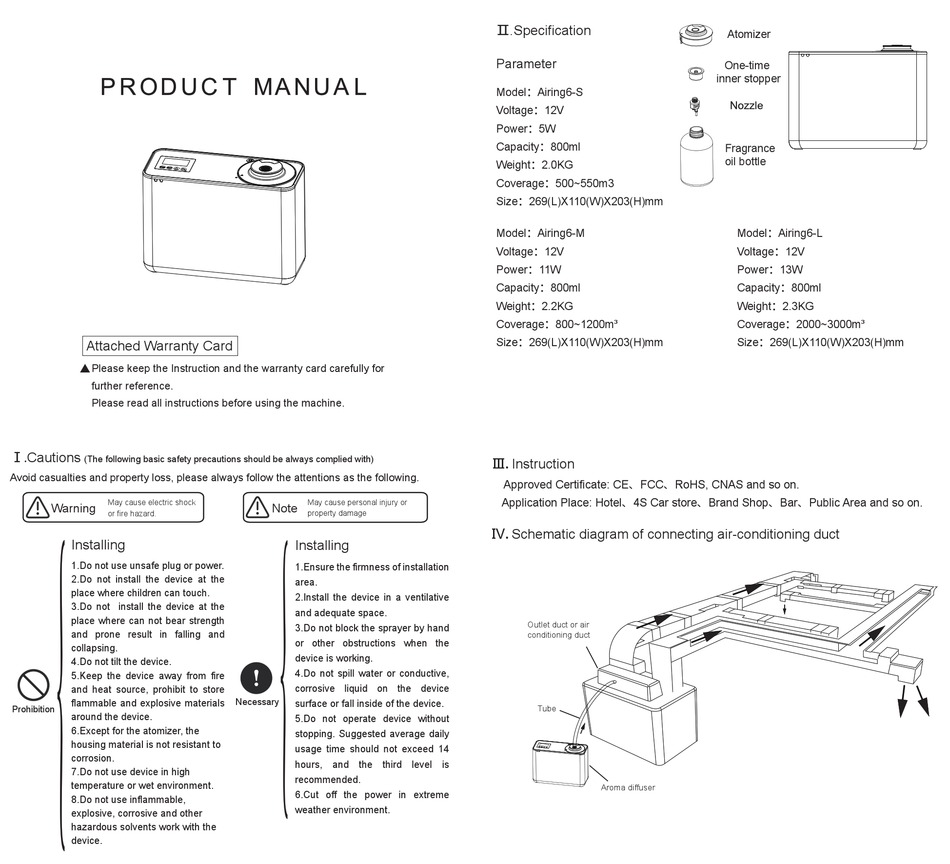

Crearoma Airing6-S Product Manual

Attached Warranty Card
Please keep the Instruction and the warranty card carefully for
further reference.
Please read all instructions before using the machine.
Ⅰ.Cautions
(The following basic safety precautions should be always complied with)
Avoid casualties and property loss, please always follow the attentions as the following.
May cause electric shock
Warning
or fire hazard.
Installing
1.Do not use unsafe plug or power.
2.Do not install the device at the
place where children can touch.
3.Do not install the device at the
place where can not bear strength
and prone result in falling and
collapsing.
4.Do not tilt the device.
5.Keep the device away from fire
and heat source, prohibit to store
flammable and explosive materials
Prohibition
around the device.
6.Except for the atomizer, the
housing material is not resistant to
corrosion.
7.Do not use device in high
temperature or wet environment.
8.Do not use inflammable,
explosive, corrosive and other
hazardous solvents work with the
device.
May cause personal injury or
Note
property damage
Installing
1.Ensure the firmness of installation
area.
2.Install the device in a ventilative
and adequate space.
3.Do not block the sprayer by hand
or other obstructions when the
device is working.
4.Do not spill water or conductive,
corrosive liquid on the device
Necessary
surface or fall inside of the device.
5.Do not operate device without
stopping. Suggested average daily
usage time should not exceed 14
hours, and the third level is
recommended.
6.Cut off the power in extreme
weather environment.
Ⅱ.Specification
Parameter
Model：Airing6-S
Voltage：12V
Power：5W
Capacity：800ml
Weight：2.0KG
Coverage：500~550m3
Size：269(L)X110(W)X203(H)mm
Model：Airing6-M
Voltage：12V
Power：11W
Capacity：800ml
Weight：2.2KG
Coverage：800~1200m³
Size：269(L)X110(W)X203(H)mm
Ⅲ. Instruction
Approved Certificate: CE、FCC、RoHS, CNAS and so on.
Application Place: Hotel、4S Car store、Brand Shop、Bar、Public Area and so on.
Ⅳ. Schematic diagram of connecting air-conditioning duct
Outlet duct or air
conditioning duct
Tube
Aroma diffuser
Atomizer
One-time
inner stopper
Fragrance
oil bottle
Model：Airing6-L
Voltage：12V
Power：13W
Capacity：800ml
Weight：2.3KG
Coverage：2000~3000m³
Size：269(L)X110(W)X203(H)mm
