Janus E-Series
Installation Guide
Ref No. E40 850 GB Version 5
System Description
The E40 safety system consists of a tansmitter detector
(TX) and a receiver detector (RX) for installation to
elevator car doors or an elevator car door and strikepost.
The detectors generate a light curtain of infra-red beams
across the elevator entrance. If a beam is broken, an
output is switched on the RX relay wires (blue, green &
yellow) to re-open the elevator doors.
Center opening Installation
1.
Position each detector on the car door checking that
they are:-
+
mounted approximately 12mm above the sill
+
aligned with the leading door edge and plumb with
each other.
2.
Use five self-drilling Pan head screws to secure the
detector:-

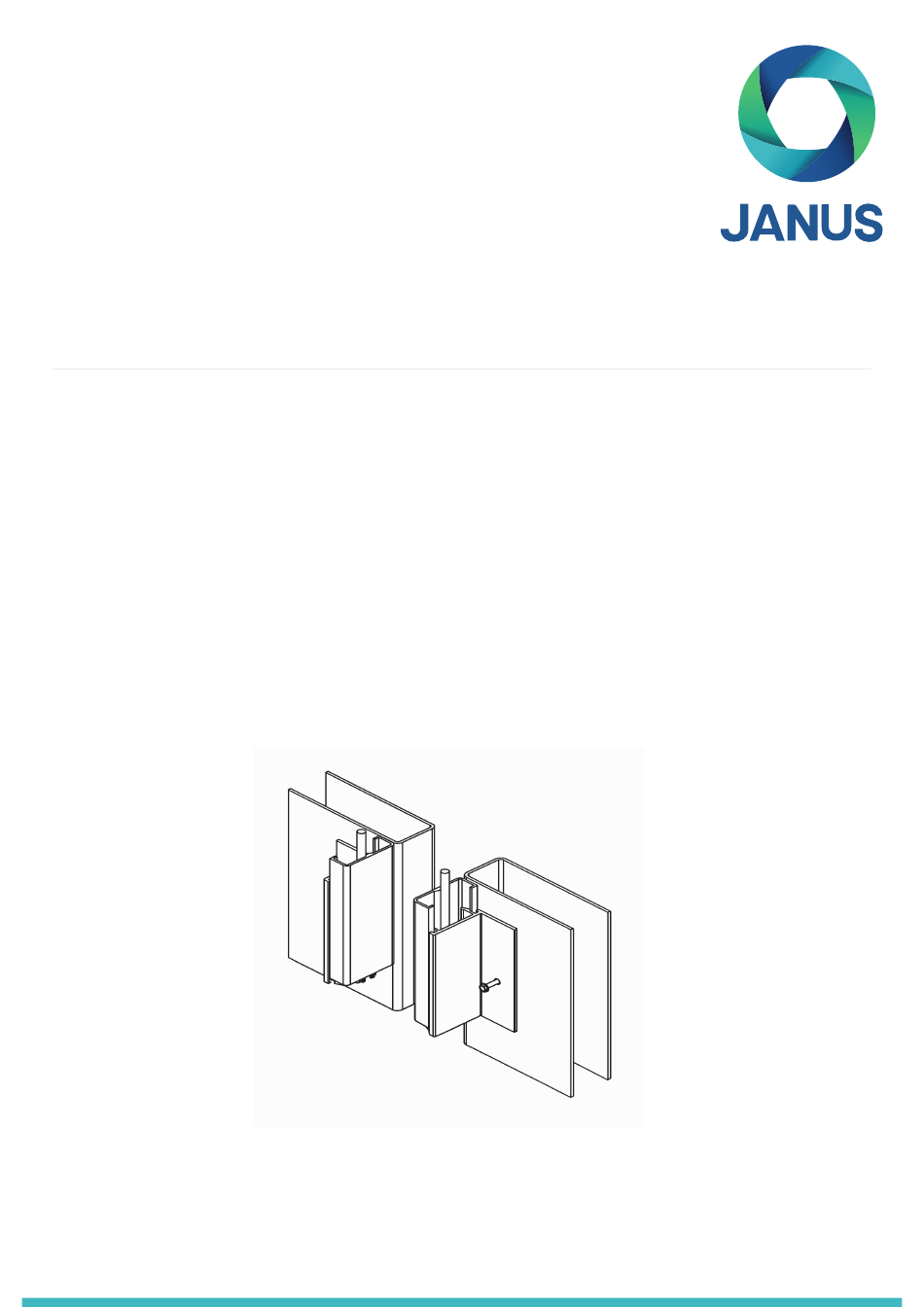

Fig 1: Centre-opening doors
+
locate screws approximately 75mm from top and
bottom and equally space remaining screws between
the two points
3.
Attach cables securely with the "P" clips and screws
provided:-
+
avoid tight bends while providing enough slack so the
cables are not stressed or stretched as the doors move
4.
Attach the green & yellow ground wire located at the
top of the antenna to the car door using a self-drilling
screw and lock washer. The ground wire must be fitted
to ensure the door(s) are properly grounded. As a
check, there should be continuity between the door and
elevator car metalwork.

Advertisement

loading

Summary of Contents for Janus E-Series

  • Page 1 Janus E-Series Installation Guide Ref No. E40 850 GB Version 5 System Description The E40 safety system consists of a tansmitter detector locate screws approximately 75mm from top and (TX) and a receiver detector (RX) for installation to bottom and equally space remaining screws between elevator car doors or an elevator car door and strikepost.
  • Page 2 Side-Opening Installation Use the CENTRE-OPENING INSTALLATION directions to mount the antenna on the door. Remove the uPVC cover from the remaining antenna. Using a screwdriver, pry the aluminium section from the plastic L channel (see Fig 3). Position the strikepost bracket (plastic U-shaped channel) approximately 1/2”-3/4”...
  • Page 3 Fig 4: Electrical Connection to 280 Power Supply MODEL 280 RX CABLE (pre-wired) - BLACK +12V - RED/GREEN TRIG - BLUE NOT CONNECTED - YELLOW Power Supply Door Re-open Circuit TX CABLE (pre-wired) TO ELEVATOR CONTROLLER - BLACK OR DOOR OPERATOR +12V - RED Direct Connection to Elevator Controller The E40 can be directly connected to the lift controller or door operator (Fig 5).
  • Page 4 LED Operation The RX detector has one LED for troubleshooting that is positioned at the top end of the detector STATUS LED ON LED OFF POSSIBLE CAUSE Normal, Untriggered 0.5 sec 2 secs Normal Operation Triggered Always Obstruction between detectors Timed-Out Beams 1 sec 1 sec...
