Withings Steel Installation And Operating Instructions Manual
Activity tracker - sleep analyzer
Hide thumbs
Also See for Steel:
- Quick installation manual (12 pages) ,
- Quick installation manual (12 pages)
Related Manuals for Withings Steel
Summary of Contents for Withings Steel

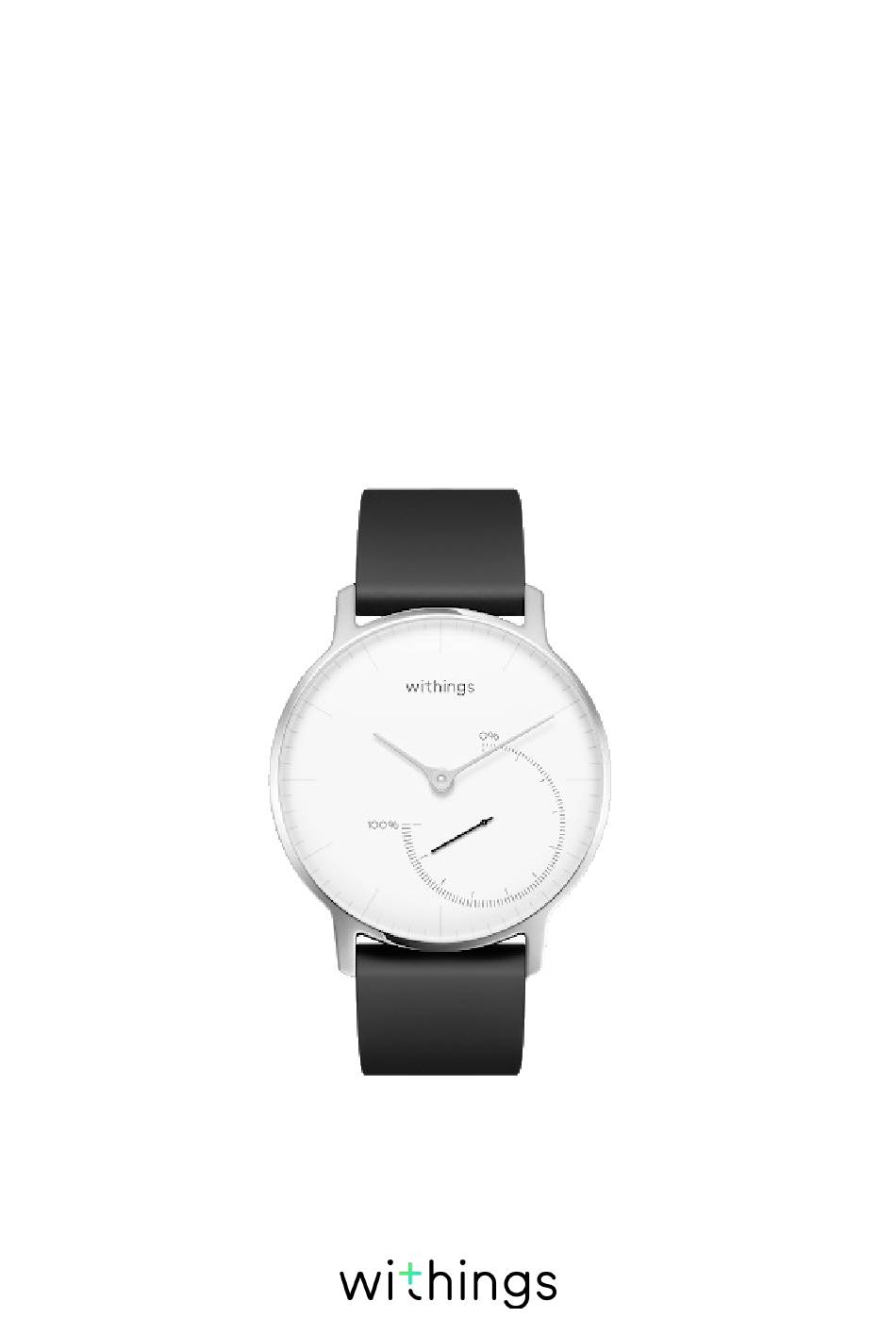

- Page 1 Withings Steel Activity Tracker - Sleep Analyzer Installation and Operating Instructions Withings Steel EN - 1 v4.0 | November, 2017...
-
Page 2: Table Of Contents
Withings Health Mate App Version ..................4 Description .................... 5 Overview ............................5 Box Contents ..........................6 Setting Up the Withings Steel ............7 Installing the Withings Health Mate App ................7 Installing my Withings Steel ....................7 Setting the Time..........................17 Tracking my activity ................18 Overview ............................ - Page 3 Personal Data ..........................36 Safety Instructions ................37 Use and Storage .........................37 Water Resistance ........................37 Leather Wristband ........................37 Service and Maintenance....................... 38 Specifications ..................39 Document Release Overview ............40 Warranty ....................41 Regulatory Statements ..............42 Withings Steel EN - 3 v4.0 | November, 2017...
-
Page 4: Minimum Requirements
For any device, BLE (Bluetooth Low Energy) compatibility is required to install and use your Withings Steel. Withings Health Mate App Version You always need the latest version of the Withings Health Mate app to have all the latest features available. Withings Steel EN - 4... -
Page 5: Description
You can easily check your alarm time by double-tapping your Withings Steel: the hands move on their own to the time that was set for your alarm and then go back to the current time. Note that you need to stabilize your Withings Steel for 5 seconds before double-tapping the glass. -
Page 6: Box Contents
Box Contents Withings Steel (1) Withings Steel (2) CR2025 battery (already (3) Tool to reset the inserted) watch Withings Steel EN - 6 v4.0 | November, 2017... -
Page 7: Setting Up The Withings Steel
The installation process starts. Installing my Withings Steel I’m new to Withings If you don’t already have a Withings account, you have to create one in order to set up and use your Withings Steel. If you already have an account, refer to “I already have a Withings account”... - Page 8 2. Tap Sign up. 3. Tap Watches. 4. Tap Steel. 5. Tap Install. Withings Steel EN - 8 v4.0 | November, 2017...
- Page 9 6. Push the reset button located at the back of your Withings Steel using the tool it came with. Your Withings Steel vibrates once.If it doesn’t vibrate, try changing the angle of the tool when you push the reset button.
- Page 10 7. Put your Withings Steel close enough to your mobile device. Tap Next. You may need to press the reset button again if your device cannot detect your Withings Steel on its own. 8. Enter your email address, password and then confirm your password. Tap Next.
- Page 11 12. Slide your finger on the wheel displayed in the app until the hour hand reaches the 0 mark. Tap Next. 13. Slide your finger on the wheel displayed in the app until the activity hand reaches the 0 mark. Tap Next. 14. Tap Done. Withings Steel EN - 11 v4.0 | November, 2017...
- Page 12 The range for your goal is between 3,000 and 15,000 steps a day. 16. Tap OK. I already have a Withings account If you already have a Withings account, you can get started on the installation process. To do so, perform the following steps: 1. Open the Withings Health Mate app.
- Page 13 4. Tap Watches. 5. Tap Steel. Withings Steel EN - 13 v4.0 | November, 2017...
- Page 14 6. Tap Install. 7. Push the reset button located at the back of your Withings Steel using the tool it came with. Your Withings Steel vibrates once. If it doesn’t vibrate, try changing the angle of the tool when you push the reset button.
- Page 15 You may need to press the reset button again if your device cannot detect your Withings Steel on its own. 9. Select the user who will be using the Withings Steel. 10. When prompted to, slide your finger on the wheel displayed in the app until the minute hand reaches the 0 mark.
- Page 16 11. Slide your finger on the wheel displayed in the app until the hour hand reaches the 0 mark. Tap Next. 12. Slide your finger on the wheel displayed in the app until the activity hand reaches the 0 mark. Tap Next. 13. Tap Done. Withings Steel EN - 16 v4.0 | November, 2017...
-
Page 17: Setting The Time
15. Tap OK. Setting the Time The Withings Steel is set up using your iOS and Android device, which allows it to be automatically set to the current time, based on the time zone you are in. If you ever have to change time zones while wearing your Withings Steel, all you have to do is open the Withings Health Mate app to sync your watch with your device and the correct time will be displayed. -
Page 18: Tracking My Activity
Tracking my activity Overview Your Withings Steel allows you to track your activity: number of steps, run tracking and swim tracking. Whether you are walking, running or swimming, you don’t have to do anything to start tracking it. All you have to do is wear your Withings Steel, it will do the rest. -
Page 19: Changing My Activity Goal
To get even more details, simply log in to the Withings Health Mate app. The app offers many graphs that allow you to easily see your history and your progress from the very first time you use it. Changing my activity goal This feature allows you to set a custom daily step goal. -
Page 20: Tracking My Swimming Sessions
Timeline by sliding your finger from top to bottom. Tracking my swimming sessions Your Withings Steel allows you to track your swimming sessions. All you have to do is wear your Withings Steel while swimming. It will automatically detect that you’re swimming and track your swimming sessions without any action required... -
Page 21: Tracking My Sleep
Your Withings Steel lets you track your sleep without requiring any action on your part. All you have to do is wear your Withings Steel when you go to sleep: it will do the rest on its own. If you do not want to track your sleep, simply don’t wear your Withings Steel to sleep. -
Page 22: Setting An Alarm
In order to enable and set an alarm, perform the following steps: 1. Open the Withings Health Mate app. 2. Go to Devices. 3. Select Alarm. 4. Put your Withings Steel close enough to your mobile device. 5. Tap the Alarm toggle to enable the alarm. Withings Steel EN - 22... - Page 23 8. Tap OK. 9. Tap Repeat on if you want to select on which days the alarm should be triggered. 10. Tap the back button to confirm. Withings Steel EN - 23 v4.0 | November, 2017...
- Page 24 Your alarm is disabled. Checking the Alarm You can easily check the alarm by tapping the glass of your Withings Steel at least three times. Note that you need to stabilize your Withings Steel for five seconds before tapping the glass, or the hands will not move.
-
Page 25: Getting More Active
It doesn’t matter if they have a Withings product or not: you can add anyone as long as they have the Withings Health Mate app on their smartphone, thanks to the in-app tracking that can act as an activity tracker. -
Page 26: Competing With Myself
Adding a social component to your activity tracking is a great way to stay motivated and push your limits. Competing with myself Badges The Withings Health Mate app offers a system of badges, virtual rewards that you unlock after certain achievements. There are two kinds of badges: Withings Steel EN - 26... - Page 27 Badges are a fun way to stay motivated and to be rewarded for your efforts. Insights Once you have been using your Withings Steel for a few days, the Withings Health Mate app will provide you with Insights. This feature looks at your activity and lets you know when you are more active than usual.
-
Page 28: Syncing Your Data
Bluetooth is activated on your device or you will not be able to synchronize your data. Your Withings Steel can only store your data for 7 days. Make sure you open the app regularly so that you do not lose any of your data. -
Page 29: Dissociating Your Withings Steel
1. Press the reset button located at the back five times with the tool provided with the Withings Steel to perform a factory reset. Allow for the Withings Steel to vibrate each time you press the reset button. When the factory reset is complete, the Withings Steel vibrates twice. - Page 30 6. Tap Remove from my account. Withings Steel EN - 30 v4.0 | November, 2017...
-
Page 31: Cleaning And Maintenance
Replacing the Battery The battery needs to be replaced when the hands stop moving and when the watch no longer vibrates when you press the reset button. The Withings Steel will run for approximately 8 months on a standard watch battery. -
Page 32: Calibrating The Hands
7. Repeat the previous steps for the other side. Calibrating the Hands If you ever feel that the time displayed on your Withings Steel is incorrect, you may need to recalibrate the hands. To do so, perform the following steps: 1. - Page 33 Withings Steel if your device cannot detect it on its own. If it doesn’t vibrate, try changing the angle of the tool when you push the reset button.
-
Page 34: Updating The Firmware Version
6. Slide your finger on the wheel displayed in the app until the activity hand reaches the 0 mark. Tap Next. 7. Tap Done. Your Withings Steel is now properly calibrated and the hands move to their correct position to display the current time. Updating the Firmware Version We regularly offer new firmware versions so that you can benefit from the latest features we add to our products. - Page 35 3. Tap Check for updates. 4. Put your Withings Steel close enough to your mobile device. If your Withings Steel is not up to date, the Withings Health Mate app will prompt you to install a new firmware version. 5. Tap Upgrade.
-
Page 36: User Guide Copyright
• We recommend that you protect access to the Withings Health Mate app with an additional passcode and/or Touch ID. You can do so from the app by going to Settings in the app and activating Touch ID and Passcode (only for iOS). -
Page 37: Safety Instructions
Water Resistance • Your Withings Steel can withstand a pressure similar to that of a 50 m (165 ft) depth. You can, therefore, use it when dishwashing, splashing or swimming. however, it can’t be used for diving or snorkeling. -
Page 38: Service And Maintenance
Service and Maintenance • Do not attempt to repair or modify your Withings Steel yourself. Service and maintenance not described in this User Guide should be performed by professional technicians. • Exposure to high or low temperatures, or any over use of the double tap feature may shorten battery life. -
Page 39: Specifications
Specifications Withings Steel • Two different colors: Black and White (Limited editions: Full Black, Rose Gold) • Watch diameter: 36.3 mm diameter (1.4 in. ) • Weight: 37 g (1.30 oz) • Wristbands: Fits wrists up to 200 mm. (7.9 in.) •... -
Page 40: Document Release Overview
“Updating the Firmware Version” on page 34 November 2016 v3.0 Update of the guide structure November 2017 v4.0 Withings graphic chart The screenshots in this manual are used for explanatory purposes. Your actual screens may differ from the screenshots in this manual. Withings Steel EN - 40... -
Page 41: Warranty
(“Warranty Period”). Withings’s published guidelines include but are not limited to information contained in technical specifications, safety instructions or quick start guide. Withings does not warrant that the operation of the Withings Steel will be uninterrupted or error-free. Withings is not responsible for damage arising from failure to follow instructions relating to the Withings Steel’s use. -
Page 42: Regulatory Statements
Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. This device complies with the R&TTE Directive. A copy of the EU Declaration of Conformity is available online at https://www. withings.com/fr/en/compliance Withings Steel EN - 42 v4.0 | November, 2017...
