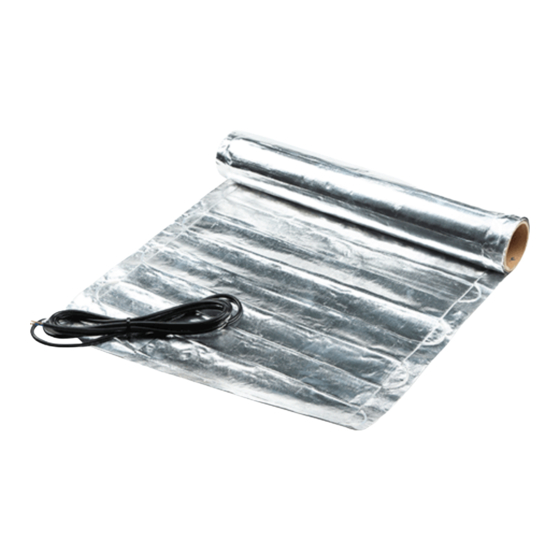

- Page 1 INSTALLATION AND USER MANUAL BVF L-PRO 100 Series WWW.BVFHEATING.COM...
-
Page 2: Table Of Contents
If you are not certain regarding relevant regulations, assign a professional with the installation. Typical areas of use and installation of BVF L-PRO BVF L-PRO is to be used for floor heating purposes only. Remove all remained sharp objects, nailheads, Designing floor heating and choosing the product and any contamination from the floor which may damage the system during installation or future... -
Page 3: Resistance Reading
1.4 10 years extended warranty 1. Laminate floor 5. Leveling concrete Product Distributor undertakes 10 years warranty for BVF L-PRO heating mats in relation of material 2. PE humidity barrier 6. Sized floor insulation and construction errors originated during production. Warranty shall be enforceable exclusively upon a 3. -
Page 4: Designing Floor Heating And Choosing The Product
3. Design the system Make sure that the size of BVF L-PRO heating mat matches the size of the surface to be heated, as well as Plan the optimal placement of the heating mat with full coverage. When defining the place of the the planned capacity. -
Page 5: Installation
2.5 meters away from the thermostat. Important information Make sure that the connection point (connection cable – heating cable) of the BVF L-PRO cable is placed in a conduit. Make sure to place the floor sensor of the thermostat exactly in between two heating cables (on heated surface), in a distance at least 65 cm from the wall, in a conduit pipe, to enable replacement if necessary. - Page 6 5. Read system resistance (1 time) Make sure that BVF L-PRO is directly fixed to the By using an electric measuring device, carry out a resistance reading (between the blue and brown floor on the entire surface. Avoid stepping on the terminals) and compare the data with the values shown in the table (Section 3.2).
-
Page 7: Registration Of Read Values
Carry out the resistance reading of the NTC floor sensor of the thermostat prior to both placing and particularly when heating-up for the first time. covering. In case of BVF brand thermostats: ~10 k 20°C. BVF L-PRO 100 SERIES installation and user manual... -
Page 8: Troubleshooting
If the system is equipped with a programmable thermostat, for the most efficient operation the use of programming functions is advised. BVF L-PRO floor heating system is NOT a heating storage or partly heating storage system, thus shorter heating-up times shall be taken into consideration when starting and programming heating cycles. -
Page 9: Extended Warranty
EXTENDED WARRANTY Product Distributor undertakes 10 years warranty for BVF L-PRO heating mats in relation of material and construction errors originated during production. Warranty shall be enforceable exclusively upon obtaining the original invoice and the properly filled-out and submitted warranty claim form, and alongside professional installation.
