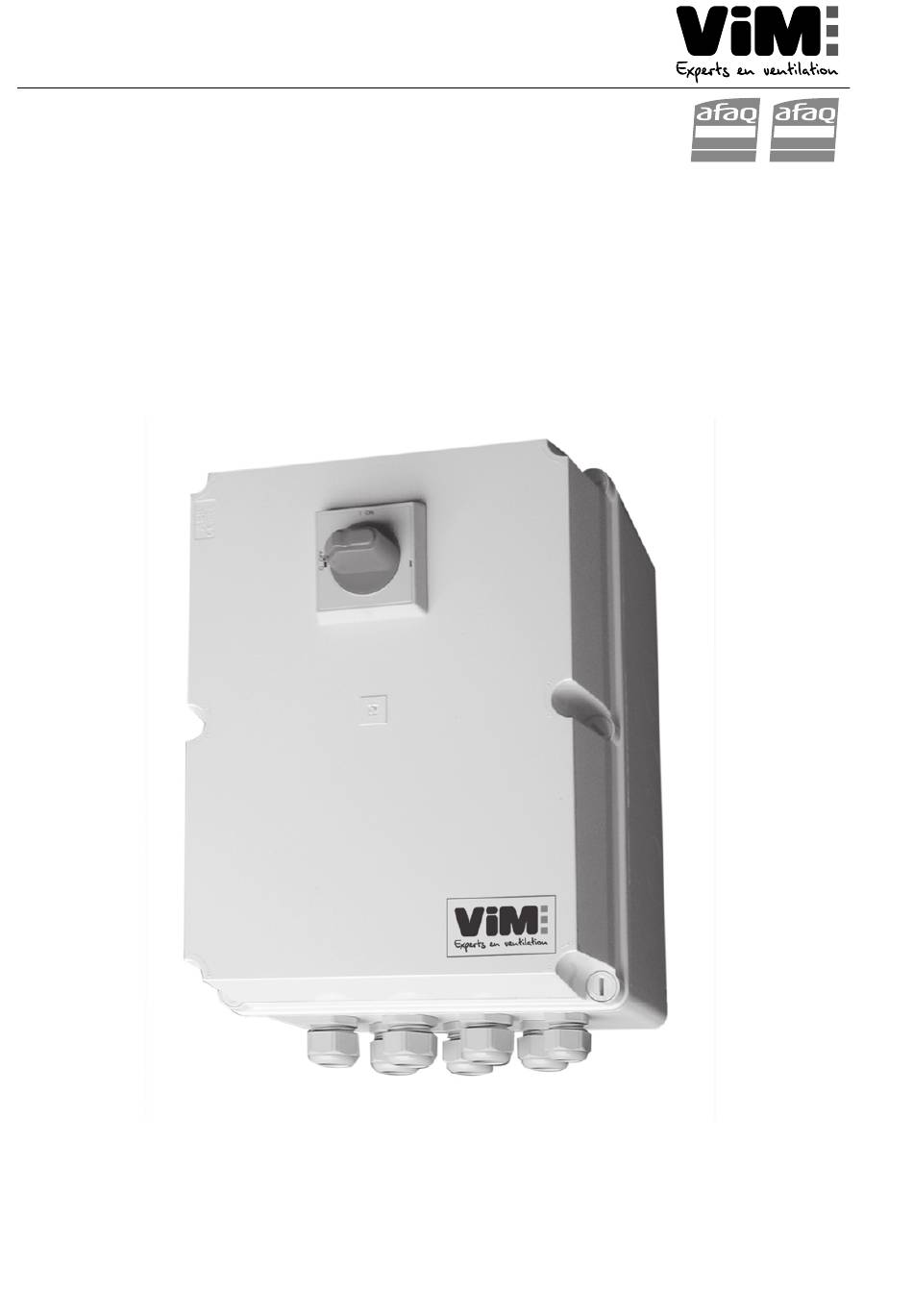

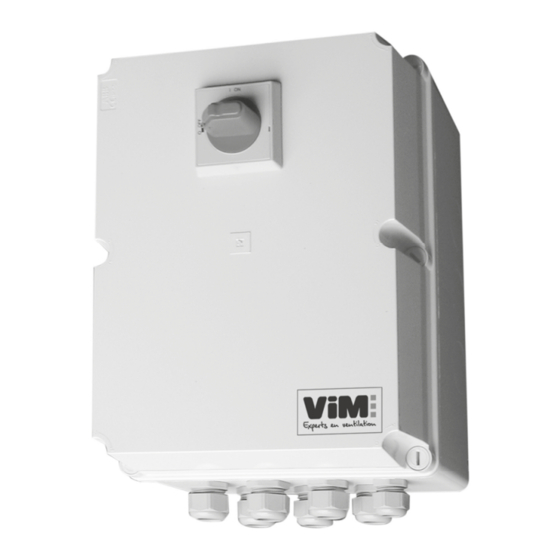

- Page 1 INSTRUCTION MANUAL INSTALLATION | WIRING | COMMISSIONING | MAINTENANCE | I S O 9 0 0 1 ISO 14001 Q u a l i t é Environnement AFNOR CERTIFICATION AFNOR CERTIFICATION PILOT PARC SLAVE UNIT Unit for indoor parking facilities for use with a PILOT PARC MASTER NT00000584-PILOT-PARC-ESCLAVE-AN-200723...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION ........................ 3 Warnings ..........................3 Reception - Storage ......................... 4 Warranty ..........................4 PRODUCT PRESENTATION ......................5 Dimensions (in mm) ........................5 Range ............................5 Characteristics .......................... 5 ELECTRICAL CONNECTIONS ......................5 Instructions before connecting....................5 Selection of cables and their protection, according to NF C 15-100 ........6 Maximum connection capacity and tightening torque .............. -
Page 3: General Information
We recommend that all those exposed to risks must comply with the accident prevention standards. VIM can in no case be held liable for any injury or material damage due to failure to comply with the safety instructions or due to any modification to product. -
Page 4: Reception - Storage
In any event, VIM is not responsible for equipment that has been modified, repaired or disassembled even if only partially. -
Page 5: Product Presentation
185A 225A 1000 1040 *mountings 2.2 Range Unit PILOT PARC E 1 DA 1 three-phase 400V 2-speed motor with Dahlander windings PILOT PARC E 1 BI 1 three-phase 400V 1-speed or 2-speed motor with separate windings 2.3 Characteristics Unit Polycarbonate Use: -20°C to +40°C. -
Page 6: Selection Of Cables And Their Protection, According To Nf C 15-100
3.1.2 Motor output Connect the motor phases directly to the corresponding thermal relay and the earth conductor on one of the specific terminals provided for this purpose. For versions controlling a Dahlander motor, check the securing of conductors connecting the KME to the thermal relay output Rtpv once the motor is connected. -
Page 7: Cable Gland
3.4 Cable gland Cable diameter tolerance range (mm): ISO M16 ISO M25 ISO M32 ISO M40 ISO M50 ISO M63 4.5-10 10-17 17-25 22-33 28-38 32-44 or 36-52* * For PILOT PARC ratings 185 and 225A. Rated current Power supply Power output Control of HS motor... -
Page 8: Annexes
ANNEXES 7.1 Connection and power wiring diagrams 7.1.1 Version with 1 Dahlander motor (PILOT PARC E 1 DA) = required power wiring; connect power supply directly to the switch disconnector. POWER SUPPLY 3 x 400V 50/60Hz + PE Compliant with French regulations... -
Page 9: Control Connection Wiring Diagrams
7.2 Control connection wiring diagrams 7.2.1 Connection of PILOT PARC MASTER 1 motor Case of connection incorporating the maximum controllable PILOT PARC SLAVE units PILOT PARC SLAVE PILOT PARC SLAVE PILOT PARC SLAVE N°1 N°2 N°3 PILOT PARC MASTER TERMINAL N° TERMINAL N°... - Page 10 7.2.2 Connection to 2-motor PILOT PARC MASTER Case of connecting incorporating the maximum controllable PILOT PARC SLAVE units PILOT PARC SLAVE PILOT PARC SLAVE PILOT PARC SLAVE N°1 N°2 N°3 PILOT PARC MASTER TERMINAL N° TERMINAL N° TERMINAL N° 2 MOTORS TERMINAL N°...
- Page 11 PILOT PARC MASTER 2 MOTORS PILOT PARC SLAVE PILOT PARC SLAVE PILOT PARC SLAVE TERMINAL N° N° 1 N° 2 N° 3 Auxiliary contact Auxiliary contact Auxiliary contact isolator switch INTZ isolator switch INTZ isolator switch INTZ Auxiliary contact Auxiliary contact Auxiliary contact isolator switch INTZ isolator switch INTZ...
- Page 12 Les prés de Mégy Sud – SOUDAN CS 60120 - 79401 ST MAIXENT L’ECOLE CEDEX Tel.: 05 49 06 60 38 or 05 49 06 60 25 – Fax: 05 49 06 60 36 sav@vim.fr - www.vim.fr 12/12 NT00000584-PILOT-PARC-ESCLAVE-AN-200723...
