Summary of Contents for EGi Millennium IP Series

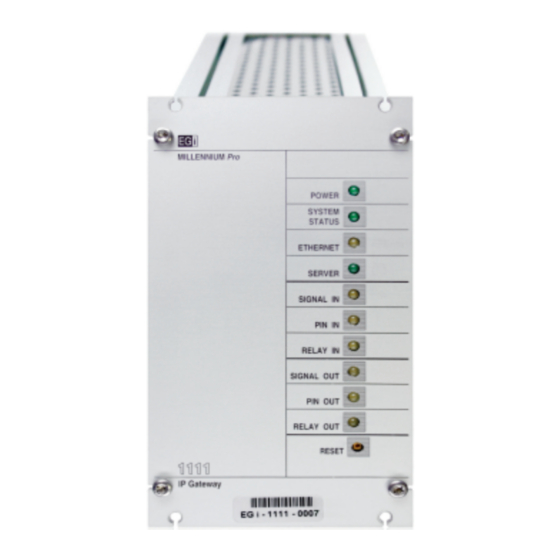

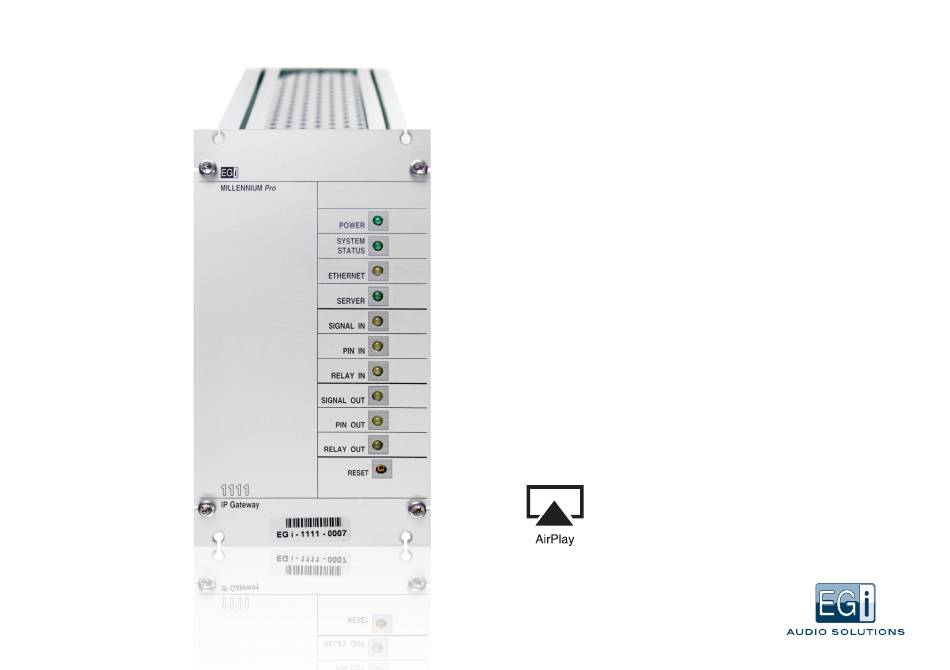

  • Page 1 Gateway 1111 - Millennium IP AirPlay-compatible...
  • Page 2 Gateway 1111 - Millennium IP Dear customer, Before you start reading this manual on EGi’s Gateway 1111 Millennium IP, we would like to thank you for the trust you have placed in us. Thanks to this interface you will be able to send IP audio and voice anywhere in the world.
  • Page 3 Gateway 1111 - Millennium IP RELAY RELAY POWER and ON LED . 12 IN balanced audio input through 6.3 mm jack or female XLR connector. System status LED. 13 PIN IN audio and relay inputs referred to ground 4, via plug-in terminal block. 14 OUT balanced audio input through male XLR connector.
  • Page 4 RESET functions The RESET button has 3 functions: If you have any problems entering using the browser, click on the lower right of the EGi User screen, • When pressed for less than 1 sec. the type in the username and password, and click Start session with the mouse.

  • Page 5: Overview Menu

     Remote control from multimedia equipment, like smartphone, table or PC  15 V power supply through terminal block or coaxial connector  Audio input and output through XLR connectors or EGi PIN compatible terminal block (3VRMS AC+7V DC).  Output relay for amplifier control or auxiliar function.

  • Page 6: Network Menu

    IPv4-Netmask 255.255.255.0 In "System  EGi user Password" the password and the EGi username can be changed. To change the password, click the “System” menu, and then in "EGi user password” enter the new IPv4-Gateway(optional) 192.168.1.1 password and press “Save”. To exit without saving changes, press “Revert”.

  • Page 7: Backup/Flash Firmware

    It will be a file of the type: EGiMillenniumIP_upgrade_files.tar Next click the “Save image” button to download the file to the unit EGI-1111-0007 Overview  Network  System ...
  • Page 8 Gateway 1111 - Millennium IP Services Millennium IP Work modes EGI-1111-0007 Overview  Network  System  Services  Logout Help To configure the unit’s work mode and the audio player settings, enter: "Services  Millennium IP". Millennium IP Millennium IP configuration form...
  • Page 9 WORK MODES DEPENDING ON WHETHER IT IS INTEGRATED WITH MILLENNIUM OR USED SEPARATELY Mode 1: Integration with Millennium • Decentralisation via IP networks. (Audio link Mode). – Installations in tunnels (distributed units). – Large buildings (decentralised racks). EGI-1111-0007 Overview  Network  System  Services ...
  • Page 10 – PIN state publishing: it transmits to the network, the status of the PIN input of the unit to be able to automatically control the client module outputs. There are 3 options: periodically transmit the EGI-1111-0007 current status of the input (REMOTE), always transmit ON or always transmit OFF.
  • Page 11 • REMOTE_PIN: shows the current status of the PIN input of the server module. • REMOTE_RELAY: shows the current status of the RELAY input of the server module. • REMOTE_ANY: activated if any of the server module inputs are active. EGI-1111-0007 Overview  Network ...
  • Page 12 MPD client from PC, tablet or mobile. They must have M3U format. To load audio files in the unit, write the following in Windows Connect to EGi-1111-002 Explorer: • DLNA: ON/OFF. This plays the audio from a DLNA device, such as PC, tablet and mobile based on Android or Windows.
  • Page 13 Gateway 1111 - Millennium IP VoIP only work mode Services VoIP/Multicast For VoIP SIP and Multicast configuration, enter "Services  Millennium VoIP" , the following screen will be shown: EGI-1111-0007 Overview  Network  System  Services  Logout Help...
  • Page 14 VoIP call. – Call identification: this is the name that would be seen if the unit were the one calling (not applicable). – Extension: telephone extension number in the PBX. EGI-1111-0007 Overview  Network  System ...
  • Page 15 – Latency: 120 millisecond, recommended minimum. "\\EGi-1111-0_ _ _\dindon" and load files in ".WAV" format or extension. The priority of each channel is shown by the number on the left, from 1 to 10, where 1 is the highest priority .
  • Page 16 ELECTROACÚSTICA GENERAL IBÉRICA S.A. PRESCRIPCIÓN A INGENIERÍAS / PROJECT CONSULTING DELEGACIONES / SALES OFFICES Avda. Almozara, 79 • 50003 Zaragoza - Spain Estudios y proyectos Centrales Delegación Centro Tel. +34 976 405 353 • Fax +34 976 405 354 e-mail: sat_consultas@egiaudio.com C/ Juan de Mariana, 19, local 20 e-mail: info@egiaudio.com Tel.
