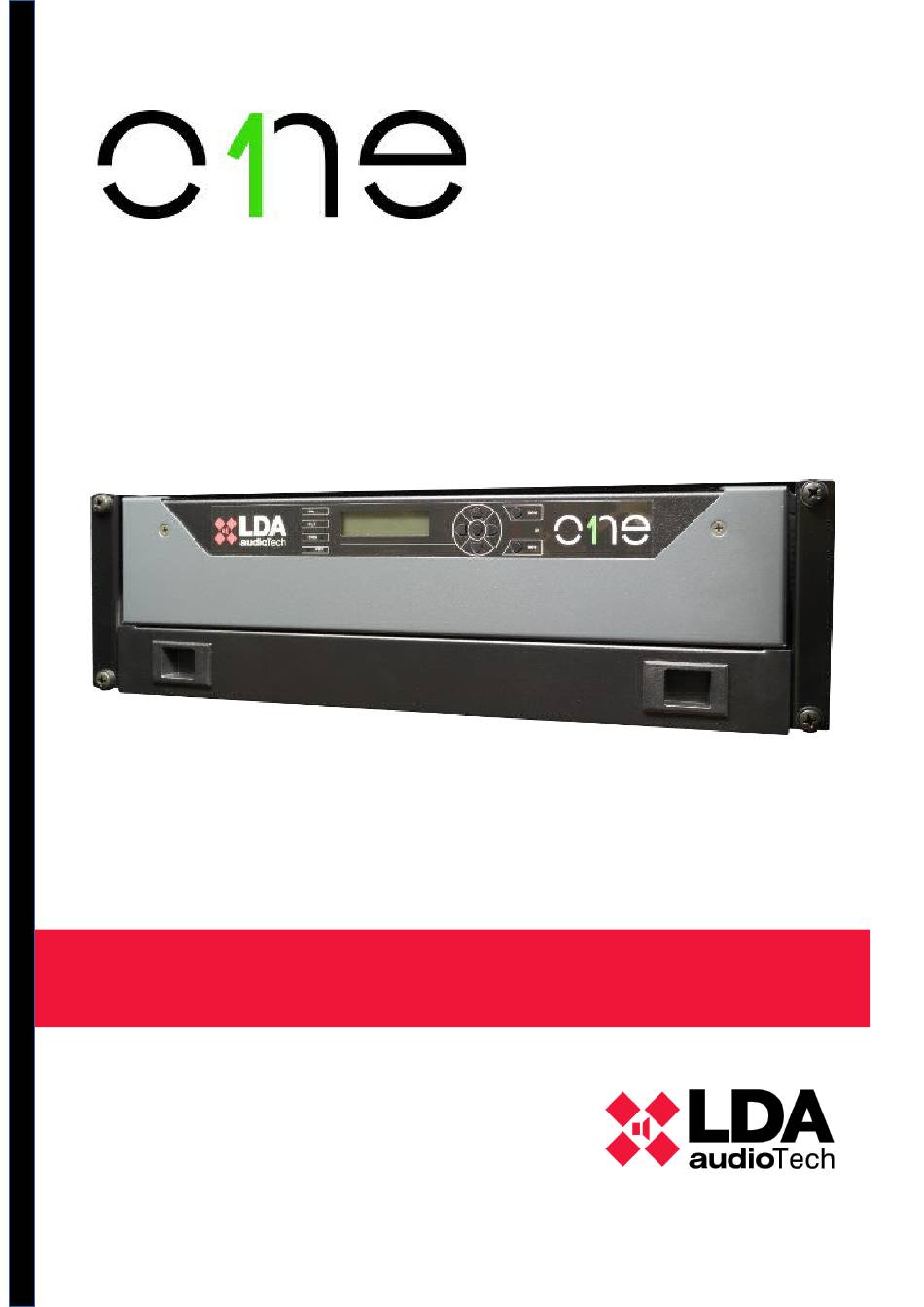

- Page 1 User manual Rack mounting accesory19”ONE-500: ONE-RMA...
- Page 2 Index 1INTRODUCTION........................1 1.1General description.......................1 2INSTALLATION........................2 3TECHNICAL CHARACTERISTICS..................4...
- Page 3 User Manual: Rack mounting accesory19”ONE-500 ONE-RMA 1 INTRODUCTION allows to install a ONE-500 unit in a 19 "rack cabinet from The mounting kit ONE-RMA 500 to 900 mm deep. With only 3U of height (with ONE-500, installed) it provides a solid base of fixation for the equipment as well as making it extractable to facilitate the wiring of the system and its subsequent maintenance.
- Page 5 User Manual: Rack mounting accesory19”ONE-500 ONE-RMA 2 INSTALLATION Step View Description Joint the frontal piece (F) to the sides (L) y (R) using 4 M3 screws (T3). Unfold the steel guide, keeping the fold edge to the rear side of the rack, match the rear piece (B) hole to the second last hole of the steel guide.
- Page 6 Check that the rear supports are in the side of the structure assembled in steps 1 and 2. Screw the frontal (F) of the support ONE- RMA to the rack using 4 M6 screws (B6) and 4 nylon packing rings M6 (W6). Remember the lower screw must coincide with the step 4 height.
- Page 7 User Manual: Rack mounting accesory19”ONE-500 ONE-RMA Prepare the ONE-500 unit for installation on the ONE-RMA support: 1. Make sure that the front of the equipment is correctly oriented (see user manual ONE-500) 2. Remove the 2 screws from the lower...
- Page 8 3 TECHNICAL CHARACTERISTICS Model ONE-RMA Material Color Black RAL9005 Size 3U 19” rack. Extendable bottom racks from 500 to 900mm Tray extension 550 mm / 21.6” Paching size 490 x 420 x 50 mm / 19.3” x 16.5” x 2”...
