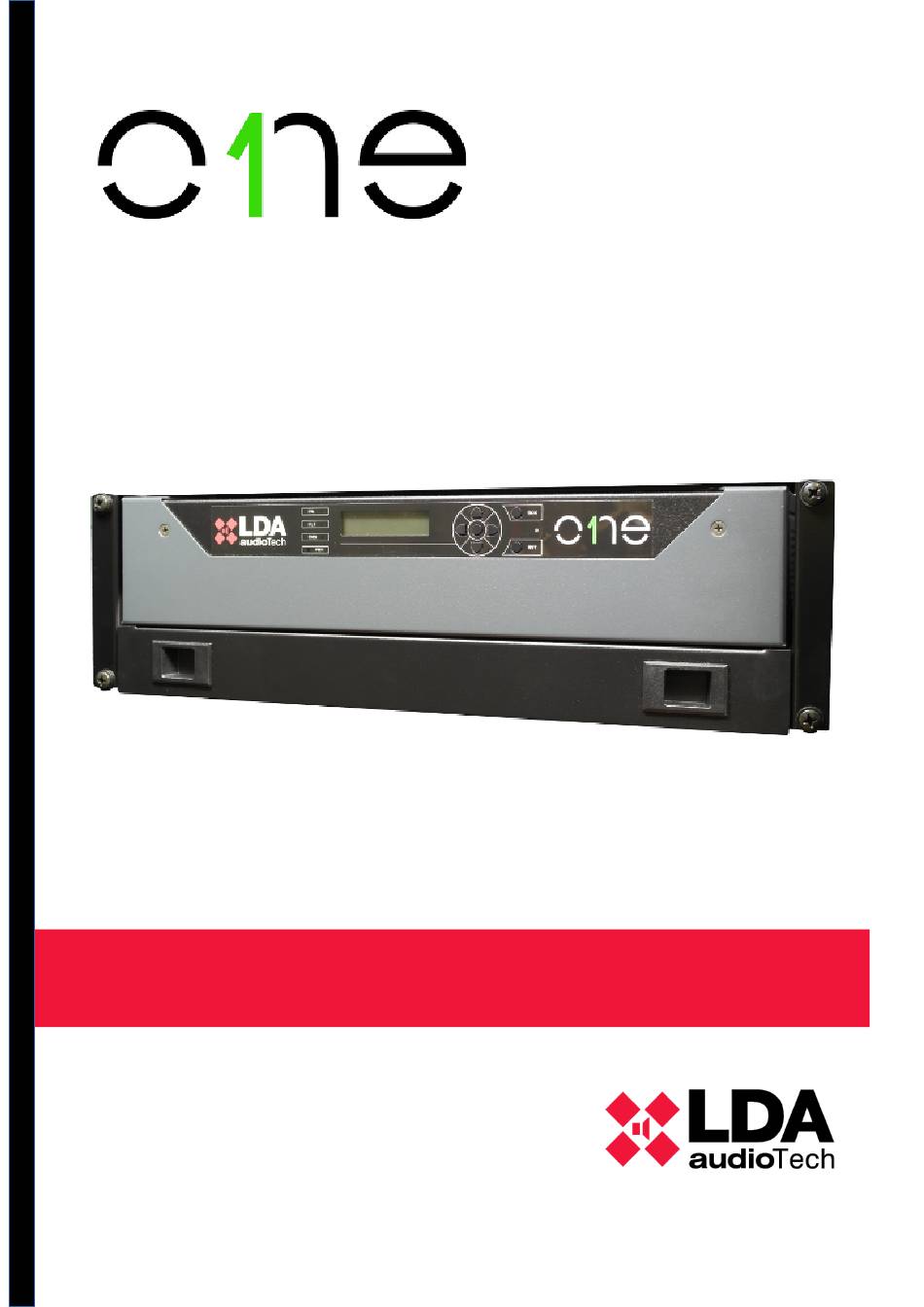

- Page 1 User manual Rack mounting accesory19”ONE-500: ONE-RMA...
- Page 2 Index 1INTRODUCTION........................1 1.1General description.......................1 2INSTALLATION........................2 3TECHNICAL CHARACTERISTICS..................4...
-
Page 3: General Description
ONE-500 unit in a 19 "rack cabinet from The mounting kit ONE-RMA 500 to 900 mm deep. With only 3U of height (with ONE-500, installed) it provides a solid base of fixation for the equipment as well as making it extractable to facilitate the wiring of the system and its subsequent maintenance. - Page 5 User Manual: Rack mounting accesory19”ONE-500 ONE-RMA 2 INSTALLATION Step View Description Joint the frontal piece (F) to the sides (L) y (R) using 4 M3 bolts (T3) Unfold the steel guide almost completely and match the holes until the thread of the rear piece (B) is visible.
- Page 6 Check that the rear supports are in the side of the structure assembled in steps 1 and 2 Screw the frontal (F) of the support ONE- RMA to the rack using 4 M6 bolts (B6) and 4 nylon packing rings M6 (W6). Remember the lower bolt must coincide with the step 4 height.
- Page 7 ONE-500) 2. Remove the 2 bolts from the lower front corners of ONE-500 Place the ONE-500 unit on the ONE- RMA support by putting the back side of the equipment so that the vertical tabs of the back piece (B) coincide with the slots on the ONE-500 base.
- Page 8 3 TECHNICAL CHARACTERISTICS Model ONE-RMA Material Color Black RAL9005 Size 3U 19” rack. Extendable bottom racks from 500 to 900mm Tray extension 550 mm / 21.6” Paching size 490 x 420 x 50 mm / 19.3” x 16.5” x 2” Net weight 3.6 Kg / 7.9 lb Total weight...
