Rainier Kestrel Assembly

TOOLS
We recommend you source and prep your tools before heading to your site.
In addition, be sure to have hard-hats and first aid materials on hand!
Two People

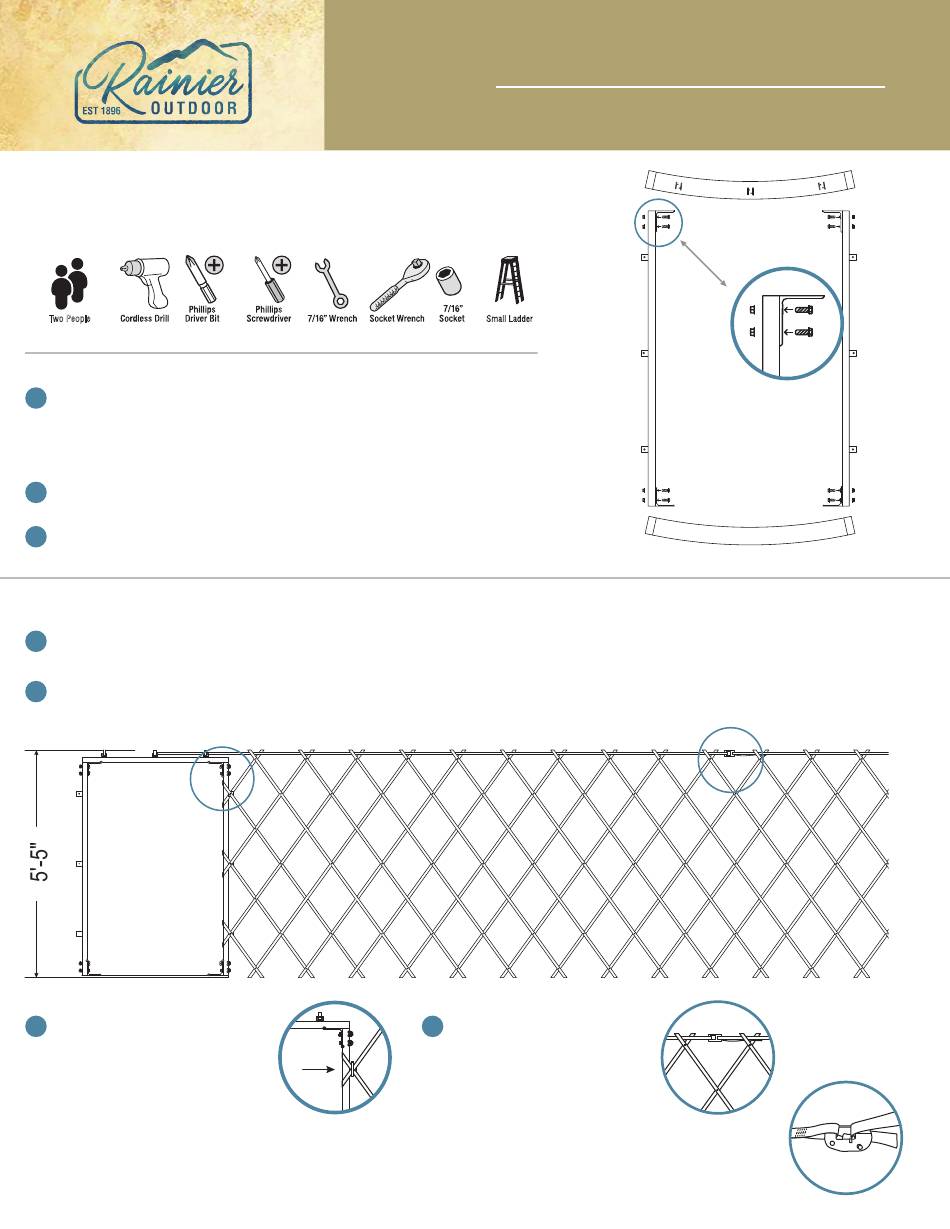

Assemble the Door Frame
1
Locate the 4 pieces for the frame
- 1x Header - urved with rafter brackets on top
C
- 1x Footer - urved without rafter brackets
C
- 2x Vertical ections -
S
2
Assemble door frame with provided screws using 1x "L" bracket at each
corner. Nuts should go to outside of frame.
3
Stand door frame upright
Attaching the Lattice
Lay lattice on the ground, each person should grasp one side of the lattice wall and move
1
outwards, elongating the lattice until it measures 5' 5" from top to bottom.
2
With each person grasping the lattice about 1/3 of the way in, stand the lattice upright.
3
Attach one end of lattice to
door frame, where it
connects to aluminum "L"
bracket at the door. The
brackets will line up with the
X's on the end of the lattice.
Use the smaller white zip-ties
to attach to door frame.
OR OR
Long pieces with angle brackets
KESTREL ASSEMBLY
HEADER
Aluminum "L"
FOOTER
4
Take the tension strap, and
insert in between each "X"
along the top of the lattice.
Secure the band as shown
with the cam buckle, and
tension to the black mark on
the webbing.
TIPI ASSEMBLY
Brackets Face Upwards
Bracket
Cam Buckle
