2
6. Plug-and-Play ports
7. Adjustment knob
8. LCD
9. Hub LEDs
TEACH-IN: Teach-in in progress or required
HOME: Door(s) closed
TRACKING: Door position / Detection zone tracking
75.5927.08 ALLEGION LZR-MICROSCAN T 20200312
75.5927.08 ALLEGION LZR-MICROSCAN T 20200312
1
5
8

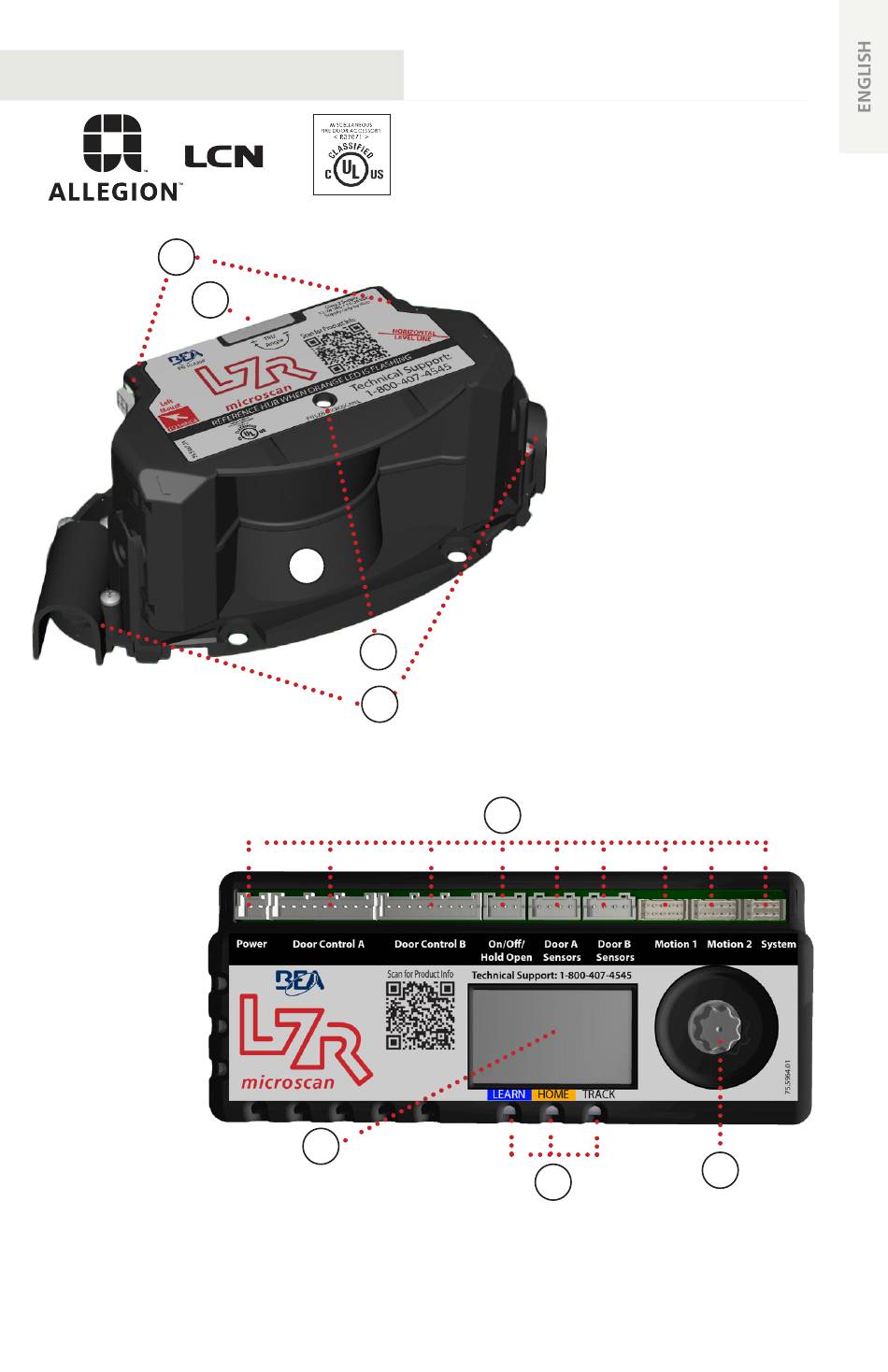

LZR-MICROSCAN T
Stand-Alone, Door-Mounted, Safety Sensor
System for Automatic Swing Doors
1. Tilt adjustment
2. Sensor connection ports
3. Sensor LED
3
4. End caps
4
5. Optical window
6
green = operational
red = in detection/monitoring
orange = error (reference hub LCD)
7
9
(US version)
Page 1 of 16
Page 1 of 16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allegion LZR-MICROSCAN T
Summary of Contents for Allegion LZR-MICROSCAN T
- Page 1 7. Adjustment knob 8. LCD 9. Hub LEDs TEACH-IN: Teach-in in progress or required HOME: Door(s) closed TRACKING: Door position / Detection zone tracking 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 Page 1 of 16 Page 1 of 16...
-
Page 2: Technical Specifications
– examples of these safety inspections can be found on an AAADM safety information label (e.g. ANSI/DASMA 102, ANSI/DASMA 107). Verify that all appropriate industry signage and warning labels are in place. Page 2 of 16 Page 2 of 16 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312... -
Page 3: General Installation Tips
READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SET-UP LZR-MICROSCAN T sensors are intended to be used with PEDESTRIAN, SWING-DOOR systems. PRECAUTIONS Shut off all power going to header before attempting any wiring procedures. ‰ ‰ Maintain a clean and safe environment when working in public areas. -
Page 4: Installation
Refer to Mounting Template 75.5908 when using the Mounting Arm kit. * HOLE SIZE: Be sure to comply with hole sizes called out on the Mounting Template. * LZR-MICROSCAN T SENSORS AND MOUNTING ARM ACCESSORIES ARE HANDED. PLEASE OBSERVE WHEN MOUNTING. - Page 5 Secure the Door Loop to the Master Sensor using the end cap and screws provided. IF NECESSARY, REPEAT THIS SECTION FOR A SECOND DOOR LEAF. DO NOT APPLY COVERS UNTIL THE SYSTEM IS FULLY OPERATIONAL. 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 Page 5 of 16...
- Page 6 Switches must be wired in series with orange and orange/black wires of System Harness plugged into hub. NORMAL WIRING WIRING IN SERIES for single doors for simultaneous pairs or dual-egress pairs Page 6 of 16 Page 6 of 16 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312...
- Page 7 T5/6/7/8 EXTERNAL MONITORING LZR-MICROSCAN T hub/sensors are intended to be monitored by the door system (see Application Note #31, 76.0031). If the door control does not utilize monitoring, do not use monitoring wires. When utilizing monitoring, the sensor LED will briefly flash RED during monitoring communication with door control. This indicates that external monitoring is functional.
- Page 8 Plug Power Supply Harness into hub port labeled Power. LZR-MICROSCAN T hub/sensors must be powered by a UL Class 2 power supply limited to 15 W. If a NEMA 5-15R outlet is not available in door header, cut off NEMA 5-15P plug and wire-nut to 110 VAC observing polarity and grounding.
- Page 9 For dual-egress doors, push the right door (Door B) open at least 10 degrees when prompted. continued on next page 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 Page 9 of 16...
- Page 10 Sensor in detection / Sensor monitoring Orange* Error Sensor in error...reference hub LCD * see TROUBLESHOOTING section for descriptions of orange LED error indications Page 10 of 16 Page 10 of 16 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312...
- Page 11 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 Page 11 of 16 Page 11 of 16...
- Page 12 Page 12 of 16 Page 12 of 16 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312...
-
Page 13: Troubleshooting
Verify that there are no breaks anywhere in the wire harness. Door control does not utilize Turn monitoring off in the hub (Menu 2 – ADVANCED). monitoring 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 Page 13 of 16 Page 13 of 16... -
Page 14: Set-Up Errors
If the sensor causes the error, you’ll see an orange blinking LED on that sensor(s) with a number of blinks which correspond with the error type. This error will by displayed on the LZR-MICROSCAN T hub LCD screen as shown (see “Orange Sensor LED Errors”). -
Page 15: Runtime Errors
Hub is not getting info from sensors Sensor is not plugged in. Sensor and/or hub is too cold Warm sensor/hub and perform “teach-in”. 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 Page 15 of 16 Page 15 of 16... - Page 16 The sensor reset due to Replace the sensor. BOTH unknown error The sensor is locked due to Cycle the power. BOTH several consectutive resets Page 16 of 16 Page 16 of 16 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312 75.5927.08 ALLEGION LZR-MICROSCAN T 20200312...
