8310-877 HEADER-MOUNTED SAFETY SENSOR
DESCRIPTION
1
TECHNICAL SPECIFICATIONS
Installation height (variable):
Mounting angles
HMSS only:
HMSS w/Spacer:
Power supply:
Monitoring request input:
Frequency:
Output:
Relay hold time:
Operating temperature:
Immunity:
Cable length:
Weight:
Dimensions:
Material:
Housing color:
75.5933.04 ALLEGION HMSS 20190723
3
2
9' 0" maximum (recommended: 6' 6" – 8' 0")
5°, 10° (factory default setting: 5°)
0°, 5°, 10°
12 – 24 VAC / VDC ±10%
12 – 30 VDC required (polarity-sensitive)
min. pulse width: 10 ms (active low)
50 – 60 Hz
max. voltage at contacts: 60 VDC / 125 VAC
max. current at contacts: 1 A
max. switching power: 30 W (DC), 60 VA (AC)
0.5 – 9 seconds
-22 – 140 °F
Immune to electrical and radio frequency interference
4'
1 lb 11 oz (765 g)
12" (W) x 2" (H) x 2" (D)
(300.35 mm x 49.50 mm x 48.00 mm)
Aluminum and ABS plastic
Black, anodized aluminum
Presence sensor w/monitoring
2
4

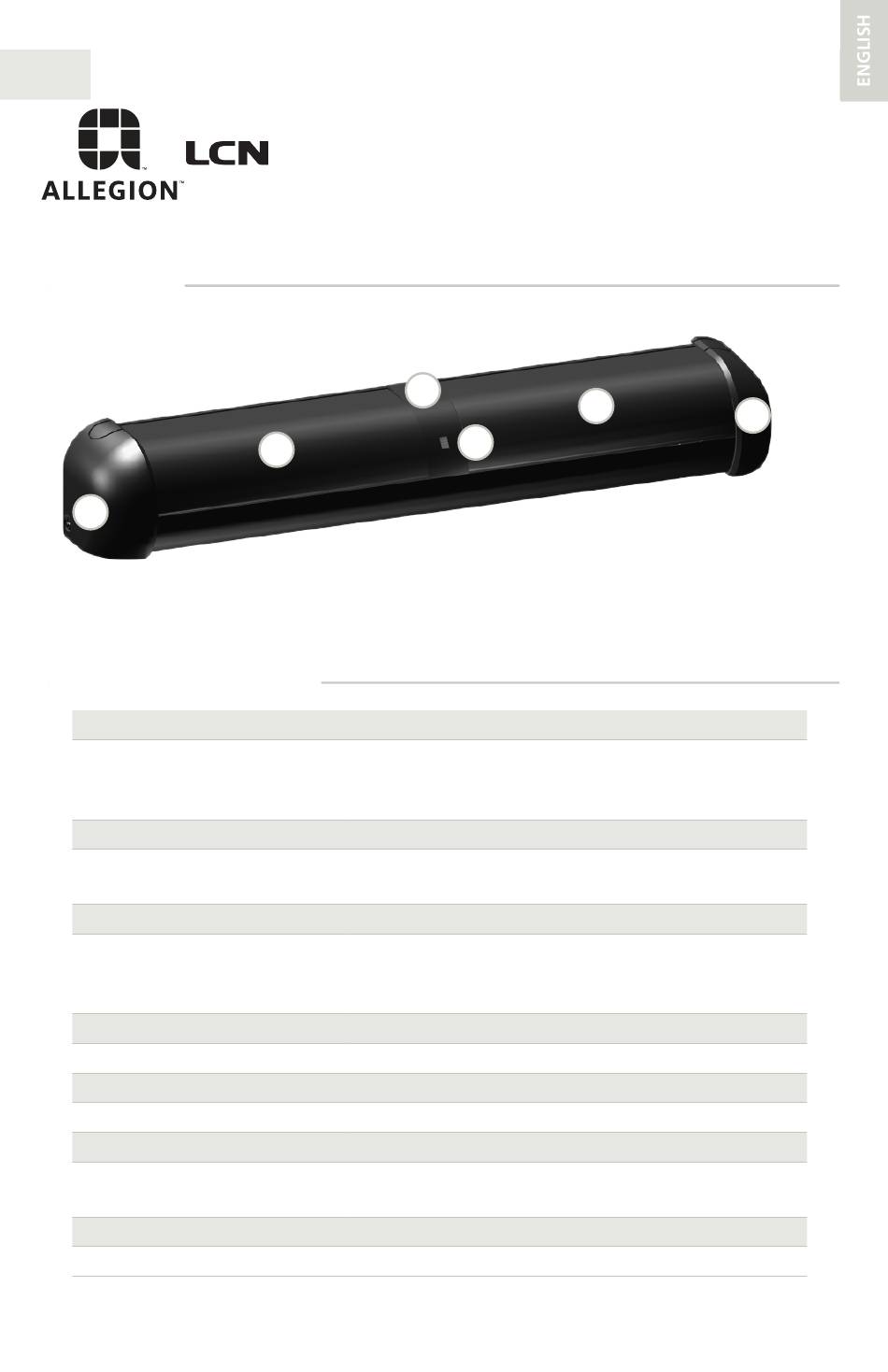

1. End caps
2. Lenses
3. Center eye shield
4. LED
Specifications are subject to change without prior notice.
All values measured in specific conditions.
1
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Allegion 8310-877
Summary of Contents for Allegion 8310-877
- Page 1 8310-877 HEADER-MOUNTED SAFETY SENSOR Presence sensor w/monitoring DESCRIPTION 1. End caps 2. Lenses 3. Center eye shield 4. LED TECHNICAL SPECIFICATIONS Installation height (variable): 9’ 0” maximum (recommended: 6’ 6” – 8’ 0”) Mounting angles HMSS only: 5°, 10° (factory default setting: 5°) HMSS w/Spacer: 0°, 5°, 10°...
-
Page 2: Installation Tips
• Only trained and qualified personnel are recommended for installation and set-up of the sensor. • Following installation, always test for proper operation (according to ANSI 156.10) before leaving the premises. • The warranty is invalid if unauthorized repairs are made or attempted by unauthorized personnel. Page 2 of 12 75.5933.04 ALLEGION HMSS 20190723... -
Page 3: Mechanical Installation
Phillips- sensor. rotating out. Do this head screw. carefully, to avoid damage to the light tube on the inner side of the shield. 75.5933.04 ALLEGION HMSS 20190723 Page 3 of 12... -
Page 4: Sensor Installation
This would detection field may be altered by adjusting improve the detection field location across the angle (see directions below). the threshold area of the doorway. Page 4 of 12 75.5933.04 ALLEGION HMSS 20190723... - Page 5 • Senior Swing operator: Connect the white 10-pin connector to the HMSS sensor, and connect the black 6-pin connector to the controller P1 plug. DO NOT USE the 7-pin terminal. See below. • All other Allegion power operators: Remove the black 6-pin connector and strip the wires to make connection to the controller’s terminal strip.
- Page 6 "door closed" position. NOTES: 1. If the door control requires a Learn cycle upon powering, it is recommended to allow the doors to complete a Learn cycle before applying power to the sensor. Page 6 of 12 75.5933.04 ALLEGION HMSS 20190723...
-
Page 7: Remote Control Setup
Sensor will unlock with one press of UNLOCK key when set to 0000. Sensitivity Hold Time Output Config Auto-Learn Time Pattern Width Pattern Depth Immunity Set-up see next page for specific parameter settings 75.5933.04 ALLEGION HMSS 20190723 Page 7 of 12... - Page 8 3. Change IR frequency on one sensor to "2". 4. If in an application with high-gloss floors or multiple doors installed in vestibules, change to different frequency. Change one sensor to "3", and then change the other sensor to "4". Page 8 of 12 75.5933.04 ALLEGION HMSS 20190723...
-
Page 9: Push-Button Set-Up
0 – 9 flashes (default = 1) 7 flashes Pattern depth (door open) 1 – 6 flashes (default = 1) 8 flashes Pattern depth (door closed) 1 – 6 flashes (default = 1) 75.5933.04 ALLEGION HMSS 20190723 Page 9 of 12... - Page 10 Row 1 (spots 1 – 6) remain on even during the "closed-door" position. 1: DEEP 2: MIDDLE 3: LIMITED 4: DEEP WITHOUT ROW 1 5: MIDDLE WITHOUT ROW 1 6: LIMITED WITHOUT ROW 1 Page 10 of 12 75.5933.04 ALLEGION HMSS 20190723...
-
Page 11: Troubleshooting
Verify DIP switch poisiton (must be switched to the left). is OFF Visible Monitoring The DIP switch is set to ON Place the monitoring DIP switch to the right (OFF). Indication LED flashes continuously 75.5933.04 ALLEGION HMSS 20190723 Page 11 of 12... - Page 12 Allegion at 1-877-671-7011. If you must wait for the following workday to call Allegion, leave the door inoperable until satisfactory repairs can be made. Never sacrifice the safe operation of the automatic door or gate for an incomplete solution.
