Zennio ALLinBOX 88 Technical Documentation page 3

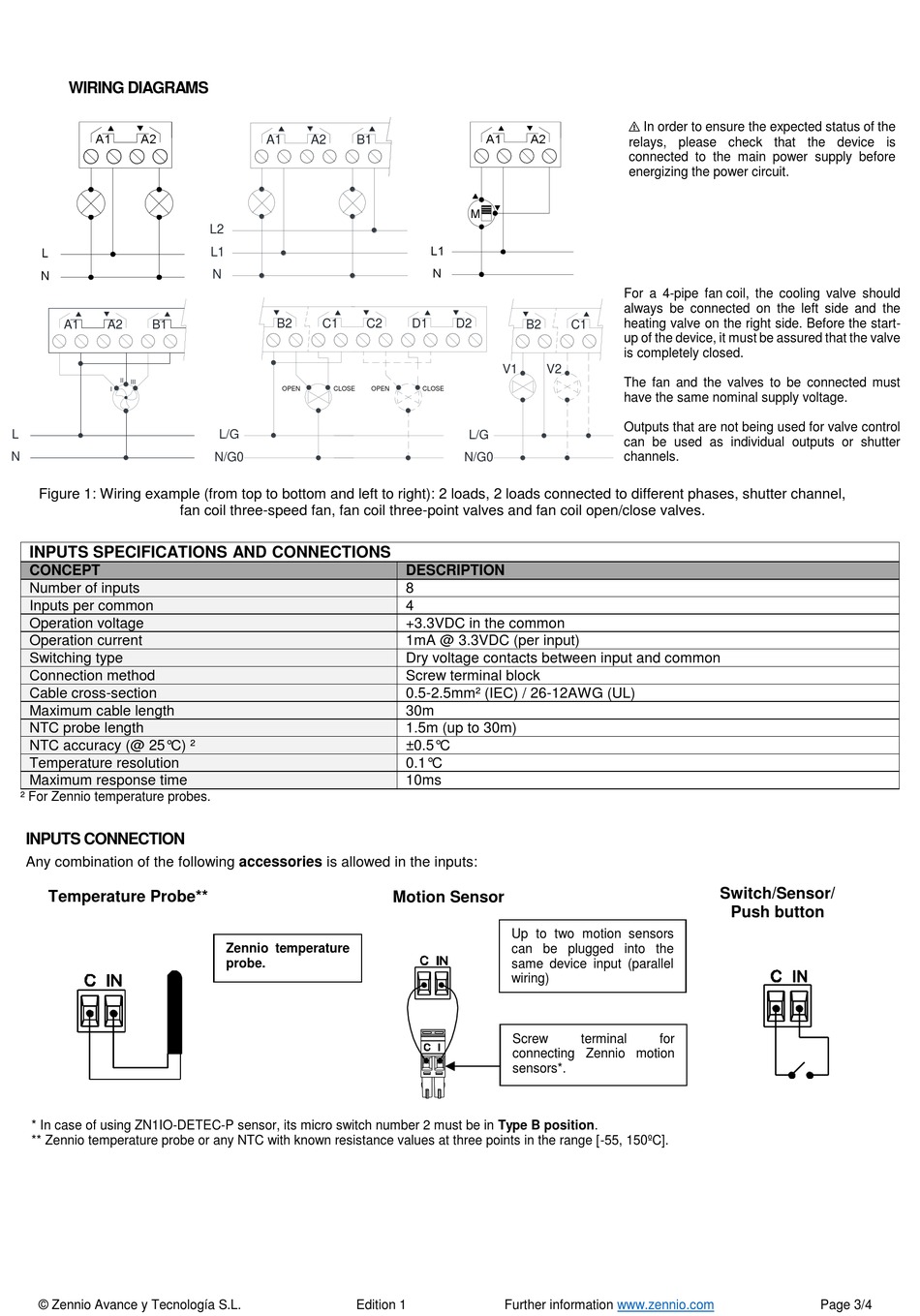

WIRING DIAGRAMS
A A2
A1 A2 B1
II
III
I
L
N
Figure 1: Wiring example (from top to bottom and left to right): 2 loads, 2 loads connected to different phases, shutter channel,
fan coil three-speed fan, fan coil three-point valves and fan coil open/close valves.
INPUTS SPECIFICATIONS AND CONNECTIONS
CONCEPT
Number of inputs
Inputs per common
Operation voltage
Operation current
Switching type
Connection method
Cable cross-section
Maximum cable length
NTC probe length
NTC accuracy (@ 25°C) ²
Temperature resolution
Maximum response time
² For Zennio temperature probes.
INPUTS CONNECTION
Any combination of the following accessories is allowed in the inputs:
Temperature Probe**
* In case of using ZN1IO-DETEC-P sensor, its micro switch number 2 must be in Type B position.
** Zennio temperature probe or any NTC with known resistance values at three points in the range [-55, 150ºC].
© Zennio Avance y Tecnología S.L.
OPEN ABRIR CLOSE CERRAR OPEN ABRIR
Motion Sensor
Zennio temperature
probe.
Edition 1
CERRAR CLOSE
DESCRIPTION
8
4
+3.3VDC in the common
1mA @ 3.3VDC (per input)
Dry voltage contacts between input and common
Screw terminal block
0.5-2.5mm² (IEC) / 26-12AWG (UL)
30m
1.5m (up to 30m)
±0.5°C
0.1°C
10ms
Up to two motion sensors
can be plugged into the
same device input (parallel
wiring)
Screw
connecting Zennio motion
sensors*.
Further information
⚠ In order to ensure the expected status of the
relays, please check that the device is
connected to the main power supply before
energizing the power circuit.
For a 4-pipe fan coil, the cooling valve should
always be connected on the left side and the
heating valve on the right side. Before the start-
up of the device, it must be assured that the valve
is completely closed.
The fan and the valves to be connected must
have the same nominal supply voltage.
Outputs that are not being used for valve control
can be used as individual outputs or shutter
channels.
Switch/Sensor/
Push button
terminal for
www.zennio.com Page 3/4
