- Page 1 Instruction manual HLSD-2 Circular Access Tank Cover IM-TE91K041-EN1 ESE02264 Date of issue: August 29, 2012 First published: August 29, 2012...
-
Page 3: Table Of Contents
Opening of cover ..................... 11 Cleaning ........................11 Maintenance ......................11 Other ........................11 Service / Repair ....................... 12 Warranty ........................12 How to contact Alfa Laval Tank Equipment A/S ............13 Instruction Manual, HLSD-2 Circular Access Tank Cover Page 1 IM-TE91K041-EN1... -
Page 5: Introduction
© 2012 Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. -
Page 6: General Description

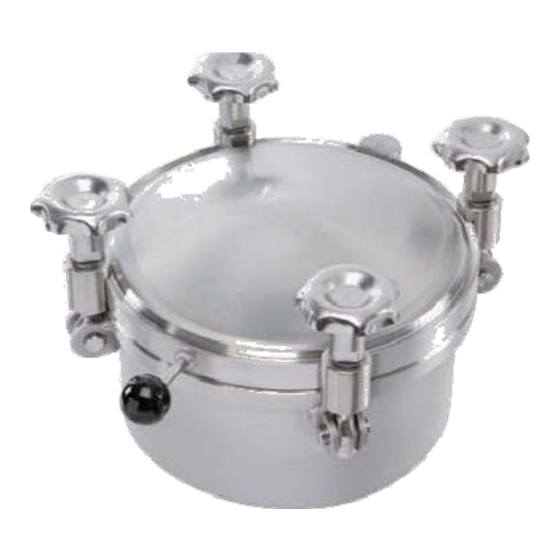

General description Application Outward opening manhole cover type HLSD-2 is used on top of pressurized tanks and containers where closeable means of access to the interior of the vessel is required. HLSD-2 is approved and can be used on pressure vessels according to PED 97/23/EC. -
Page 7: Technical And Physical Data
Technical and physical data Standard The HLSD-2 pressure cover is designed according to Merkblatter AD 2000 newest edition and designed for installation in pressure vessels until hazard category IV. The cover is not pressure tested and must be tested as a part of the pressure vessel. -
Page 8: Selection Table
Certificates - 3.1 Certificate (EN10204) - EC unit verification module G according to PED 97/23/EC - FDA declaration §177.2600 for seal material (except FPM seal) - ASME BPE Certificate (option) Page 6 Instruction Manual, HLSD-2 Circular Access Tank Cover IM-TE91K041-EN1... -
Page 9: Intended Purpose
If advice and instruction of operating instructions are ignored. • For incorrect operation or for insufficient maintenance of the cover. • For any kind of change of function of cover without prior written agreement by Alfa Laval Tank Equipment A/S. • If covers are modified by non-authorised persons. -
Page 10: Safety Regulations
• Screwed sight glass / circular sight glass • Spring assist • Limit switch • Locking bolt • Safety grill • Safety valve • Etc for other special items agreed Page 8 Instruction Manual, HLSD-2 Circular Access Tank Cover IM-TE91K041-EN1... -
Page 11: Weld Into Position
As the customer selects the material by order, no warranty in relation to material lifetime is offered by Alfa Laval Tank Equipment A/S. It is the responsibility of the operator to make sure, that product coming in contact with the cover or seal, are suitable and the materials and seal are sufficiently resistant to the product / conditions. -
Page 12: Closure Of Cover
Cross tightening of the bolting arrangement should be used when applying torque to the nut / handle (e.g. North, South, East, West where appropriate). The maximum torque for the screws is 40 Nm for M12 Screws and 60 Nm for M16 Screws. Page 10 Instruction Manual, HLSD-2 Circular Access Tank Cover IM-TE91K041-EN1... -
Page 13: Opening Of Cover
We recommend inspection of each cover at least annually against mechanical damage, corrosion and tightness. Other When ordering replacement parts, we require the order number and the Alfa Laval serial number stated on the cover / lid. Instruction Manual, HLSD-2 Circular Access Tank Cover... -
Page 14: Service / Repair
Upon every return of the device, no matter if for modifications or repair, it is necessary to contact your local Alfa Laval office to guarantee a quick execution of your request. Please inform us by sending an email to: Alteq.PartsandService@ alfalaval.com. All frames and lids are marked with traceability numbers which identify the production series. -
Page 15: How To Contact Alfa Laval Tank Equipment A/S
How to contact Alfa Laval Tank Equipment A/S For further information please feel free to contact: Alfa Laval Tank Equipment A/S Baldershoej 19 P.O. Box 1149 2635 Ishoej Denmark Phone no.: +45 43 55 86 00 Fax no.: +45 43 55 86 01 www.alfalaval.com... - Page 16 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
