HearthSong 729829 Safety And Assembly Instructions

B
A
B
4. Attach the curved ends.
Item #729829 Made in China exclusively for HearthSong. ©2014. HearthSong, Madison, VA 22727 (800) 533-4397
Safety and Assembly

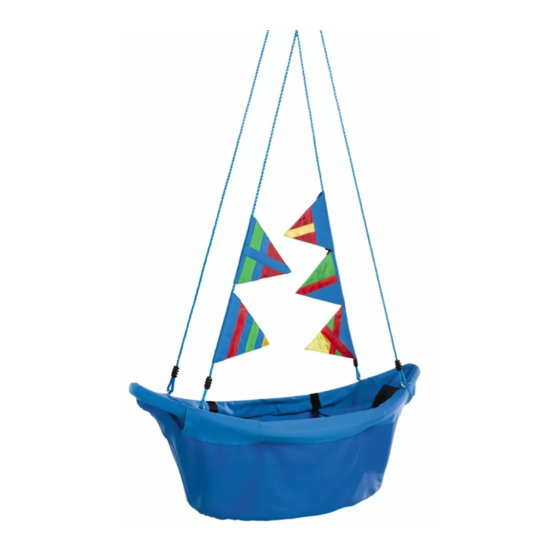

Instructions for Boat Swing
Intended solely for family and domestic use—not for a commercial playground or day care.
Two adults needed for assembly. Maximum weight capacity: 250 lbs. For ages 3–6 years.
Hanging hardware not included. Ideally, the Boat Swing should be hung over grass,
sand, wood chips, or other soft surfaces. Under no circumstances should it be hung over
concrete, asphalt, or other hard surfaces. Depending on the size and weight of the child,
the swing should have a clearance of at least 18" from the ground. The maximum fall
height should not be more than 18". Two S hooks are attached to the rope to allow for
adjustment of the rope' s length.
This swing is intended for no more than two children at any time. For ease and safety
of use, lift the child in and out of the swing while stationary.
Please be sure to examine the ropes regularly to check for wear. Rope will, in time, degrade.
If the color of the rope has become pale, frays easily, or gives off a powdery material when
rubbed between the fingers, we recommend you replace the rope. Equipment should be
hung in such a way that a distance of at least 6' is clear on either side. Can be hung on
an A-frame or swing set or on a tree limb of a diameter of at least 10"-12".
! WARNING! —Small parts for assembly by an adult.
A
2. Assemble the middle
pieces using the bolt con-
nection. Be sure the holes
for attaching the ropes are
on the outside.
1. Be sure your package
included all the parts
shown at left.
6. Attach the
5. Slip the end
eye bolts with
of the cover
the locking nuts
over the end of
through the cover
the frame.
and frame.
3. Slip the frame through the side
sleeves.
A
B
7. Slide Bolt A and Bolt B through the four holes
in the frame, being sure that both ends of Rope
A are on the same side of the boat, and those of
Rope B are on the opposite side of the boat.
hearthsong.com
Takes two adults
15 minutes to assemble.
A
B
B
