Heating Control Room Sensor
[RBT-3C or RBH-3C]
Installation Instructions
Room Sensor to replace existing wired room thermostat. Alternatively can be paired to
optional Relay Unit to allow wireless connection to the heating system / wiring centre
location. Support for up to 4 separate heating zones. Provides programmer / time clock
functionality. Requires Network OWL to operate.

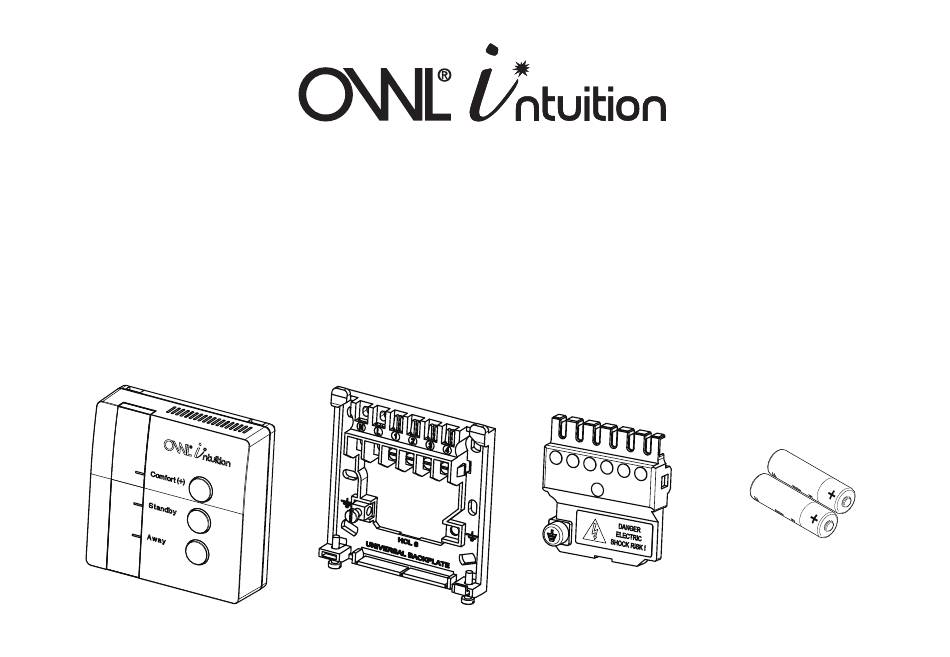

IN THE BOX:
2 x AAA
Room Sensor
Backplate
Safety Cover
alkaline battery
© 2 Save Energy Limited 2014
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intuition RBT-3C and is the answer not in the manual?

Questions and answers

Related Manuals for OWL Intuition RBT-3C

Summary of Contents for OWL Intuition RBT-3C

  • Page 1 Relay Unit to allow wireless connection to the heating system / wiring centre location. Support for up to 4 separate heating zones. Provides programmer / time clock functionality. Requires Network OWL to operate. IN THE BOX: 2 x AAA...
  • Page 2 Introduction This Room Sensor is a part of the OWL Intuition range of cloud connected monitoring and control products. Its operation is dependant upon being paired to the broadband Internet connected Network OWL (supplied separately). The Room Sensor provides both room ther- mostat and programmer / time clock functionality.

  • Page 3: Version Information

    Room Thermostat Type: Wired connection to heating system and Wireless connection to heating system - when paired to Relay Unit [RMx-6C]. Multi Heating Zone Control: A single OWL Intuition system can support up to 4 Room Sensors (one for each heating zone) in either a wired and/or wireless configuration (paired to Relay Units).

  • Page 4: Installation Instructions

    STEP THREE - Log in and follow Wizard. • If this is a new Intuition installation then you will first need to install the Network OWL (supplied separately). For full details please refer to the Network OWL installation guide supplied with that product, however a summary of the steps are listed below: Connect Ethernet cable between spare active LAN port on your broadband Inter- net router and the Network OWL.
  • Page 5 Plug the power supply into the mains and insert the DC jack connector into the base of the Network OWL. Wait until the green LED on the top of the Network OWL is flashing with a “triple blip” pattern. This should not normally take longer than 2 minutes.
  • Page 6 STEP THREE - Log in and follow Wizard • Log in to the OWL Intuition account with username and password. • If this is a new system the installation & configuration Wizard will automatically open. For existing Intuition installations you should start the Wizard by clicking the Wizard menu bar option at the top of the screen.

  • Page 7: Configure System Settings

    Heating widget within the web dashboard. STEP FOUR - Log in and Configure If you are not already, please log in to Property EPC / Energy Efficiency Rating your OWL Intuition account with your username and password at: Rating Score Description https://www.owlintuition.com...
  • Page 8 The preset heating ‘Comfort’ Time Clock 16:30 22:30 20°C settings are shown in the table opposite. These can be modified using the OWL Note: Outside of these preset heating ‘Comfort’ Intuition web dashboard. periods, the Room Sensor will be in Standby mode (15°C - configurable).
  • Page 9 OWL Intuition Web Dashboard - Heating and Time Clock widgets © 2 Save Energy Limited 2014...
  • Page 10 IMPORTANT: When you have finished making changes you must save them to your Network OWL by clicking on the “Save To Network OWL” button. STEP FIVE - Physical installation of the Room Sensor Refer to the schematics and diagram shown on pages 12, 13 & 14 for the wiring arrange- ment for a typical heating system.
  • Page 11 The signal should be at least 2 bars and preferably more. Try moving the Network OWL closer to the Room Sensor if you have a signal strength problem. Ensure there will be enough space to allow easy screwdriver access to the two cap- tive screws located at the base of the backplate.
  • Page 12 BEFORE: Typical Existing Wired Room Thermostat Installation Boiler Wiring Centre Existing wiring Room Thermostat typically located in Hall or Lounge 19:30 Programmer Room / Timer Thermostat © 2 Save Energy Limited 2014...
  • Page 13 AFTER: Typical OWL Intuition-c Wired Room Sensor Installation = Wireless Pairing OWL Intuition Broadband Boiler Router Network OWL Wiring Centre Existing wiring OWL Intuition supports up to 4 heating Option 1 - Remove OWL Intuition zones each with a wired or wireless...
  • Page 14 Mains Supply OWL Room Sensor PLEASE NOTE - The battery powered Room Sensor has a safety N L 1 2 3 4 switch fitted and will ONLY work correctly with the backplate supplied. This backplate operates the safety switch when correctly fitted.
  • Page 15 Drill and plug the wall, then secure the plate into position. The slots in the backplate will compensate for minor misalignment of the fixings. OWL Intuition-c Heating Control Room Sensor Backplate Wiring Terminal Description Neutral - Not used, may be used to ‘park’...
  • Page 16 Wiring - All necessary electrical connections should now be made. • The Room Sensor is double insulated and does not require an earth connection. • An earth connection block is provided on the backplate for terminating any cable earth conductors. •...
  • Page 17 Existing Programmer / Time Clock - any existing programmer or time clock is now redundant. You should either program it to be permanently on (24/7) or preferably remove it, ensuring that the two wires it was switching are safely electrically linked together, preferably by installing a link wire within the heating system.

  • Page 18: Additional Information

    Room Sensor will not work. Room Sensor - Delete Network OWL Pairing You can delete the Room Sensor to Network OWL pairing by pressing both the Standby and Away buttons together for a minimum of 10 seconds (count to 15). The 3 LEDs will start flashing indicating that it is in pairing mode.
  • Page 19 You can factory reset the Room Sensor by pressing both the Comfort and Standby buttons together for a minimum of 20 seconds (count to 25). The 3 LEDs will start flashing indicat- ing that it is in Network OWL pairing mode. Room Sensor - LED Meanings...

  • Page 20: Safety Information

    SAFETY INFORMATION To ensure that you use your product safely and correctly please read the warnings & safety precautions below before installing your OWL Intuition Room Sensor. • Isolate the mains power supply to the heating appliance that the Room Sensor will be connected BEFORE commencing any wiring work.

  • Page 21: Caring For Your Product

    The CE marking certifies that this product meets the main requirements of the European Parliament and Council Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request. OWL Intuition products are manufactured to ISO-9001 Quality Assurance Standards.

  • Page 22: Warranty Information

    WARRANTY INFORMATION 2 Save Energy Limited guarantees that OWL Intuition products will work for a minimum period of 24 months from date of purchase and that it will be free from defects in materials, workmanship or design. If during this limited 2 year period of guarantee, from date of purchase, you find that the equipment is not working properly, you may return it to us and we will replace, or, (at our discretion) repair it, free of charge.
  • Page 23 SPECIFICATIONS - Room Sensor [RBT-3C and RBH-3C] Case dimensions 86mm x 86mm x 37mm Case material Thermoplastic, flame retardant Case ingress protection IP30 Case electrical protection Double Insulated Radio frequency band 868MHz unlicenced ISM band Operating range Up to 50m (in free space) Power source 2 x 1.5V Alkaline AAA batteries Temperature accuracy - typical [RBT-3C]...

  • Page 24: Customer Support

    For details on using your new OWL Intuition heating controls, please download the Heating & Hot Water Controls User Manual document by clicking on Manuals (web dashboard - lower right). Customer Support If you have any further questions please check our frequently asked questions at: https://theowl.zendesk.com...
