OWL RBT-3C Installation Instructions Manual

Room sensor
Hide thumbs Also See for RBT-3C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Instruction and Installation Manual
Room Sensor [RBT-3C]
Installation Instructions
Room Sensor to replace existing wired room thermostat. Provides pro-
grammer / time clock functionality. Requires Network OWL to operate.
2 x AAA
Room Sensor
Backplate
Safety Cover
alkaline battery
© 2 Save Energy Limited 2012
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBT-3C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OWL RBT-3C

Summary of Contents for OWL RBT-3C

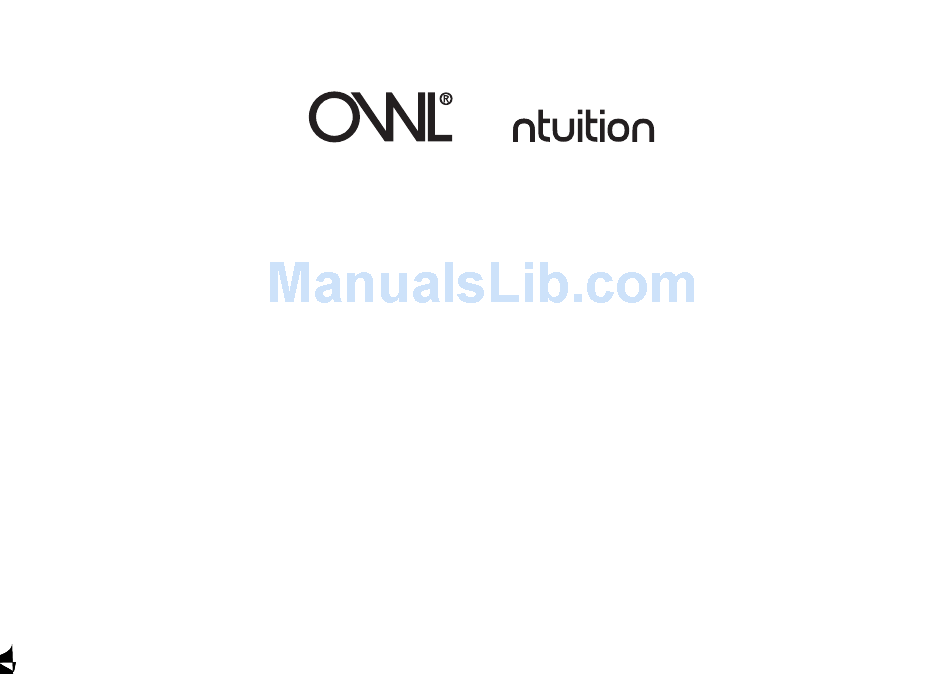

  • Page 1 Room Sensor [RBT-3C] Installation Instructions Room Sensor to replace existing wired room thermostat. Provides pro- grammer / time clock functionality. Requires Network OWL to operate. 2 x AAA Room Sensor Backplate Safety Cover alkaline battery © 2 Save Energy Limited 2012...
  • Page 2 Introduction This Room Sensor is a part of the OWL Intuition range of cloud connected monitoring and control products. Its operation is dependant upon being paired to the broadband Internet connected Network OWL (supplied separately). This version of the Room Sensor is designed for use with a Combi boiler with existing wir- ing to the Room Sensor location (see Installation Instructions).

  • Page 3: Installation Instructions

    (this is a secure connection). You will then see the OWL Intuition web dashboard. Click on the Devices menu. The Network OWL will appear in the list of devices. Click on Network OWL image to open a new window. If an upgrade is required, an Update Device button will be visible.
  • Page 4 LEDs on the Room Sensor will stop flashing indicating that it is now paired to the Network OWL. Now wait until the Network OWL is connected to the OWL servers (the top green LED should be flashing in a “triple blip pattern”).
  • Page 5 The Heating Time Clock defines the periods during which the home is automatically heated and to what temperature. These periods are called Comfort Periods. OWL In- tuition will intelligently calculate what time to switch the boiler on and off to maintain the target temperature for the whole of the Comfort Period.
  • Page 6 When you are happy with your changes you can use the Copy Current Day feature to quickly duplicate to other days. IMPORTANT: When you have finished making changes you must save them to your Network OWL by clicking on the “Save To Network OWL” button. © 2 Save Energy Limited 2012...
  • Page 7 Preset Heating ‘Comfort’ Time Clock Settings Monday to Friday Start Time End Time Temperature 07:00 08:30 18°C 16:30 22:30 20°C Saturday & Sunday Start Time End Time Temperature 07:30 10:00 18°C 16:30 22:30 20°C Note: Outside of these preset heating ‘Comfort’ periods, the Room Sensor will be in Standby mode (15°C - configurable).
  • Page 8 OWL Intuition Web Dashboard - Heating and Time Clock widgets © 2 Save Energy Limited 2012...

  • Page 9: Electrical Connections

    Heat- ing widget. The signal should be at least 2 bars and preferably more. Try moving the Network OWL closer to the Room Sensor if you have a signal strength problem. Ensure there will be enough space to allow easy screwdriver access to the two cap- tive screws located at the base of the backplate.
  • Page 10 and plug the wall, then secure the plate into position. The slots in the backplate will compensate for minor misalignment of the fixings. Wiring - All necessary electrical connections should now be made. • The Room Sensor is double insulated and does not require an earth connec- tion.
  • Page 11 Mains Supply OWL Room Sensor N L 1 2 3 4 Green/Yellow Supply Supply Remove Link Return Boiler Typical Combi Boiler System External Programmer OWL Intuition-c Room Sensor Wiring Connections © 2 Save Energy Limited 2012...
  • Page 12 Fit Safety Cover - Check all of the wiring is safely attached to the appropriate back- plate terminals and the screws are tight. Then fit the Safety Cover by clipping it into place over the wiring terminals. Complete the installation by mounting the Room Sensor to the backplate. To do this engage the Room Sensor on the lugs at the top of the backplate, then carefully swing the Room Sensor down and push it carefully back into its plug-in terminal connectors.

  • Page 13: Additional Installation Information

    You can factory reset the Room Sensor by pressing both the Standby and Away buttons together for a minimum of 10 seconds. The 3 LEDs will start flashing indicating that it is in pairing mode. Refer to Getting Started with OWL Intuition Network Gateway guide if you need to factory reset the Network OWL.
  • Page 14 Boiler Existing wiring Room Thermostat typically located in Hall or Lounge 19:30 Programmer Wireless Room / Timer Thermostat © 2 Save Energy Limited 2012...
  • Page 15 BEFORE: Typical Existing Combi Boiler Installation OPTIONAL Energy Monitor Transmitter OWL Intuition Energy OWL Intuition Monitor Broadband Transmitter Router Network OWL Boiler Existing wiring OBxE-B OPTIONAL Occupancy Sensor Option 1 - Remove existing OWL Intuition OWL Intuition Programmer / Timer and Comfort (+) link inputs.

  • Page 16: Customer Support

    You can also email us at: customer.services@theowl.com (please ensure you state your Network OWL MAC ID) 2 Save Energy Limited operate a policy of continuous development and improvement, therefore the content of this document is subject to change without notice.
