last updated: 2007-11-16
OPERATING MANUAL

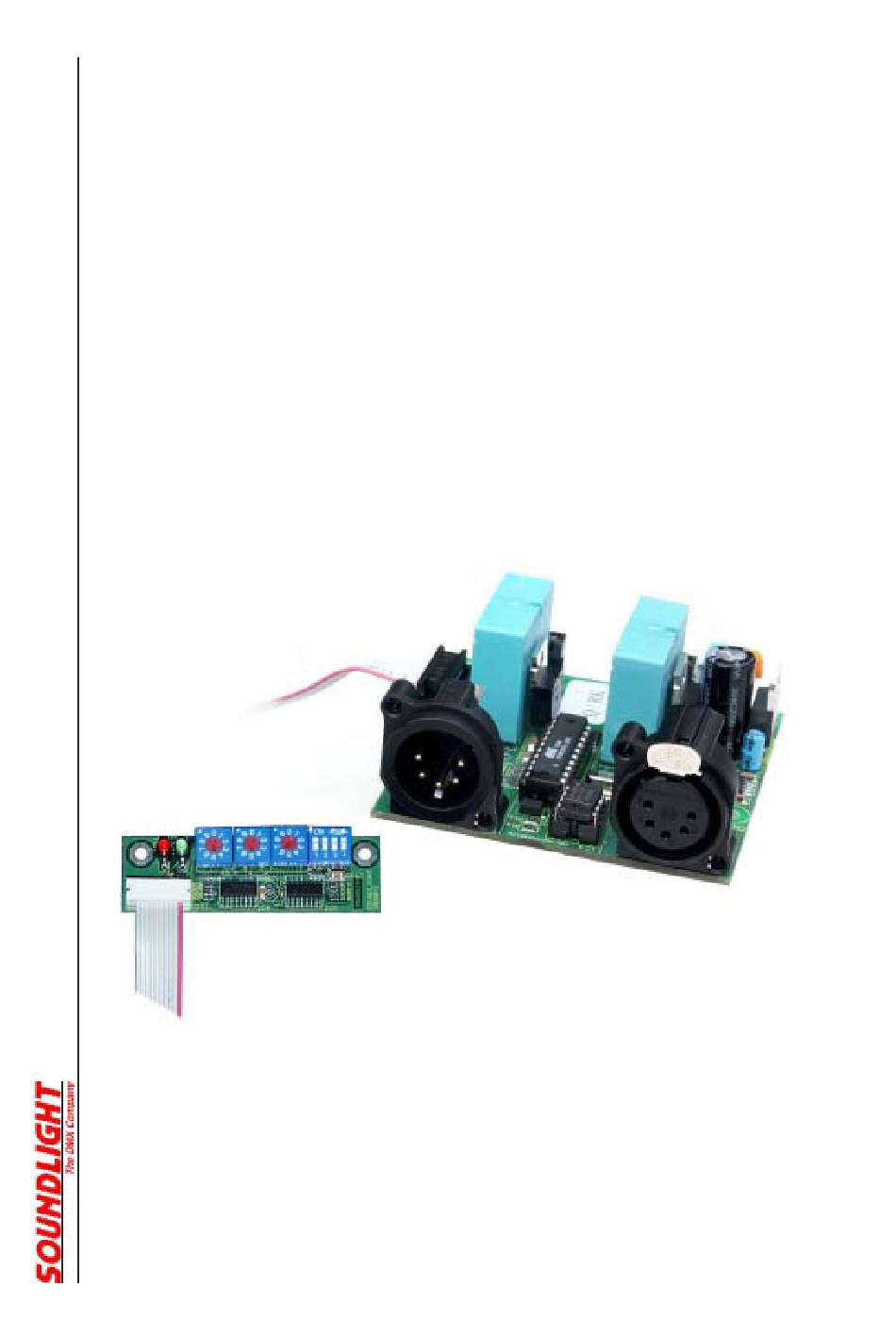

DMX Relay Card 3202R Mk6
(C) SOUNDLIGHT 1996-2007 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE REPRODUCED,
DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER * ALL
STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND ARE BELIEVED TO BE
ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBILITY FOR ERRORS OR
OMISSIONS. * THE USER HAS TO CHECK THE SUITABILITY OF THE EQUIPMENT FOR THE INTENDED USE.
SOUNDLIGHT EXPRESSLY EXCLUDES ANY RESPONSIBILITY FOR DAMAGES - DIRECT OR INDIRECT - WHICH
MAY OCCUR DUE TO MISUSE, UNPROPER INSTALLATION, WRONG OPERATING CONDITIONS AND NON-
COMPLIANCE TO THE INSTRUMENT'S INSTRUCTIONS, AS WELL AS IGNORANCE OF EXISTING SAFETY
REGULATIONS.
SOUNDLIGHT The DMX Company Bennigser Strasse 1 D-30974 Wennigsen Tel. 05045-912 93-11
Advertisement
Table of Contents
Related Manuals for SOUNDLIGHT 3202R Mk6
Summary of Contents for SOUNDLIGHT 3202R Mk6
- Page 1 OPERATING MANUAL DMX Relay Card 3202R Mk6 (C) SOUNDLIGHT 1996-2007 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE REPRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER * ALL STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND ARE BELIEVED TO BE ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBILITY FOR ERRORS OR OMISSIONS.
-
Page 2: Installation

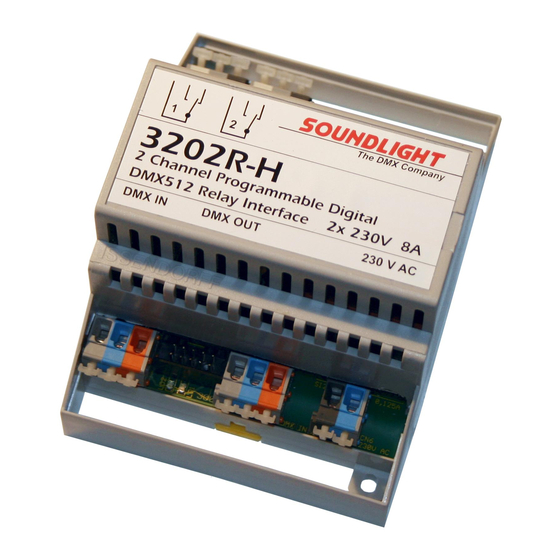

Thank you for choosing a SOUNDLIGHT device. The SOUNDLIGHT DMX Relay Card 3202R is an intelligent DMX demultiplexer decoding digital data complying with standards USITT DMX512 and DIN 56930-2. The card drive two contact relay outputs. The card can be used with all standard light control systems. -
Page 3: Dmx Input / Output
DMX INPUT / OUTPUT Connection to the DMX512 data line is by 5-pin onboard XLR connectors, as defined in the standards document. For pin assignment see below. DMX INPUT (male) DMX - DMX + not connected, thru-wired to Pin 4 DMX OUT not connected, thru-wired to Pin 5 DMX OUT DMX OUTPUT (female) -
Page 4: Signal Indicators
SIGNAL INDICATORS The state of the demultiplexer card is signalled with two indicator LEDs. green: OPERATION (blinking) red: ERROR (blinking) Error blinking at data errors or loss of communication. START ADDRESS SWITCHES The three decimal coding switches set the start address, that is the address of the first channel to be decoded. The setting is fully decimal, no binary conversion is necessary as is with DIL switches. -
Page 5: Technical Data
RELAY TYPES The card can be equipped with a variety of different contact relays. Catalog models include the 3002R-EP6 with 6A changeover contacts, and the 3202R-EP16 with 16A heavy duty relays. Please note that all current data are given for resistive load only. Switching of inductive loads requires application of a suitable degradation factor - see note below or refer to relay manufacturer's data sheet. -
Page 6: Fcc Statement
The warranty is limited to repair or exchange of the hardware product; no further liability is assumed. SOUNDLIGHT is not responsible for damages or for loss of data, sales or profit which arise from usage or breakdown of the hardware product. In germany, SOUNDLIGHT will repair or replace established defects in hardware, provided that the defective part is sent in, freight paid, through the responsible dealer along with warranty card and/or sales receipt prior to expiration of warranty. -
Page 7: Additional Notes
(Reg Nr. DE58883929). INTERNET-HOTLINE Please check our internet domain http://www.soundlight.de for new versions, updates etc. If you have any comments which may be worth considering, please send a message to support@soundlight.de. We will check your message and reply accordingly.
