last updated: 2018-09-11

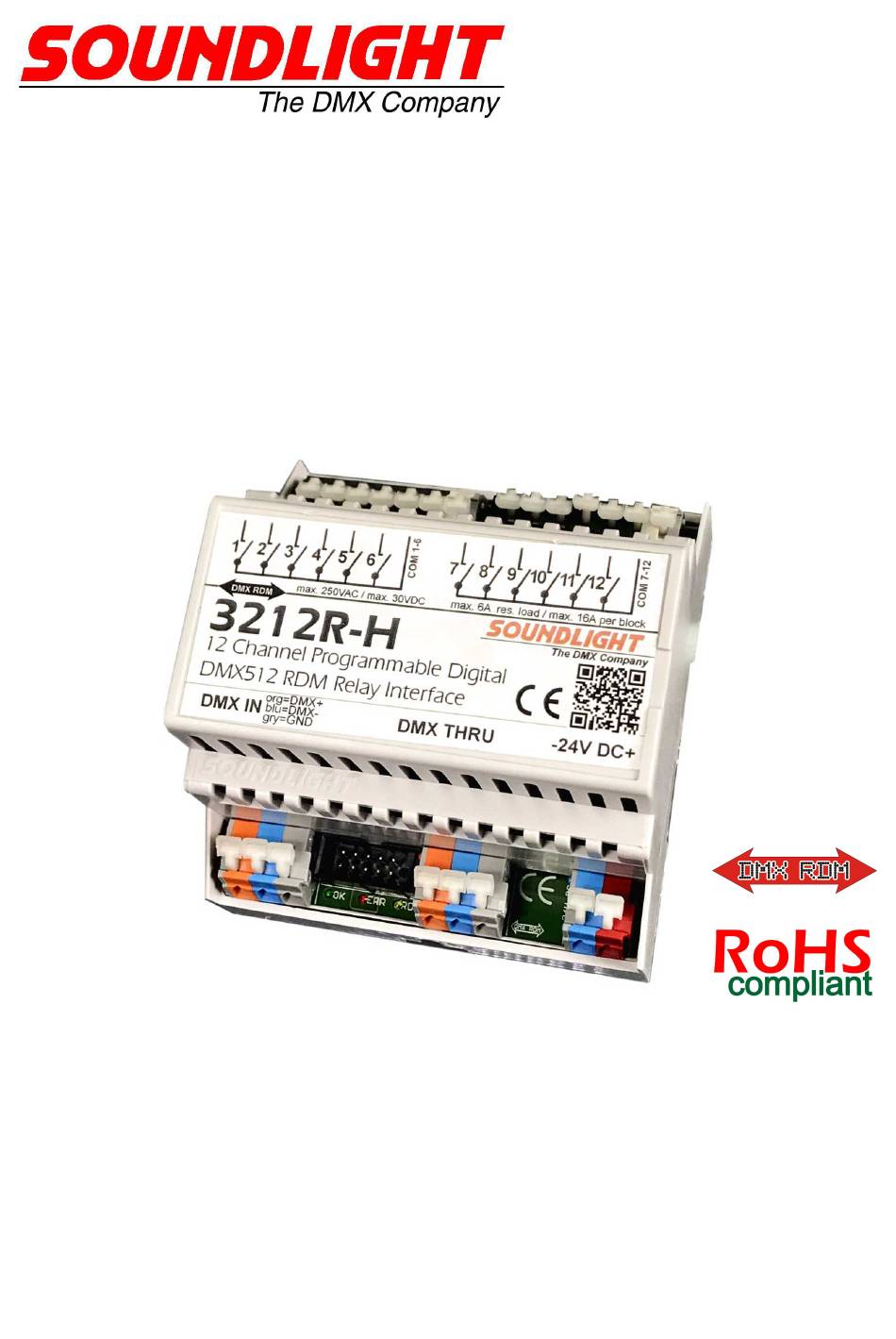

OPERATING MANUAL
DMX Relay 3212R-H
Version Mk1
(C) SOUNDLIGHT 1996-2018 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE-
PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF
THE OWNER *
ALL STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND
ARE BELIEVED TO BE ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBI-
LITY FOR ERRORS OR OMISSIONS. * THE USER HAS TO CHECK THE SUITABILITY OF THE EQUIP-
MENT FOR THE INTENDED USE. SOUNDLIGHT EXPRESSLY EXCLUDES ANY RESPONSIBILITY FOR
DAMAGES - DIRECT OR INDIRECT - WHICH MAY OCCUR DUE TO MISUSE, UNPROPER INSTALLA-
TION, WRONG OPERATING CONDITIONS AND NON-COMPLIANCE TO THE INSTRUMENT'S INSTRU-
CTIONS, AS WELL AS DISREGARD OF EXISTING SAFETY STANDARDS AND REGULATIONS.
SOUNDLIGHT
Bennigser Str.1 D-30974 Wennigsen Tel. 05045-91293-11
The DMX Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3212R-H and is the answer not in the manual?

Questions and answers

Related Manuals for SOUNDLIGHT 3212R-H

Summary of Contents for SOUNDLIGHT 3212R-H

  • Page 1 OPERATING MANUAL DMX Relay 3212R-H Version Mk1 (C) SOUNDLIGHT 1996-2018 * ALL RIGHTS RESERVED * NO PART OF THIS MANUAL MAY BE RE- PRODUCED, DUPLICATED OR USED COMMERCIALLY WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER * ALL STATEMENTS WITHIN THIS MANUAL HAVE BEEN CHECKED CAREFULLY AND ARE BELIEVED TO BE ACCURATE, HOWEVER SOUNDLIGHT DOES NOT ASSUME ANY RESPONSIBI- LITY FOR ERRORS OR OMISSIONS.
  • Page 2 The SOUNDLIGHT 3212R-H is a cost-effective solution for many purposes. Features The DMX Relay 3212R-H is a relay module to be mounted on standard 35mm DIN rail. The DMX relay can be configured via DMX using a full featured DMX RDM controller. No additional accesso- ries are needed.
  • Page 3 Applications include remot control operations (e.g. smoke machine, bells, contacts, audio recor- ders, door openers, halogen lamps, mirror balls etc). The 3212R-H is a universal tool for stage, tv and theatre, as well as live acts. When actions have to be triggers by DMX, the 3212R-H comes in handy.

  • Page 4: Power Supply

    NO (Normally Open) 6 Relays per block (1...6, 7...12) are routed to one common each. Signal Indicators The status of the 3212R-H module is signalled with three indicator LEDs. green: A vaild DMX control signal is present. red: ERROR...

  • Page 5: Dip Switch Settings

    The start address board 3000P makes use of decimal switches to set the address, and of DIP-Swit- sches to set personalty and HOLD mode. Address seting is straightforward: Hundreds Tens Ones IMPORTANT NOTICE: It may take some se- conds to check and verify the received switch data.

  • Page 6: Technical Data

    DIN 56930-2, DMX512/1990, ANSI E1-11 DMX512-A, ANSI E1-20 DMX RDM, ANSI E1-37 DMX IN: 1 Unit Load DMX OUT: fed thru Switch Out: max. 6A @ 230V resistive load Operating Temperature: 0...50C Storage Temperature: -10...+70°C Weight: 192g Order Code.: 3212R-H *=no address board connected...
  • Page 7 DMX RDM The decoder 3212R-H is fully compliant to DMX RDM standard 1.0. The devive will be recognized as "DMX Relay" withing category „RELAY_MECHANICAL“ and can be configured to multiple per- sonalities (modes of operation). Table of RDM Functions...
  • Page 8 LED blinking four times alternatively. Selecting the DMX Personality via RDM (Screenshot from JESE Get/Set Software) The 3212R-H consists of a integrated sensor for power sup- ply monitoring. (Screenshot from JESE Get/Set Software) More RDM Functions Please check our RDM-Website (http://www.rdm.soundlight.de) for more information, or down-...

  • Page 9: Limited Warranty

    The warranty is limited to repair or exchange of the hardware product; no further liability is assumed. SOUNDLIGHT is not responsible for damages or for loss of data, sales or profit which arise from usage or breakdown of the hardware product. In...
  • Page 10 SOUNDLIGHT is a WEEE registered company (Reg No. DE58883929). Service There are no parts within the DMX relais card 3212R-H which require the user's attention. Should your unit require servicing, please send it to the factory, freight paid. Accessories Setting the DMX start address, the DMX personality, or the DMX HOLD mode and other parame- ters requires a suitable DMX RDM controller or a start address board.
